Pacific Power 3210AGX | AC & DC Load/Power Supply | 21 kVA

21 kVA

The Pacific Power AGX Series is a 3-in-1 grid simulator, AC & DC load, and AC & DC power supply. The 3210AGX has a 21 kVA power output and a wide frequency range from 15 Hz to 1200 Hz, making it ideal for avionics and defense applications requring 400 Hz steady state frequency as well as 360 Hz - 800 Hz wild frequency ranges. It is a fully regenerative solution with 3 phases, 4 quadrants, and 6 output configurations.

The 3210AGX is suitable for the following avionics test standards: ABD0100.1.8, ABD0100.1.8.1, AMD24C, Boeing 787B3-0147, DO-160 Section 16, MIL-STD-704, and MIL-STD-1399-300.

Product Info Available Add-Ons Related Compliance Standards Related Products

Parameters	Specifications
Output Phase Modes	1, 2, or 3
Rated Power AC/DC Mode	21 kW/kVA
Frequency Range	15 Hz – 1200 Hz

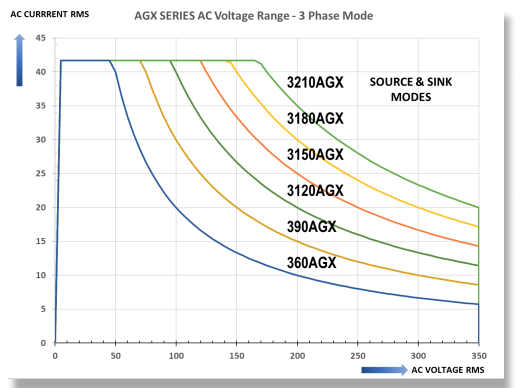

Voltage Range	0 – 350 VAC / 0 – 500 Vdc

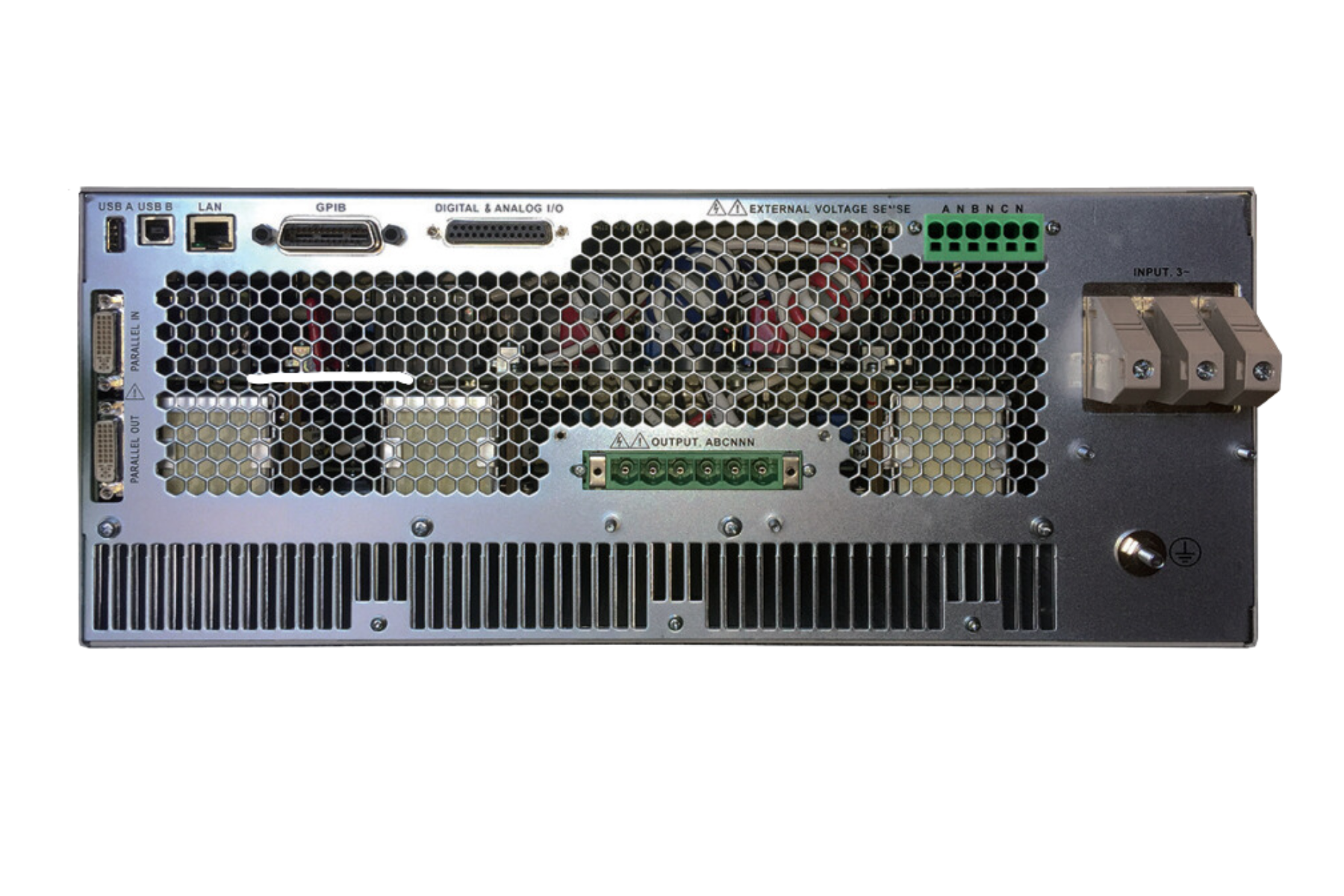

AC Input Range	380 VAC – 480 VAC ± 10%, 4 Wire, L1, L2, L3, and PE
AC Input Frequency	47 – 63 Hz

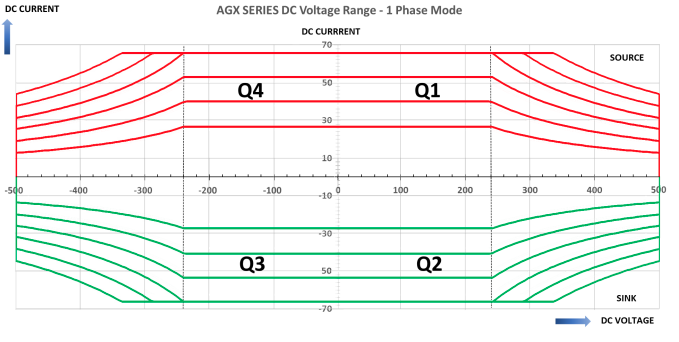

DC Output Current Range	21.0 ADC (3 & 2 Phase), 62.5 ADC (1 Phase)
Display	Full color, touch LCD display with soft key menus 4.3" diagonal 480 x 272 pixels
Dimensions (H x W x L)	7" x 17" x 25" 178 x 432 x 635 mm
Weight	110 lb. 50.4 kg

3-in-1 grid simulator, power source, and load
4 quadrants
Fully regenerative
21 kVA power output
High frequency range of 15 Hz – 1200 Hz
Parallelable up to 168 kVA/kW (single cabinet) or 252 kVA/kW (multiple cabinets)

IEC Test Suite including
- IEC 61000-4-11
- IEC 61000-4-14
- IEC 61000-4-17
- IEC 61000-4-27
- IEC 61000-4-28
- IEC 61000-4- 29
- IEC 61000-4-34
- IEC 61000-4-13 (Option C)
MIL-STD 1399-300B & -300-1 - US
DoD, Shipboard Power, AC Power Groups
IEEE 1547.1-2020
Semi-F47-0706
KS C 9610-4-11, KS C 9610-4-29
ABD0100.1.8 - Airbus A380, AC & DC Power Groups
ABD0100.1.8.1 - Airbus A350, AC & DC Power Groups
AMD24C - Airbus A400M, AC & DC Power Groups
Boeing 787B3-0147 - B787, AC & DC Power Groups
MIL-STD704 - US DoD, AC & DC Power Groups
RTCA-DO160 Section 16, AC & DC Power Groups
