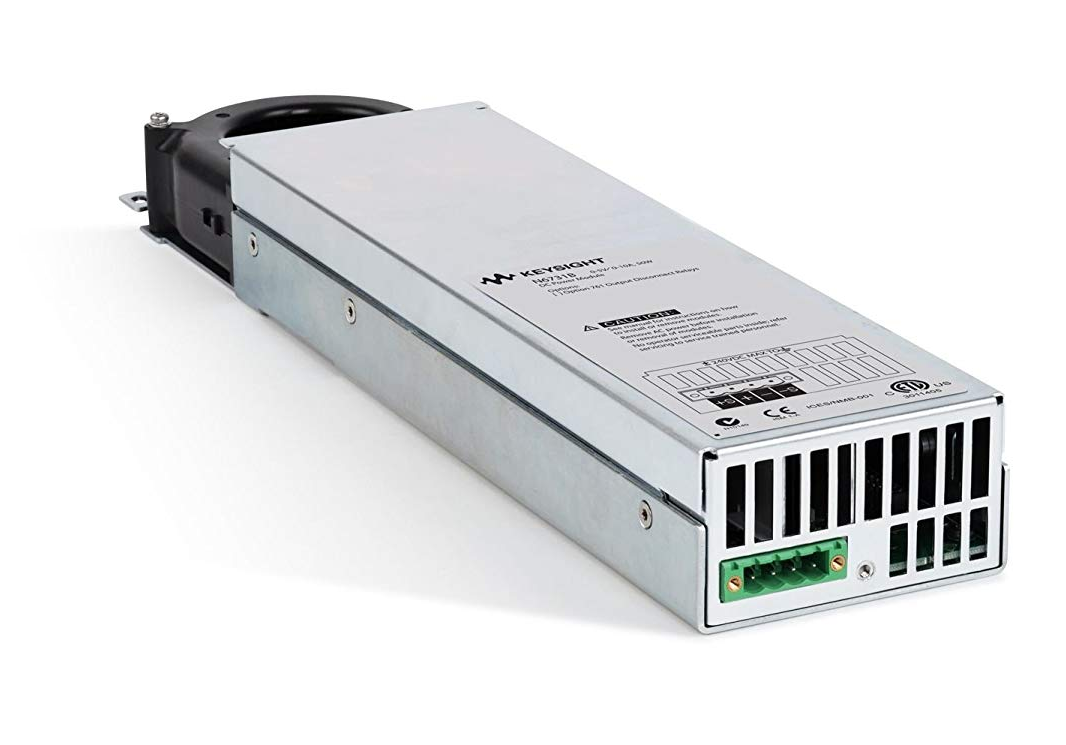

Keysight N6731B DC Power Module

5V, 10A, 50W

The Keysight N6731B can be used in either the N6700 Modular Power System or N6705 DC Power Analyzer as a 50 W programmable DC power module. This device offers a wide variety of measurement and protection features that allow the module to safely power DUTs and ATE system resources.

Product Info

Output Ratings	Voltage: 5 V
	Current: 10 A
	Power: 50 W
Programming Accuracy (at 23°C ±5°C)	Voltage: 0.1% + 19 mV
Programming Accuracy (at 23°C ±5°C)	Current: 0.15% + 20 mA
Ripple & Noise (20 Hz to 20 MHz)	Voltage rms: 2 mV
	Voltage peak-to-peak: 10 mV
	Current rms: 8 mA

Small size: up to four outputs in 1U of rack space
Flexible, modular system: Lets you mix and match power levels and performance levels to optimize your investment
Performance modules for critical test requirements
Value modules for basic DC power requirements
Fast command processing time and output speed to improve throughput
Connect via GPIB, LAN, or USB
Fully compliant to LXI Class C specification

Ideal for ATE systems in R&D, design validation, and manufacturing

SKU: AGIL-N6731B
