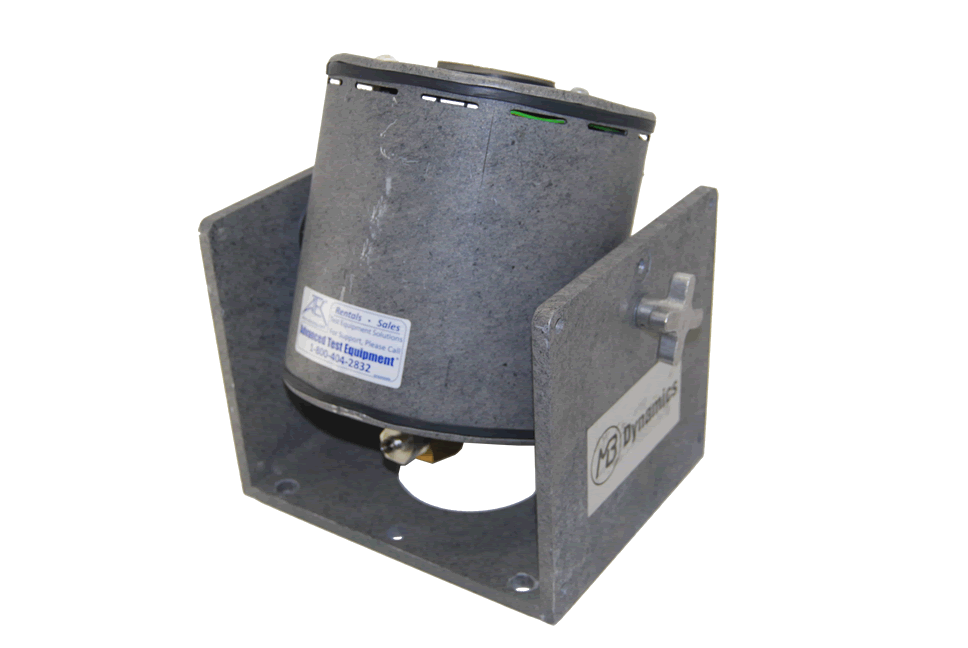

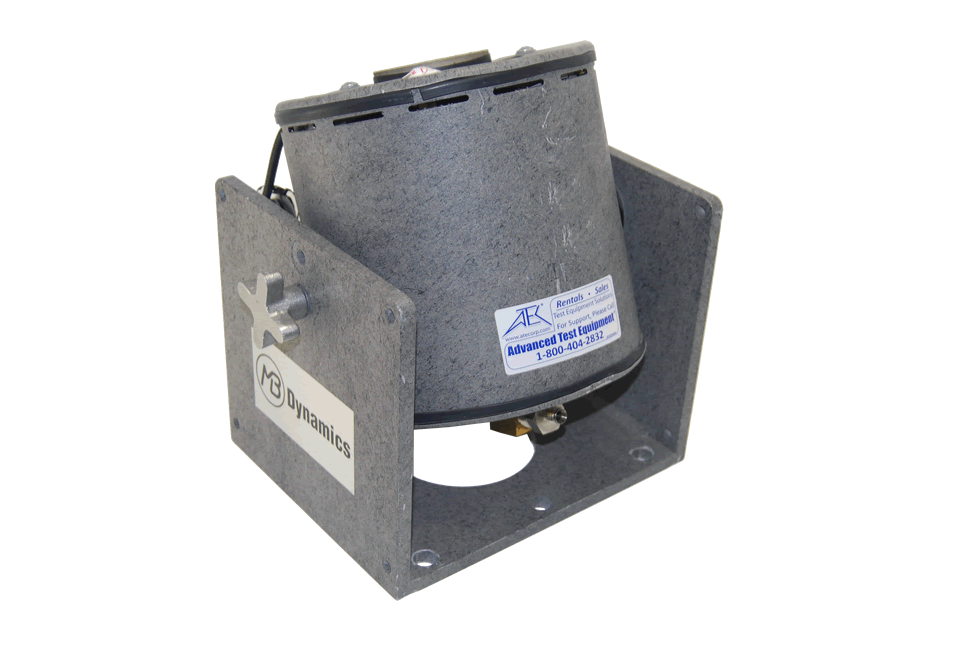

MB Dynamics PM50A Shaker
Enlarge Image
MB Dynamics PM50A Shaker MB Dynamics PM50A Shaker
MB Dynamics PM50A
Request Quote Print Page
PM50A Datasheet
The MB Dynamics PM50A Shaker uses permanent magnet technology and the voice coil principle to create vibration. This general-purpose shaker is heavy duty, industrial-quality piece of equipment with a proven track record of lasting ten, fifteen, even over twenty years in demanding applications. The PM50A Shaker has ½" stroke and a 2.7" diameter mounting table.
MB Dynamics PM50A Specs
Mounting Surface Bolt Holes Six 10-32 threaded holes at 60° on 2.25" bolt circle (+ center)
Moving Element Diameter 2.70"
Base Footprint 10" x 7.5"
Body Diameter 7"
Height (to table top) 9½"
Moving Element Axial Resonance 8000 Hz
Weight, Moving Element 8000 Hz
Weight, Moving Element 0.62 pounds
Weight, Exciter 55 pounds
Weight, Base 11 pounds
Base Type 2-position Rigid
Cooling Connections 0.5" NPT
Trunnion Base optional
