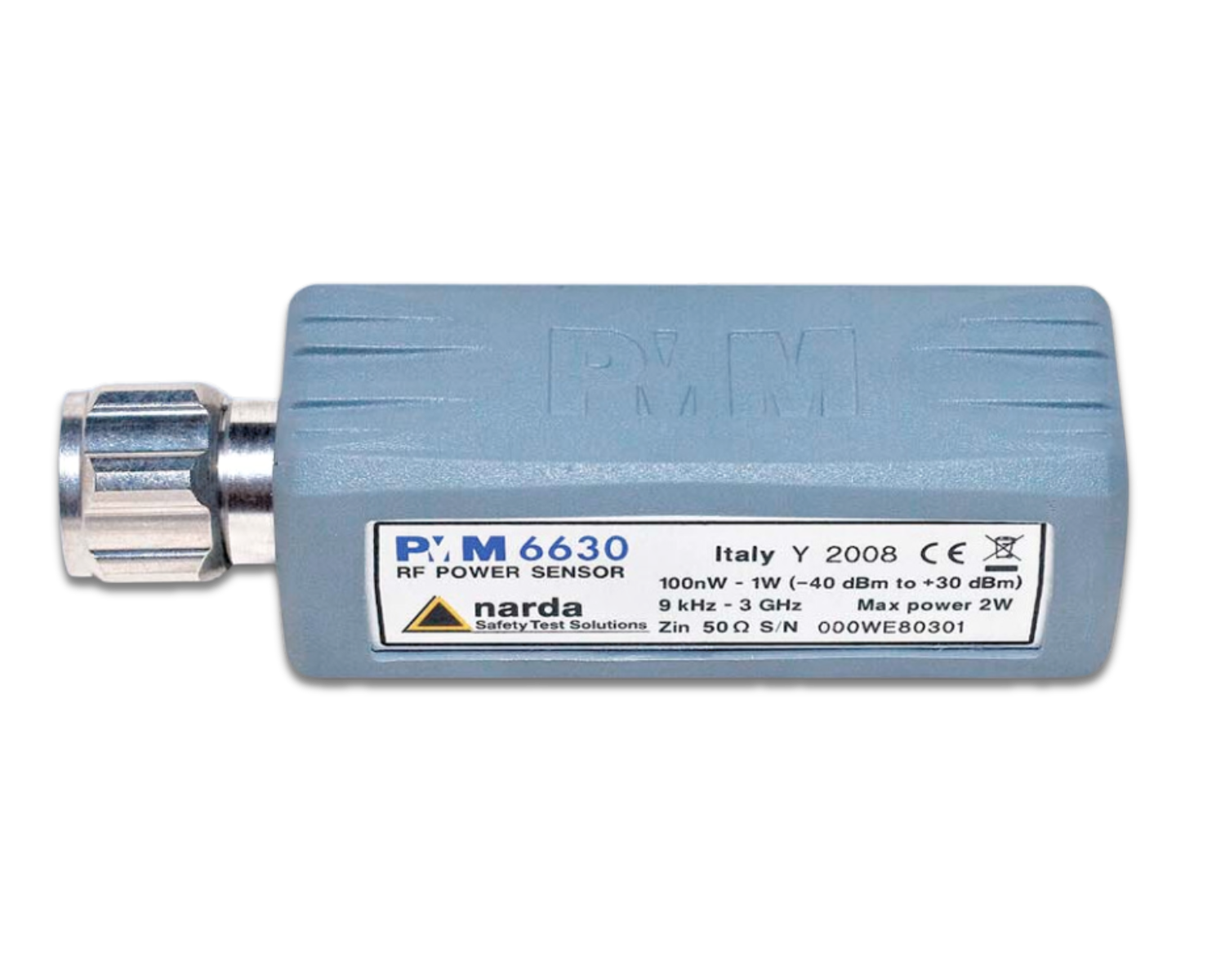

| Frequency range |
9 kHz to 3 GHz |
| Power measurement range |
100 nW to 1 W
-40 to +30 dBm |
| Max. input power |
2 W peak envelope max. 300 ms |
| Power linearity |
0.2 dB (-40 to +30 dBm @ 50 MHz; 25 °C ± 10°C) |
| Measurement accuracy |
< 0.35 dB |
| Measurement path |
High: +30 to -9 dBm
Low: -9 to -40 dBm
1 dB typ. switching point hysteresis |
| Max. SWR |
1.10 10 ÷ 300 kHz, +30 ÷ -9 dBm
1.05 >300 kHz ÷ 100 MHz
1.10 >100 MHz ÷ 1 GHz
1.25 >1 GHz ÷ 3 GHz
1.20 10 kHz ÷ 3 GHz, -9 ÷ -40 dBm |
| Operating temperature |
-10°C ÷ +50°C |
| Power supply |
5 VDC - 100 mA from USB port |
| RF connector |
N male, 50 Ω |
| PC communication interface |
USB 1.0 – 1.1 – 2.0 |
| PC software |
WIN6630 utility (supplied) |
| PC Software settings |
N° of Averages (1 to 1024)
Offset
Correction Factor |
| Measuring units |
dBm, W, and Vrms |
| Dimensions |
30 x 30 x 95 mm (WxHxP) |
| Weight |
0.12 kg |
