Bird 4421 Multifunction Power Meter

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Bird 4421 Multifunction Power Meter
Enlarge Image

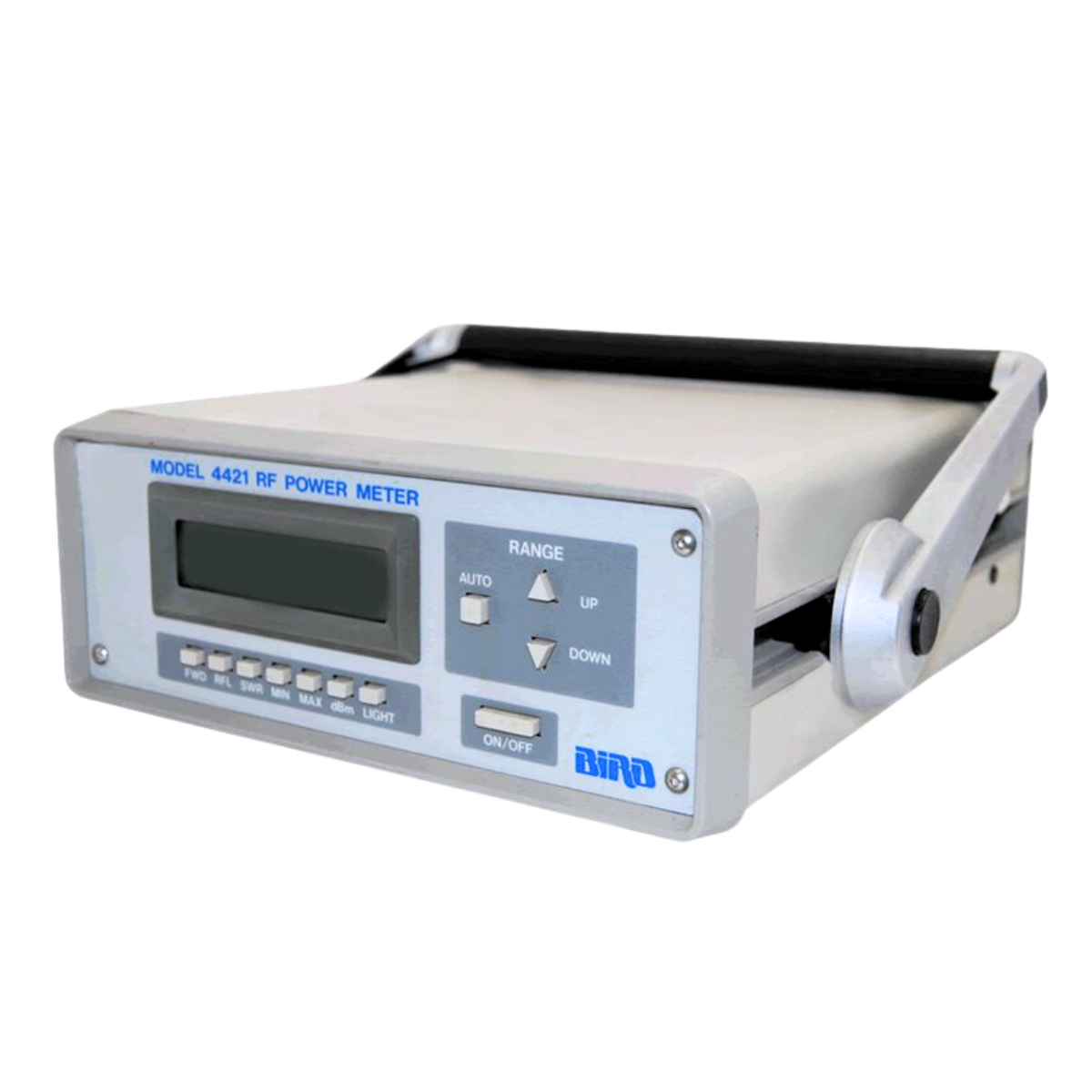

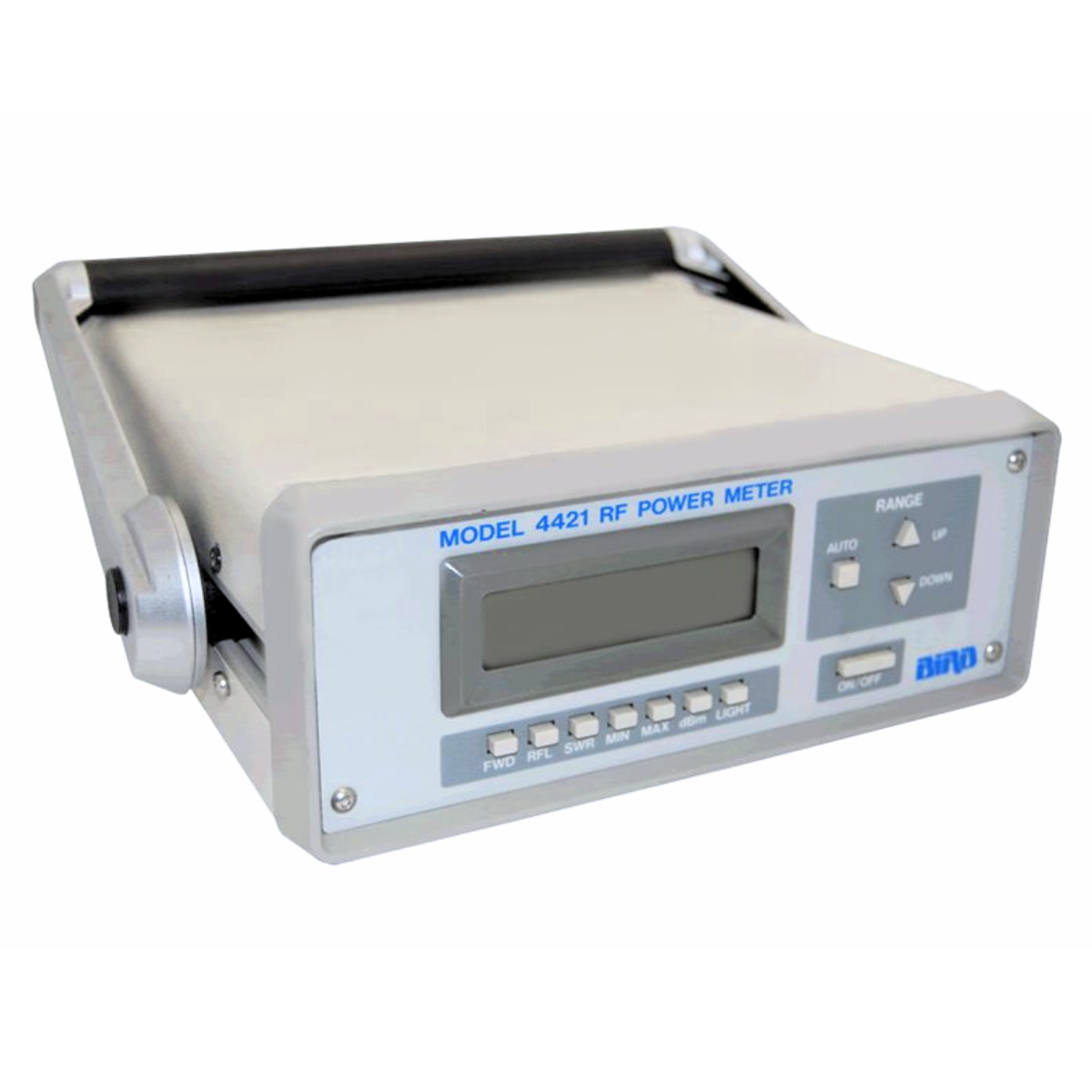

Bird 4421 Multifunction Power Meter Bird 4421 Multifunction Power Meter
Bird Technologies 4421
Request Quote Print Page
Manual 4421 Datasheet Specifications Supplemental Document
The 4421 Multifunction Power Meter is a precision RF instrument that, while originally intended for general purpose laboratory applications where high accuracy is required, has found wide acceptance in semiconductor processing applications. The product is configured as a system, consisting of the 4421 and a precision power sensor selected for the application based upon maximum power and operating frequency.
Bird Technologies 4421 Features
  • ±1% Accuracy - Accomplished through the use of sensors with an automatic frequency compensation scheme, where the error contributions due to directional coupler frequency response characteristics are eliminated
  • Wide Dynamic Range - The instrument will meet the full accuracy specification over a 35 dB dynamic range
  • Excellent Measurement Repeatability - Typically <0.1%
  • Digital Display - Along with automatic VSWR calculation
  • Computer Interface - RS-232 and IEEE-488 standard
Bird Technologies 4421 Specs
Power Range 100 mW - 25 kW FS
Frequency Range 100 kHz - 1 GHz
VSWR Range 1.0 - 199.9
Functions Forward and reflected power in W or dBm, VSWR, return loss in dB and min./max. values
Over range Audible warning when RF power input exceeds 120% of sensor's maximum power range
Indication Display 3-1/2 digit-liquid crystal display with indicator for mode, measurement units, battery condition, programming status, and trend arrows. Switchable backlight
Operating Power 115/230 VAC, 50/60 Hz or 8 nickel cadmium 1.2 V cells (NEDA type 10014)
Nominal Size
L x W x H [inches (mm)]
12-9/32 x 12-5/32 x 4-1/4 (312 x 309 x 108 mm) with handle extended 15 7/16 L (392 mm)
Weight 11 lbs (5 kg.)
Interconnects 1 meter latch-n-lock coiled cable
Dimensions 4-1/2" x 6-1/2" (114 x 165 mm)
