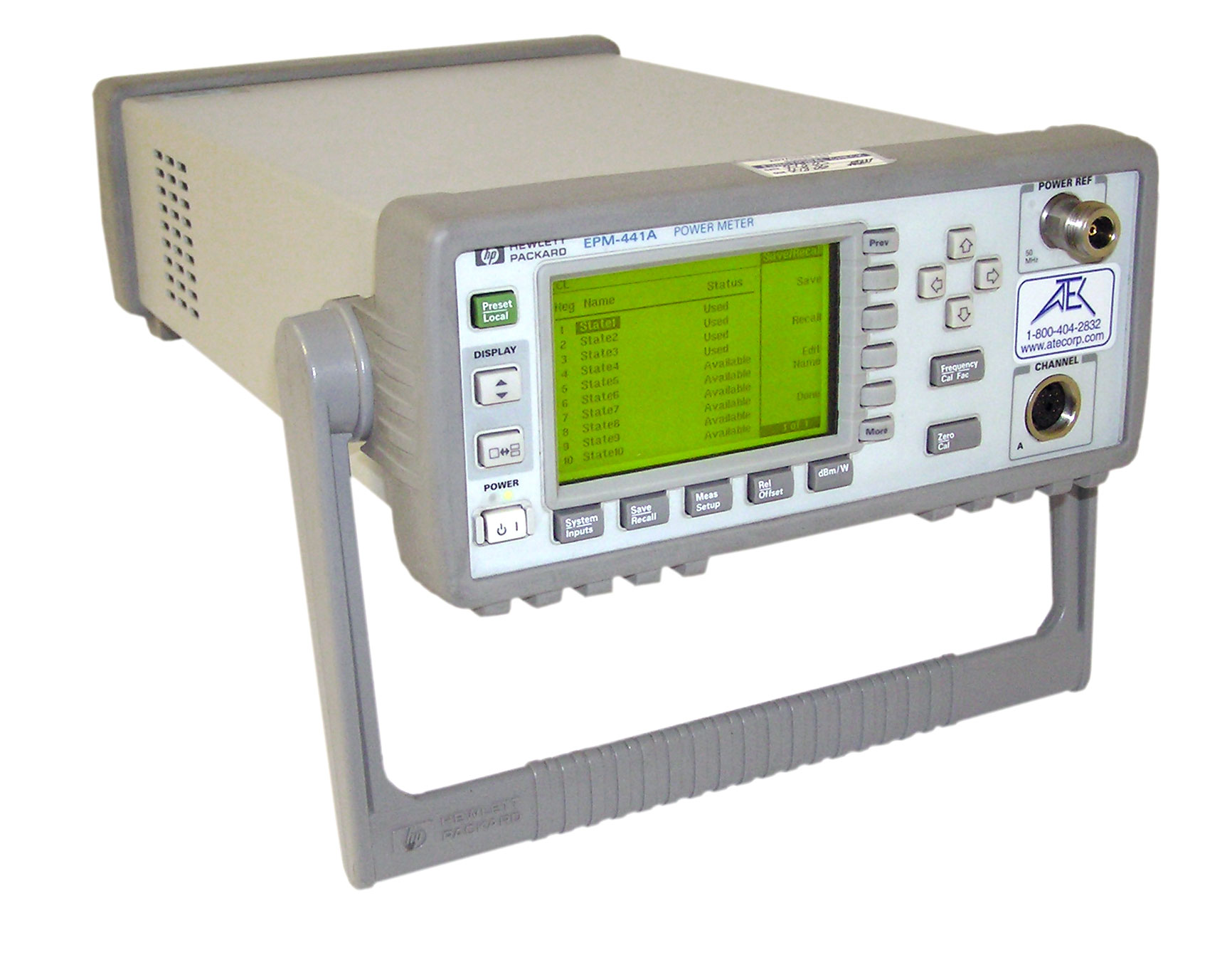

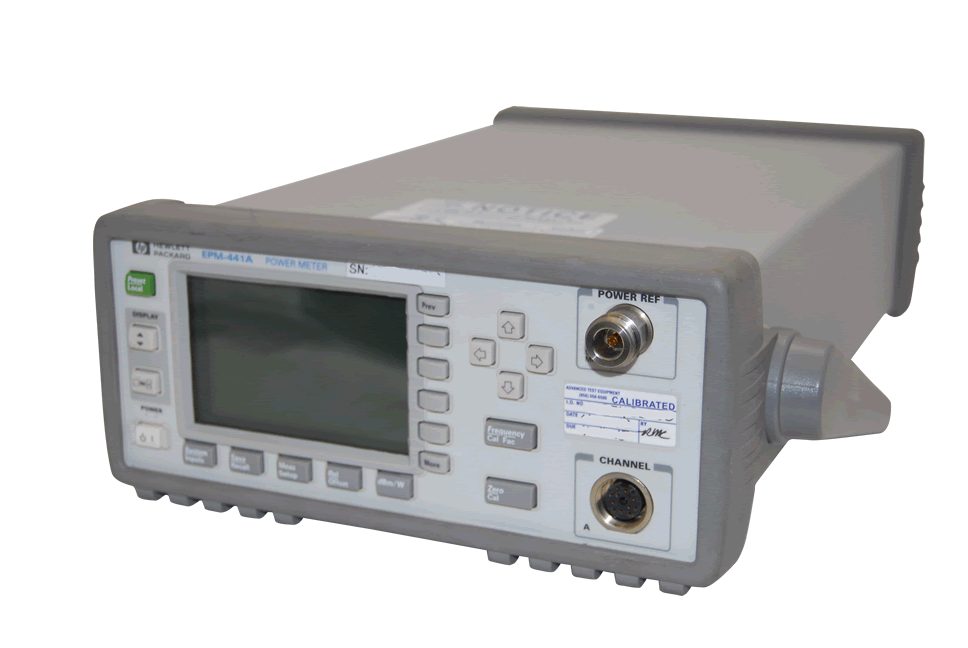

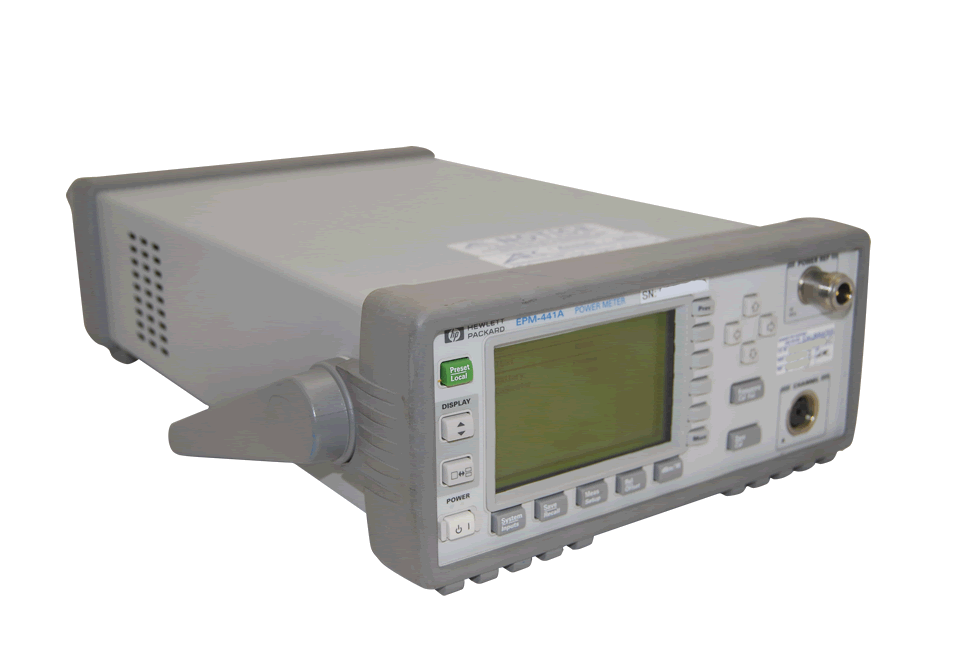

Keysight EPM-441A Single- Channel Power Meter

EPM-441A Single- Channel Power Meter
Enlarge Image
EPM-441A Single- Channel Power Meter EPM-441A Single- Channel Power Meter
Keysight EPM-441A
Request Quote Print Page
Manual

The EMP-441A power meter is a high performance single channel power meter. Sensor dependent, it can measure from -70dBm to +44dB at frequencies up to 110GHz.


Keysight EPM-441A Features
  • Fully compatible with the HP 8480 series of power sensors and the ECP
  • Designed for bench and automatic test equipment (ATE) use, the EPM-441A
  • up to 200 readings per second with ECP series sensors
  • Frequency Range: 100KHz to 50GHz and 75GHz to 110GHz, sensor dependent
  • Power Range: -70dBm to +44dBm (100pW to 25W), sensor dependent
  • Single Sensor Dynamic Range
  • mode, or 1 to 4 digits in linear mod
Keysight EPM-441A Specs
Frequency Range 100KHz - 110GHz
Interfaces/Other 0.5%
Min/Max Display Resolution 1.0dB - 0.001dB
Min/Max Power -70dBm
44dBm
Type Power Meter
Display Units:. Absolute: Watts or dBm.
Relative: Percent or dB.
Display Resolution: Selectable resolution of 1.0, 0.1, 0.01 and 0.001dB in log.
Default Resolution: 0.01dB in log mode, 3 digits in linear mode.
Power Reference – Power Output: 1.00mW (0.0dBm).
