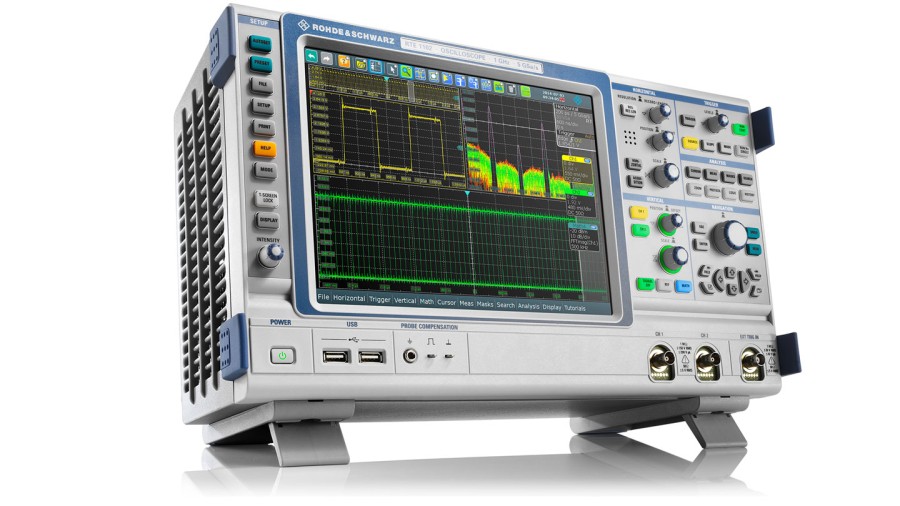

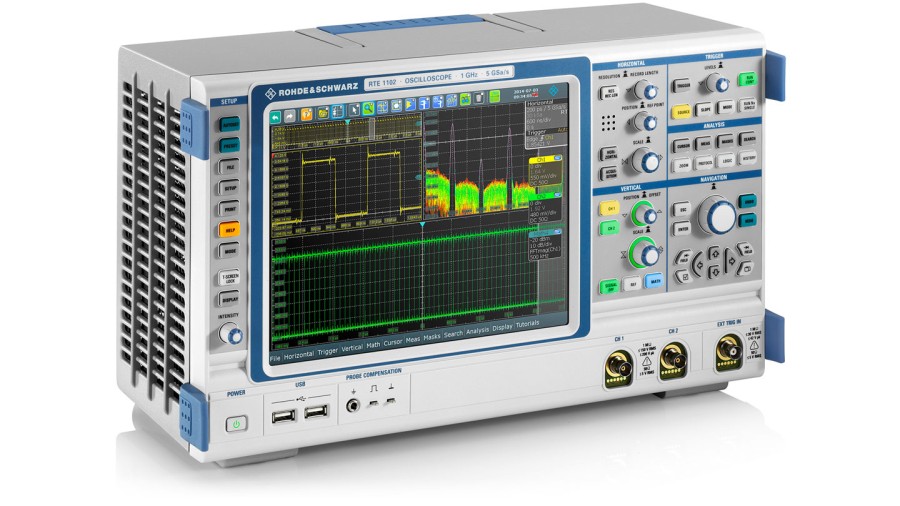

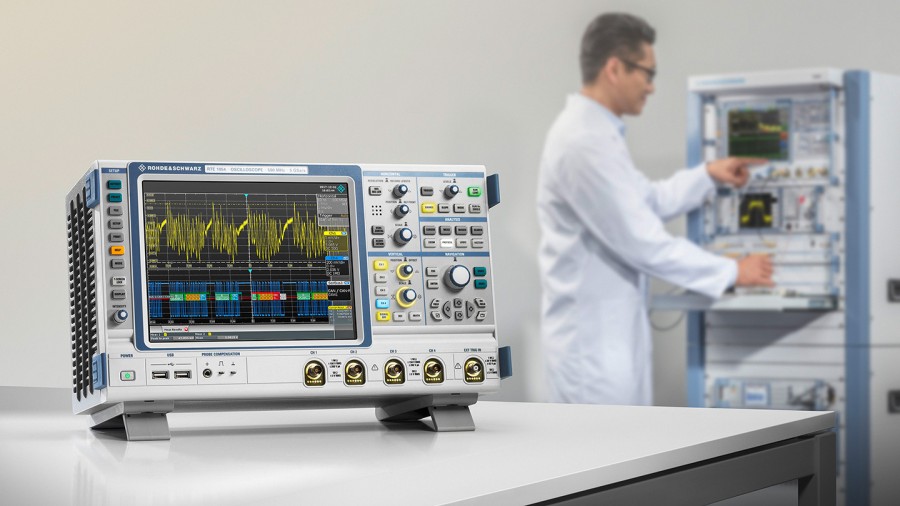

Rohde & Schwarz RTE1000 Oscilloscopes perform precise measurements due to very low inherent noise over a bandwidth of 200 MHz to 2 GHz, at a max. sample rate of 5 Gsample/s and with a max. memory depth of 200 Msample. Rohde & Schwarz RTE1000 oscilloscopes support dedicated application solutions for complex analyses, including trigger and decoding options for serial protocols and a power analysis option. The mixed signal option provides 16 digital channels for analyzing logical components in embedded designs. R&S®RTE1000 oscilloscopes offer a fully integrated multi-domain test solution with time, frequency, protocol and logic analysis functions. The R&S®RTE1000 makes it possible to quickly detect errors even in complex designs. From embedded design development to power electronics analysis to general debugging, the R&S®RTE handles everyday T&M challenges quickly, accurately and easily.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Base unit	Bandwidth	Channels	Sampling rate	Acquisition memory	Vertical Resolution	Acquisition rate	Mixed signal analysis (MSO)
R&S®RTE1022	200 MHz	2 (Digital: 16)	5 Gsample/s	50 Msample per channel, max. 200 Msample	Up to 16 bit	1 million waveforms/s	400 MHz, 5 Gsample/s, 100 Msample, > 200 000 waveforms/s
R&S®RTE1024	200 MHz	4
R&S®RTE1032	350 MHz	2
R&S®RTE1034	350 MHz	4
R&S®RTE1052	500 MHz	2
R&S®RTE1054	500 MHz	4
R&S®RTE1102	1 GHz	2
R&S®RTE1104	1 GHz	4
R&S®RTE1152	1.5 GHz	2
R&S®RTE1154	1.5 GHz	4
R&S®RTE1202	2 GHz	2
R&S®RTE1204	2 GHz	4
