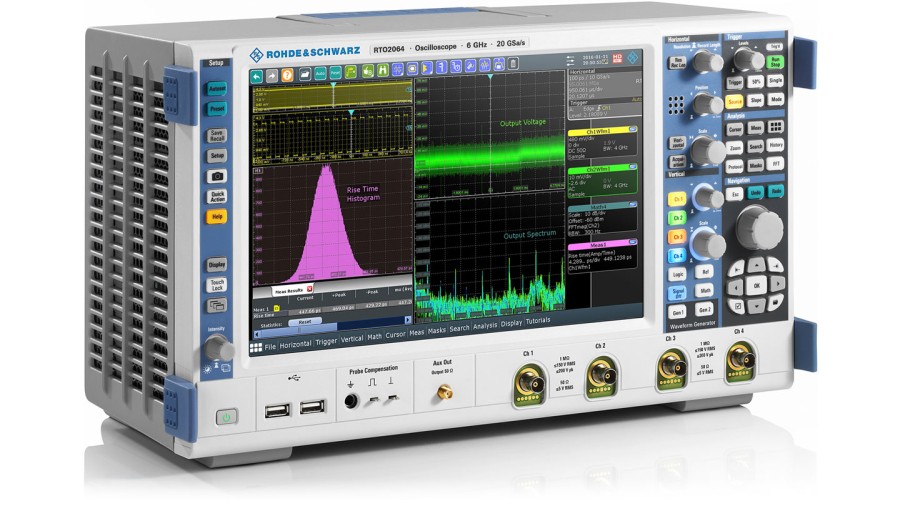

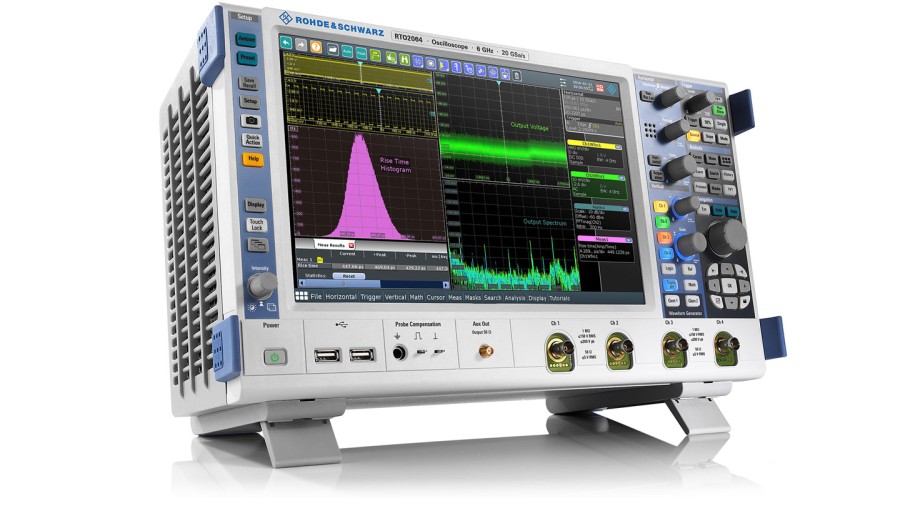

Rohde & Schwarz RTO2000 Oscilloscopes are optimized to perform precise measurements at a high input sensitivity and very low inherent noise over a bandwidth of 600 MHz to 6 GHz, with a max. sample rate of 20 Gsample/s and a max. memory depth of 2 Gsample. The R&S®RTO2000's unique high definition mode enables up to 16-bit resolution. With an acquisition rate of up to one million waveforms per second, the Rohde & Schwarz RTO2000 detects sporadic signal faults lightning fast. R&S®RTO2000 oscilloscopes are engineered for multi-domain challenges and facilitate debugging of systems with different signal types. The oscilloscopes enable simultaneous time, frequency, logic and protocol analysis and display the results referenced over time. For the first time, the R&S®RTO offers a special tool for these applications: a zone trigger that can be used in both the time domain and in the frequency domain.
Features
- Bandwidth: 600 MHz to 6 GHz
- Max. sample rate: 20 Gsample/s
- Max. memory depth: 2 Gsample
- Vertical resolution: up to 16-bit with HD mode option
- MSO: 16 digital channels, optional, retrofittable
- Precise measurements due to very low noise level
- Up to 16-bit vertical resolution
- Trigger on any signal detail you can see
- Quickly find signal faults with 1 million waveforms/s
- Analyze previous acquisitions – always available in history buffer
- High-resolution capacitive touchscreen with gesture support
- Easily customizable waveform display with R&S®SmartGrid technology
Specifications
| Base unit |
Channels |
Sampling rate |
Acquisition memory |
Acquisition rate |
Mixed signal analysis (MSO) |
| R&S®RTO2064 (6 GHz bandwidth) |
4 |
20 Gsample/s |
50 Msample per channel, max. 2 Gsample |
1 million waveforms per second |
400 MHz bandwidth, 5 Gsample/s sampling rate, 200 Msample memory depth |
| R&S®RTO2044 (4 GHz bandwidth) |
4 |
20 Gsample/s |
| R&S®RTO2034 (3 GHz bandwidth) |
4 |
10 Gsample/s |
| R&S®RTO2032 (3 GHz bandwidth) |
2 |
|
| R&S®RTO2024 (2 GHz bandwidth) |
4 |
|
| R&S®RTO2022 (2 GHz bandwidth) |
2 |
|
| R&S®RTO2014 (1 GHz bandwidth) |
4 |
|
| R&S®RTO2012 (1 GHz bandwidth) |
2 |
|
| R&S®RTO2004 (600 MHz bandwidth) |
4 |
|
| R&S®RTO2002 (600 MHz bandwidth) |
2 |
|
Applications
- Signal analysis
- Integrated arbitrary waveform generator
- Serial protocols: easy triggering and decoding
- Automatic compliance tests
- Spectrum analysis
- Integrated spectrum analysis
- Deep toolset for signal analysis
- MSO analysis
- Signal integrity measurement with jitter analysis
- EMI debugging
