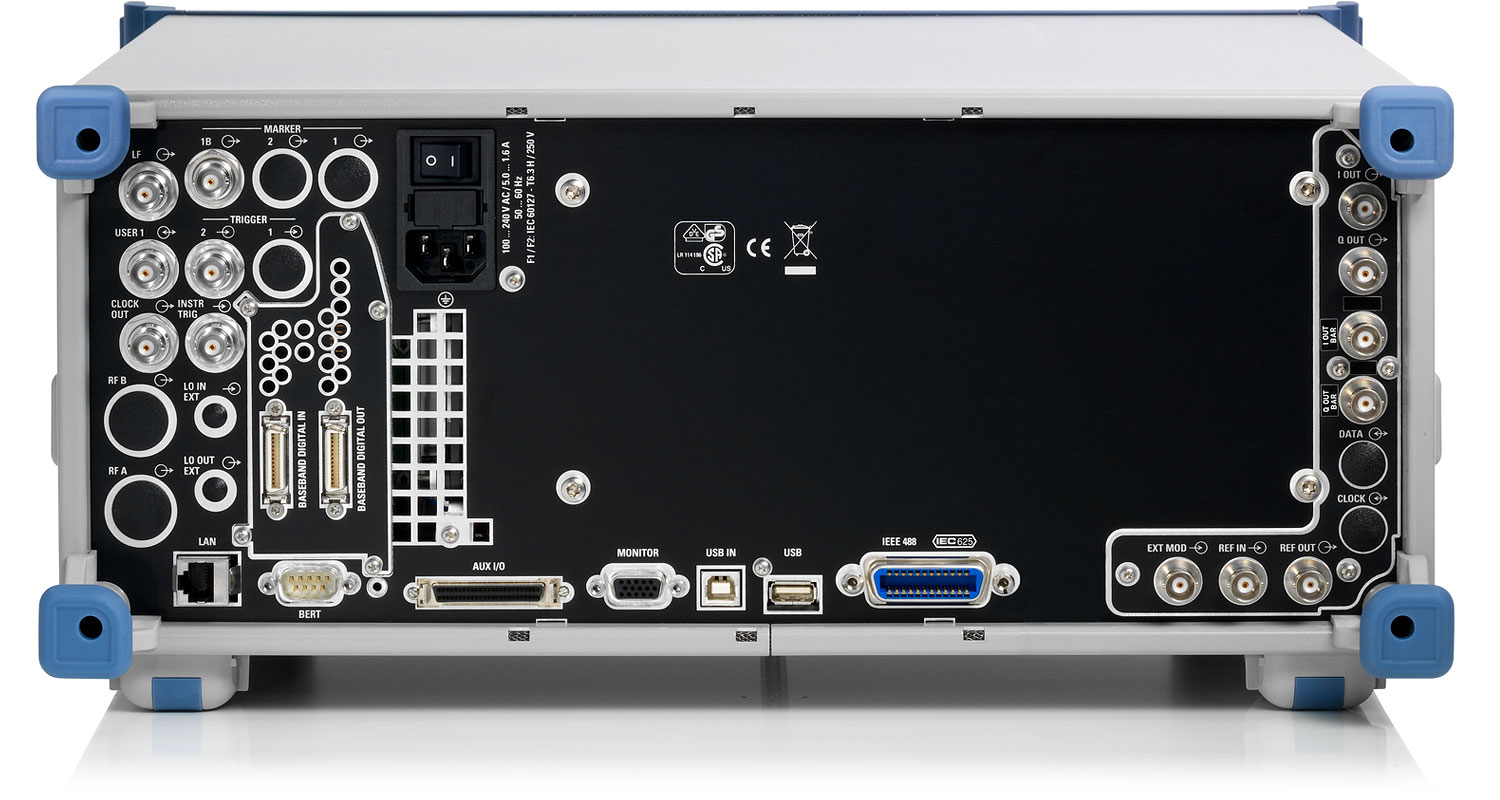

The Rohde & Schwarz SMU200A Vector Signal Generator 100 kHz - 6 GHz has been designed to meet all requirements encountered in the research and development as well as production of modern communications systems. The R&S®SMU200A not only combines up to two independent signal generators in one cabinet of only four height units, but also offers unrivaled RF and baseband characteristics.

Due to its modular design, the R&S®SMU200A can be optimally adapted to the requirements of different applications. The first RF path can be equipped with one of the four available frequency options. The upper frequency limit of 2.2 GHz, 3 GHz, 4 GHz or 6 GHz is user-selectable. In addition, a second RF path can be installed with an upper frequency limit of 2.2 GHz or 3 GHz. The lower frequency limit of all frequency options is 100 kHz.

Two generators can also be installed in the baseband section. They generate complex signals in realtime and are equipped with an arbitrary waveform generator with 16 Msample, 64 Msample or 128 Msample memory. The signals generated in the different basebands can be added, even with frequency offset. Featuring a dual-path concept and an optional integrated multichannel fading simulator, the R&S®SMU200A is ideal for tests on MIMO receivers as 2x2 MIMO systems can be tested using a single instrument. For larger systems up to 2x4 or 4x2 MIMO, two instruments can be combined. The modern, intuitive concept of the R&S®SMU200A ensures fast and easy operation.


Specifications:


Frequency
Frequency range RF path A 100 kHz to 2.2/3/4/6 GHz
Frequency range RF path B 100 kHz to 2.2/3 GHz
Setting time SCPI mode
List mode
<2 ms, typ. 1.5 ms
<450 µs, typ. 300 µs
Level
Maximum level (standard) f≤3 GHz
f>3 GHz
+13 dBm (PEP)
+11 dBm (PEP)
Maximum level (with high-power option) f≤3 GHz
f>3 GHz
+19 dBm (PEP)
+17 dBm (PEP)
Setting time SCPI mode
List mode
<2 ms, typ. 1.5 ms
<450 µs, typ. 300 µs

Options:

B11: Baseband Generator with ARB (16 Msample) and
Digital Modulation (realtime)
B13: Baseband Main Module
B14: Fading Simulator
B16: Differential I/Q Output
B17: Baseband Input (analog/digital)
B31: High-Power Output
B106: 100 kHz to 6 GHz
