The Anritsu MG3710A Vector Signal Generator is a best-of-class, multi-function, signal generator with excellent RF and baseband performance. The Anritsu MG3710A features wideband vector modulation and offers built-in baseband waveform generation with large-capacity memory to ensure maximum versatility. It supports all key mobile communications and wireless LAN standards, and it also has the exceptional performance required for emerging and proprietary wireless communications technologies. Dual RF and Dual Waveform options enable a single MG3710A to output up to four independently modulated signals. The MG3710A makes it easy to implement complex test scenarios that would normally require multiple synchronized signal generators.


Features:

  • Dual RF & Dual Waveform Memory
  • High All-purpose Baseband Performance
  • Expandability
  • Operability

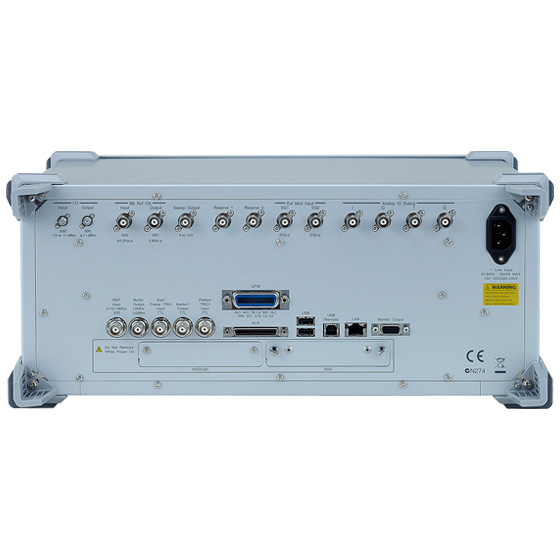

  • Connections with External Equipment
  • Security
  • Pre-installed Key waveform patterns
  • Dual VSG: Two RF Outputs
  • Dual waveform Memory
  • High level accuracy
  • Choice of reference oscillators
  • Wide Vector Modulation Bandwidth
  • Large-capacity Waveform Memory
  • Free form wave generation
  • Expandability



Specifications:

Frequency Setting Range
1stRF MG3710A-032 9 kHz to 2.7 GHz
MG3710A-034 9 kHz to 4 GHz
MG3710A-036 9 kHz to 6 GHz
2ndRF MG3710A-062 9 kHz to 2.7 GHz
MG3710A-064 9 kHz to 4 GHz
MG3710A-066 9 kHz to 6 GHz
Switching Speed (List Mode) Frequency ≤600μs
Level ≤600μs
Absolute Level Accuracy
(at CW, 18° to 28°C, –110 to +5 dBm)
±0.5 dB (typ.) (100 kHz ≤ f < 50 MHz)
±0.5 dB (10 MHz ≤ f ≤ 3 GHz)
±0.7 dB (3 GHz < f ≤ 4 GHz)
±0.8 dB (4 GHz < f ≤ 6 GHz)
Harmonics <–30 dBc
Non-Harmonics Output level ≤+5 dBm, CW, Frequency offset ≥10 kHz
<–62 dBc (100 kHz ≤ f ≤ 187.5 MHz)
<–62 dBc (100 kHz ≤ f ≤ 187.5 MHz)
<–68 dBc (187.5 MHz < f ≤ 750 MHz)
<–62 dBc (750 MHz < f ≤ 1.5 GHz)
<–56 dBc (1.5 GHz < f ≤ 3 GHz)
<–50 dBc (3 GHz < f ≤ 6 GHz)
Single Sideband Phase Noise (at CW, 20 kHz offset) <–140 dBc/Hz (nom.) (100 MHz)
<–131 dBc/Hz (typ.) (1 GHz)
<–125 dBc/Hz (typ.) (2 GHz)
Analog Modulation Amplitude Modulation
Depth: 0 to 100% (Linear)
0 to 10 dB (Log)
Modulation Frequency: 0.1 Hz to 50 MHz
Frequency Modulation Deviation: 0 Hz to 40 MHz
Modulation Frequency: 0.1 Hz to 40 MHz, or (50-MHz FM Rate), whichever smaller
Φ-Modulation Deviation angle: 0 to 160 rad., or (40 MHz/ΦM Rate) rad., whichever smaller
Modulation Frequency: 0.1 Hz to 40 MHz, or (40 MHz/ΦM Deviation), whichever smaller
Pulse Modulation Modulation Frequency: 0.1 Hz to 10 MHz
Modulation Period: 10 ns to 20 s
Dimensions, Weight 177 (H) × 426 (W) × 390 (D) mm
Power Requirements 100 V(ac) to 120 V(ac), 200 V(ac) to 240 V(ac) 50 Hz to 60 Hz
