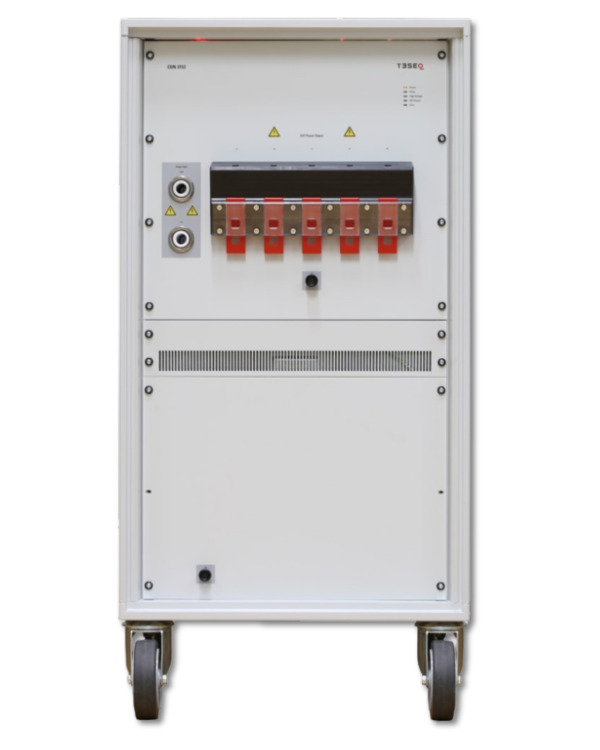

Teseq CDN 3083-B100 EFT/Burst Coupling/Decoupling Network
support_agent
Tech Support
(800) 404-2832
With Every
Rental
language
Worldwide
Delivery
RENT
Rent Now
Calibrate
Request Calibration
Larger
SKU:
SCHA-CDN3083-B100
Categories
EFT-Burst Generators
Transient Generators
Coupling Decoupling Network
Documents
Accessory Kit
Datasheet
Manual
print
Print
send
Email
High frequency pulse signals can result in cross-talk between conductors running in parallel even over short distances. This behavior is taken into account in the latest and currently valid edition of the EFT/burst standard EN/IEC 61000-4-4 (2004).
Only the single coupling mode of «all conductors together against reference ground» is called for in interference immunity testing with fast transients. The units permit test pulses of up to 8.8 kV.
The CDN 3083-B100 is designed to be used with an EUT supply in AC mode up to 690 V in line to line or line to ground method. DC voltage can be taken up to 1000 V line to line or line to ground.
The CDN 3083-B100 is a 3-phase burst pulse coupling network for large EUT currents. Although designed for continuous duty at up to 100 A per phase, the unit can be subjected to considerably higher currents for short durations.
As a result, high inrush currents or pulse-shaped peak currents can be handled with ease. The current limitation is largely a matter of thermal loading and ambient temperature. A built-in thermometer enables the heating effect to be monitored.
The type of construction, inside a metal housing for use directly on the ground reference plane, ensures excellent HF earthing. The EUT supply connections take the form of generously dimensioned screw terminals.
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Permits test pulses of up to 8.8 kV
Designed to be used with an EUT supply
3-phase burst pulse coupling network
Built-in thermometer enables the heating effect to be monitored
Specifications
EUT (supply) Voltage
690 VAC, line-to-line and line-to-ground
1000 VDC, line-to-line and line-to-ground
EUT Current (AC or DC)
≥100 A continuous
The maximum permissible current is given by the heat dissipated in the coupler. As the temperature is monitored, heavy overloads until the temperature reaches 70°C are possible.
Burst Pulse Peak Voltage
8800 V
Terminals
Screw terminals, rated for 200 A
Temperature Monitoring
Bimetal-thermometer 0 – 120°C
Grounding
4 mm combined banana and screw terminal
(safety grounding).
Via housing bottom plate and brackets
(HF ground to test setup ground-plane)
EFT/Burst Connector
SHV
Applications
Options
Accessories
Standards
IEC 61000-4-4
