Teseq CDN 3063-S100 3-phase Coupling/Decoupling Network

Larger

Categories

Documents

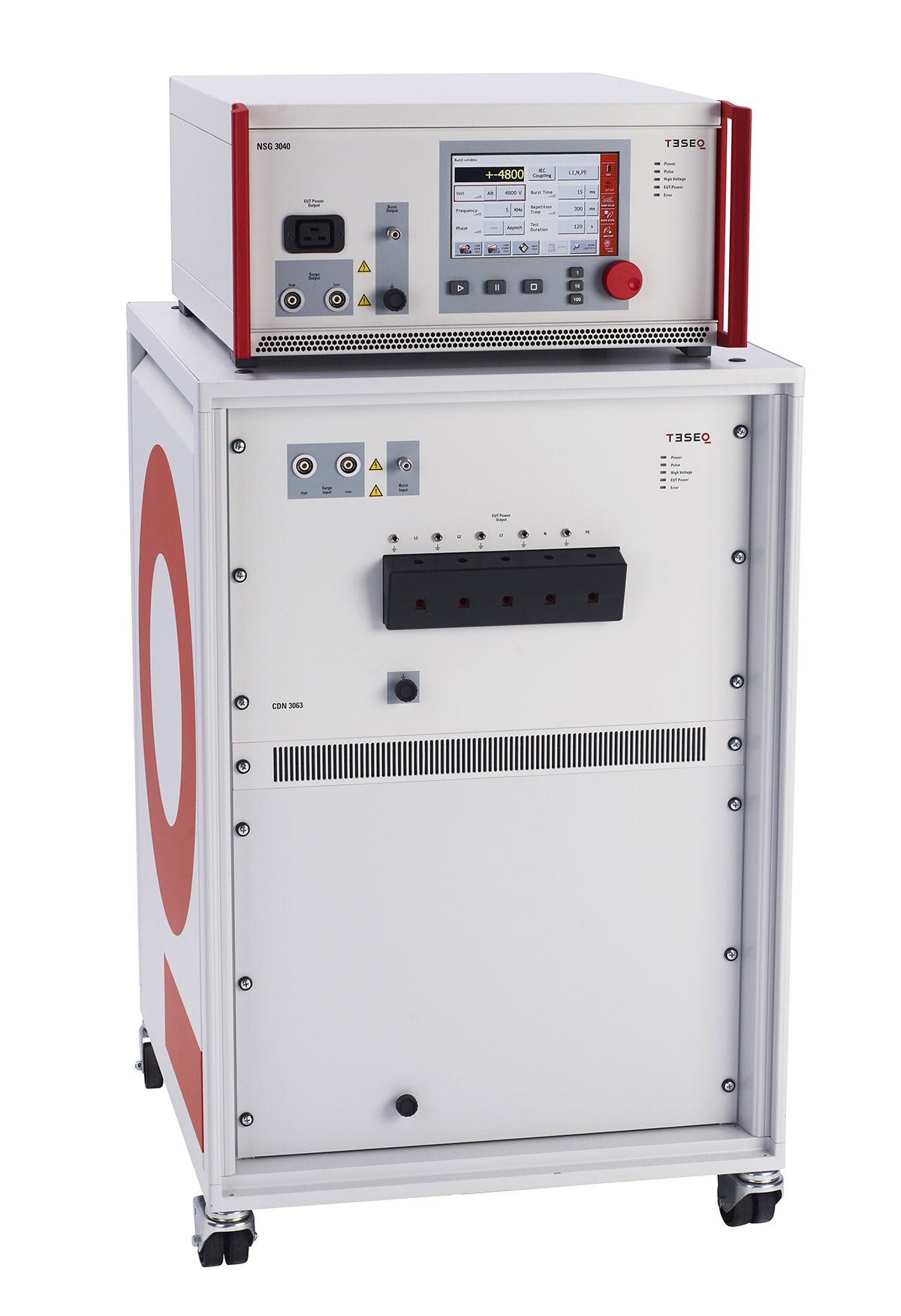

The CDN 3063-S100 3-phase 480 V/100 A automatic coupling decoupling network (CDN) for Surge and Ring Wave pulses up to 6.6 kV is part of the CDN 3063 Coupling/Decoupling Networks Series. The new, modular CDN 3063 continue Teseq’s philosophy of designing easily upgradeable test instruments that maximize the user’s initial investment. Users can select a CDN from this series that fulfils their basic testing needs with the assurance that they can upgrade it to a model to fit different generator compatibility as their testing requirements change. The CDN 3063 is designed for maximum reliability in a wide range of test setups. Over temperature protection, which allows short term operation at currents exceeding the nominal rating, prevents damage to internal components.

Parameter	Value
Instrument supply	85 – 265 VAC
Standard-conform pulse	Electric fast transient EFT (Burst) Combination wave Ring wave
Connections	HV-surge pulse input from generator (Fischer connector) EFT input connector from generator (SHV connector) Connector for EUT supply input (Screw terminals Phoenix) Connector for EUT supply output (Screw terminals) Power inlet for CDN input System cable (25 pin connector) Earth connection Phase rotation indication
