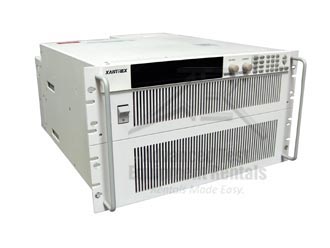

Xantrex XDC 60-200 Digital DC Power Supply
Enlarge Image
Xantrex XFR 60-200
Request Quote Print Page

The XDC60-200 offers up to ten different test programs, each with up to 99 voltage level steps varying from milliseconds to days. Programs can be executed by a manual or external trigger, or via a computer interface; a technician can single step through a sequence, run “n” times or run continuously when triggered from the front panel or remotely. This stand-alone capability can be used for constructing simple voltage XDC Series Digital Power Supplies ramps, battery charging and simulation of battery voltage at engine start-up, component testing, and MIL 704E testing. Additionally, up to ten configurations of differing protection and output set points may be stored, recalled at any time or set for default at start-up.

It has a unique menu-driven auto sequencing capability. This powerful feature allows for complex test sequences to be entered and saved via the front panel without the need for external computers or software.

Option: RS232 port 208VAC 3-Phase Input power
Xantrex XFR 60-200 Features
  • RS-232
  • Fully isolated analog control,
  • Extensive self-protection mechanisms,
  • “Soft switching” for better noise performance efficiency and reliability
  • Input power factor correction (PFC) for lower current draw and low harmonic current generation.
  • 3 Phase
  • 14800 Watt
Xantrex XFR 60-200 Specs
Output Voltage 0-60V
Output Current 0-200A
Input Power 200/208/220VAC
Frequency 47-63Hz
Xantrex XFR 60-200 Applications
  • ATE
  • Bulk Power
  • Production Test
  • OEM
  • Burn-in
