Electro-Metrics EDS-250/300 Electrostatic Discharge Simulators

Electro-Metrics EDS-250/300 Electrostatic Discharge Simulators
Enlarge Image
Request Quote Print Page
Datasheet


Electro-Metric's Electrostatic Discharge (ESD) Simulation products simulate in a known and repeatable way the "static electricity" effects that we have all experienced by walking across a woolen or nylon carpet in the winter time and then touching an object such as a metal door knob or our office word processor table.


Features:

  • Electro-Metrics® Electrostatic Discharge Simulators are designed to meet existing and proposed standards
  • Common control unit (250/300)
  • Generates repeatable, fast risetime, high voltage waveforms
  • Continuously variable output to 25 kV
  • Simulates human and inanimate object waveforms
  • Simulates the four types of failure-related discharges
  • Pulse probe current injection - no air discharge, therefore, repeatable, consistent results may be anticipated
  • DC probe to meet IEC 801-2 and other air discharge needs when required
  • The pulse counter selector permits automatic test termination by means of settings made prior to test mode
  • Each probe can be used in both positive and negative polarity conditions
  • Pulse unit trigger control provides quicker and more manageable operation
  • Voltage cut-off switch for safety
  • Interchangeable tips (R&C&C for DD series, R only for PD series

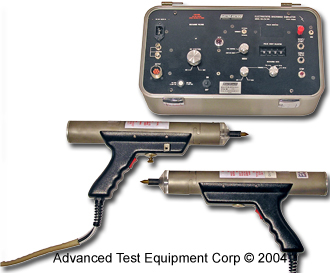

The EDS-250 Electrostatic Discharge Simulator consists of the following:


1.) Model EDS-250/300 control unit


2.) Either/both DC/PD probe




EDS-300


The EDS-300 is designed to simulate furniture and personnel discharge and is capable of direct and indirect voltage discharge ESD testing.Voltage is stored in the EDS-300 vanes, acting as a 150 pF distributed capacitance, and released into an object through the use of probes. The vane geometry was selected for several reasons:


  • It is less sensitive to the presence of nearby capacitive bodies
  • The charge is spread over a larger surface area
  • The vertical edges to which the discharge probe is clamped allow adjustment to different heights without altering the discharge circuit



Test Possibilities:

  • Direct ESD testing, personnel (1800W 150 pF)
  • Direct ESD testing, furniture (15W, 150 pF)
  • Indirect ESD testing (I-ESD)
  • ESD damage testing, furniture
  • Product ESD characterization
  • Field ESD testing



Features:

  • Output with FP-7 Pulser 0 to 7 kV, with P-151 Pulser 0.8 to 15 kV
  • Pulse probe current injection - no air discharge, therefore, repeatable, consistent results may be anticipated
  • The pulse counter selector permits automatic test termination by means of settings made prior to test mode for either pulses
  • Generates repeatable, fast rise time, high voltage pulse waveforms
  • Simulates human and inanimate object waveforms
  • Simulates the four types of failure-related discharges
  • Accepts EDS-250 accessories
  • Both handheld 25 kV IEC and pulse probe available
