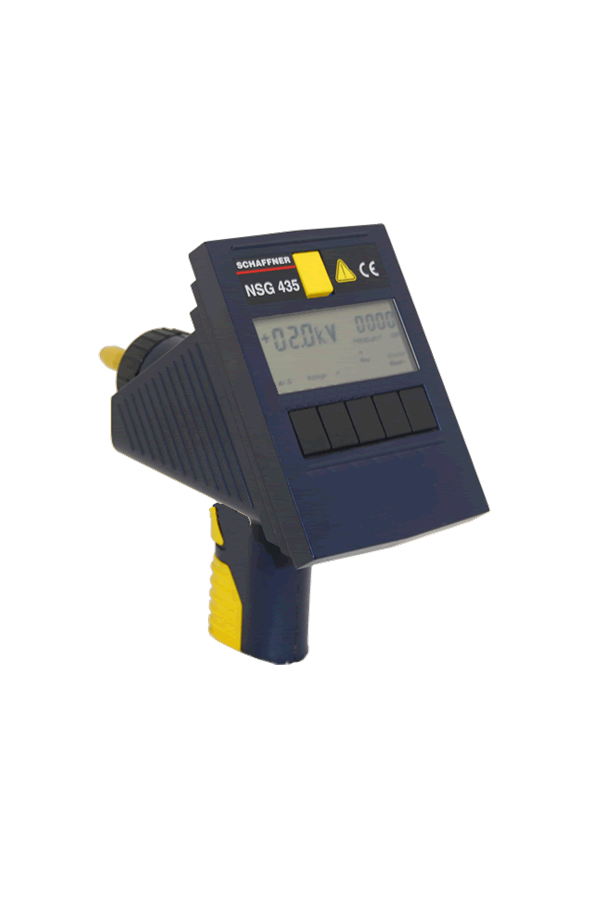

The Teseq NSG 435 ESD Simulator is a programmable electrostatic discharge (ESD) testing device which generates a discharge voltage of 200V to 16.4KV. Teseq NSG 435 ESD guns simulate ESD, the high-frequency pulse components aiding in diagnostic analysis of electrical immunity failures. Light and sleekly designed, this battery-operated high-voltage ESD gun provides stablized charging voltage and true air-discharge breakdown voltage. Analytical parameters are then available to access on the LCD display including charging voltage, discharge voltage, polarity, counter content, soft-key functions and more. Teseq NSG 435 ESD Simulators are calibrated to IEC/EN 61000-4-2 requirements, and can fulfill ANSI and IEC standards as well.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Use- programmable discharge voltage - 200V to 16.5kV
Polarity - manual setting to +ve or -ve, and automatic switching between the two.
Battery powered
Equipped with a 150pF / 330 ohms discharge network for IEC 61000-4-2, IEC 1000-4-2 and IEC 801-2 / 1991 testing
Range of optional extra discharge networks available for other standards including IEC 801-2 / 1984
Discharge voltage of up to 16.5kV for air discharges and up to 9kV for contact discharges
Interchangeable discharge networks and test fingers
Single and repetitive discharges
Discharge pulse counter
Remote triggering
Windows-based remote PC control
Discharge voltage - set by stepping up or down in 100V steps
Air or contact discharge selection
Single or repetitive discharge at user selectable frequency
Total of eight voltages (four air discharges and four contact discharges) can be programmed into the NSG435 and recalled as required.

Specifications

Pulse Network	150 pF/330 Ω
Discharge Voltage	200V to 16.5kV (in 100V steps)
Discharge tips	Ball and point as per IEC
Charging voltage measurement	kV, accuracy better than ±5% (stabilized)
Holding time	>5 s (charging voltage ... ±5%)
Operating modes	0 to 9999, preselect counter 0 to 9999
Weight	NSG 435 with battery: 1.2 kg (2.6 lbs) approx.
Ambient conditions	+5 to +40°C, 20 to 80 % r.h. (non-condensing), 68 to 106 kPa
