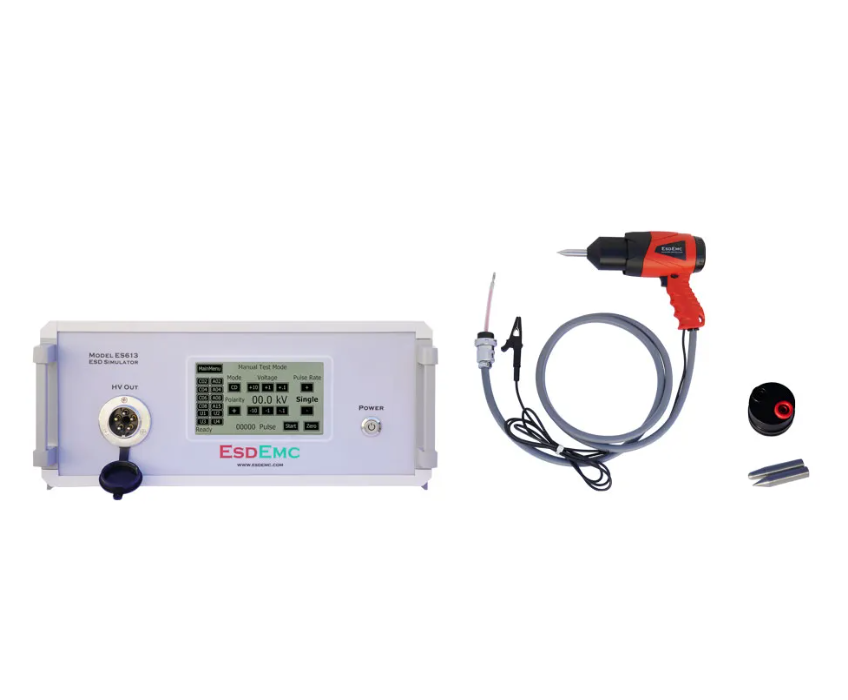

ESDEMC ES613 ESD Simulator
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Categories
ESD Guns
Documents
Datasheet
Print
Email
The ES613 Series ESD simulator is our latest design of ESD simulator with the most advanced features, including exchangeable RC network modules, exchangeable rise time tips, zap-counter, and remote control. It meets the requirements of the IEC61000-4-2 and ISO 10605 standards. Dual polarity test levels up to 20 or 30 kV.
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features

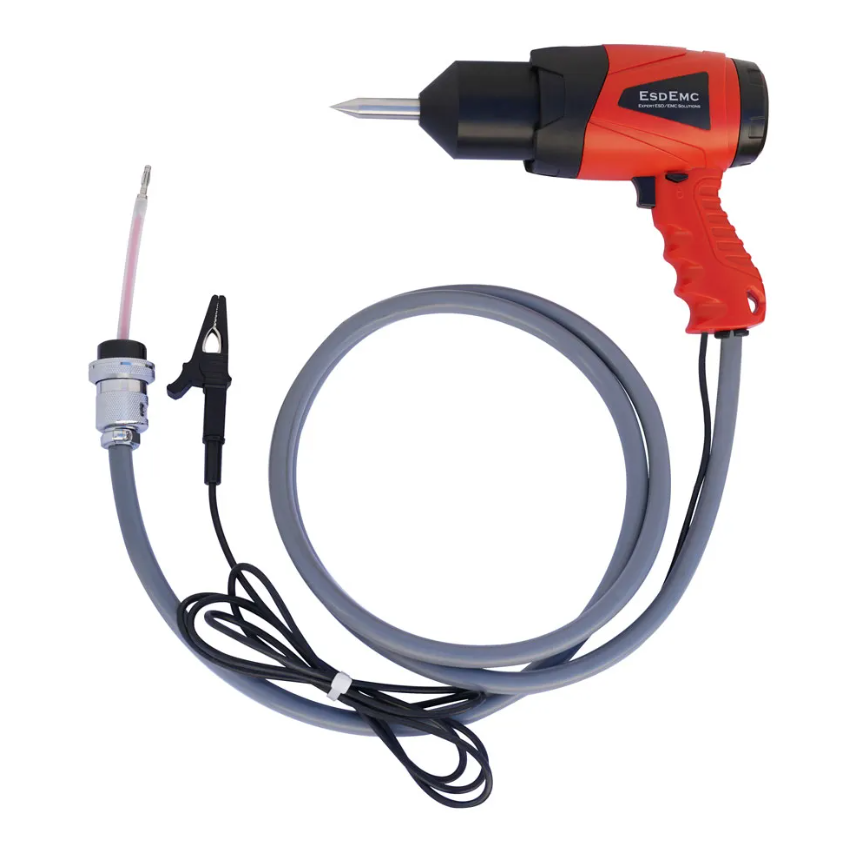

The most ergonomically designed ESD Gun
Ultra Light Weight ESD Gun (< 700 g, the lightest one in the market)
Integrated automatic charge removal circuit
Ultra Large Touch Screen (5 inches)
Great Voltage Control Stability (Single pulse better than 1%, 20 Hz pulse better than 5%)
Unique Precision High Voltage Test Modes (for high voltage charging application or Breakdown test)
Smart Device Under Test (DUT) Failure Level Scanning Mode (Automatic polarity change, increase pulse level per user settings)
Optical Serial Remote Control Capability Available
Pulse Modes: Trigger, 1Hz, 2Hz, 5Hz, 10Hz, and 20Hz

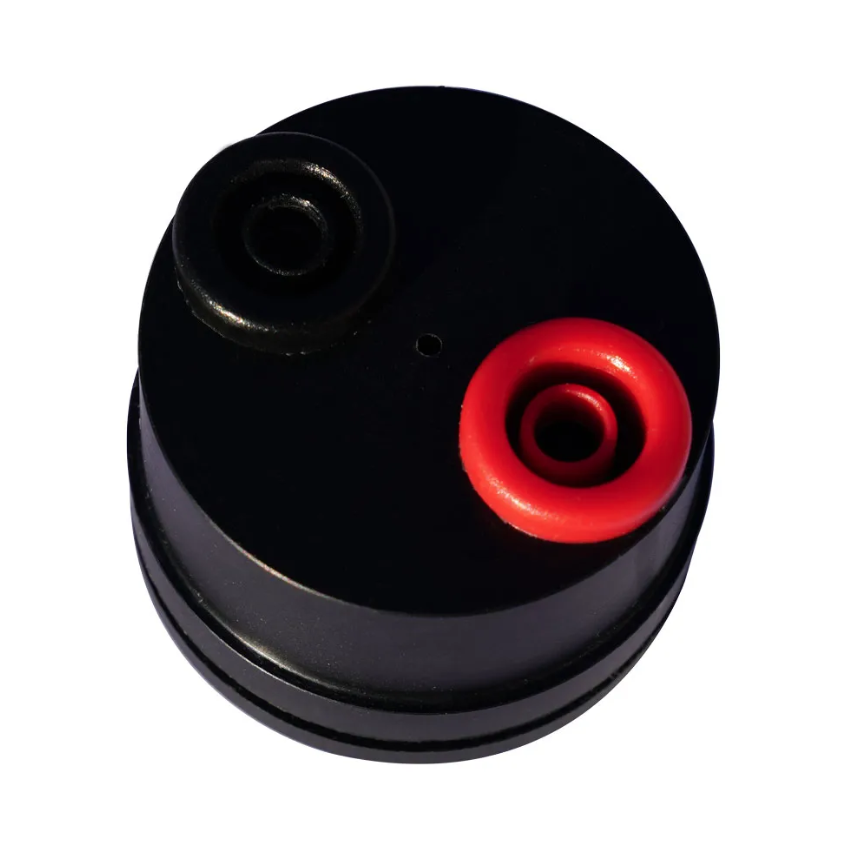

Exchangeable RC modules for different standards (Customization Available)
Specifications
Test voltage range
0.1 - 30 kV
Voltage step
0.1 kV step
Voltage tolerance
Factory calibrated to ±1% (FS)
Voltage polarity
Positive and negative
Discharge repetition
Trigger, 1Hz, 2Hz, 5Hz, 10 Hz, 20 Hz
Discharge counter
Up to 65535 times
Discharge mode
Contact discharge/ Air discharge
Operation panel
5-inch large touch screen
Applications
Learn About ESD Testing
Options
Accessories
Standards
Media
Request Calibration
Instant Quote
RELATED PRODUCTS
Haefely ONYX 30 kV Electrostatic Discharge ESD Simulator
Haefely ONYX 16 kV Electrostatic Discharge ESD Simulator
EMC Partner ESD3000 ESD Simulator | 16 kv, 30 kV | Contact, Air, Indirect Discharges
EM Test ESD NX30 Electrostatic Discharge Simulator up to 30 kV
Teseq NSG 435 ESD Simulator
Teseq NSG 438 30 kV ESD Gun Simulator System
M Precision Laboratories MZ-15/EC MiniZap ESD Simulator
Noiseken ESS-S3011A/GT-30RA Electrostatic Discharge Simulator
Noiseken ESS-S3011/GT-30R 30kV ESD Simulator
Teseq NSG 437 ESD Simulator System
Schloder SESD 216 ESD Simulator 16.5 kV
Teseq NSG 438A ESD Gun Simulator System
Noiseken ESS-2000AX ESD Electrostatic Discharge Simulator System
Electro-Tech 949-2 IEC 61000-4-2 Verification Kit
EMC Partner DM1 Electrostatic Discharge Module for IEC 61000-4-2, ITU-T K20 (ESD3000DM1)
Haefely RC Module Discharge Networks
Noiseken ESS-6002 Component Level Electrostatic Discharge Simulator
Noiseken ESS-6008 Component Level Electrostatic Discharge Simulator
Teseq INA Custom Discharge Networks
Teseq MD103 ESD Pulse Calibration Set
