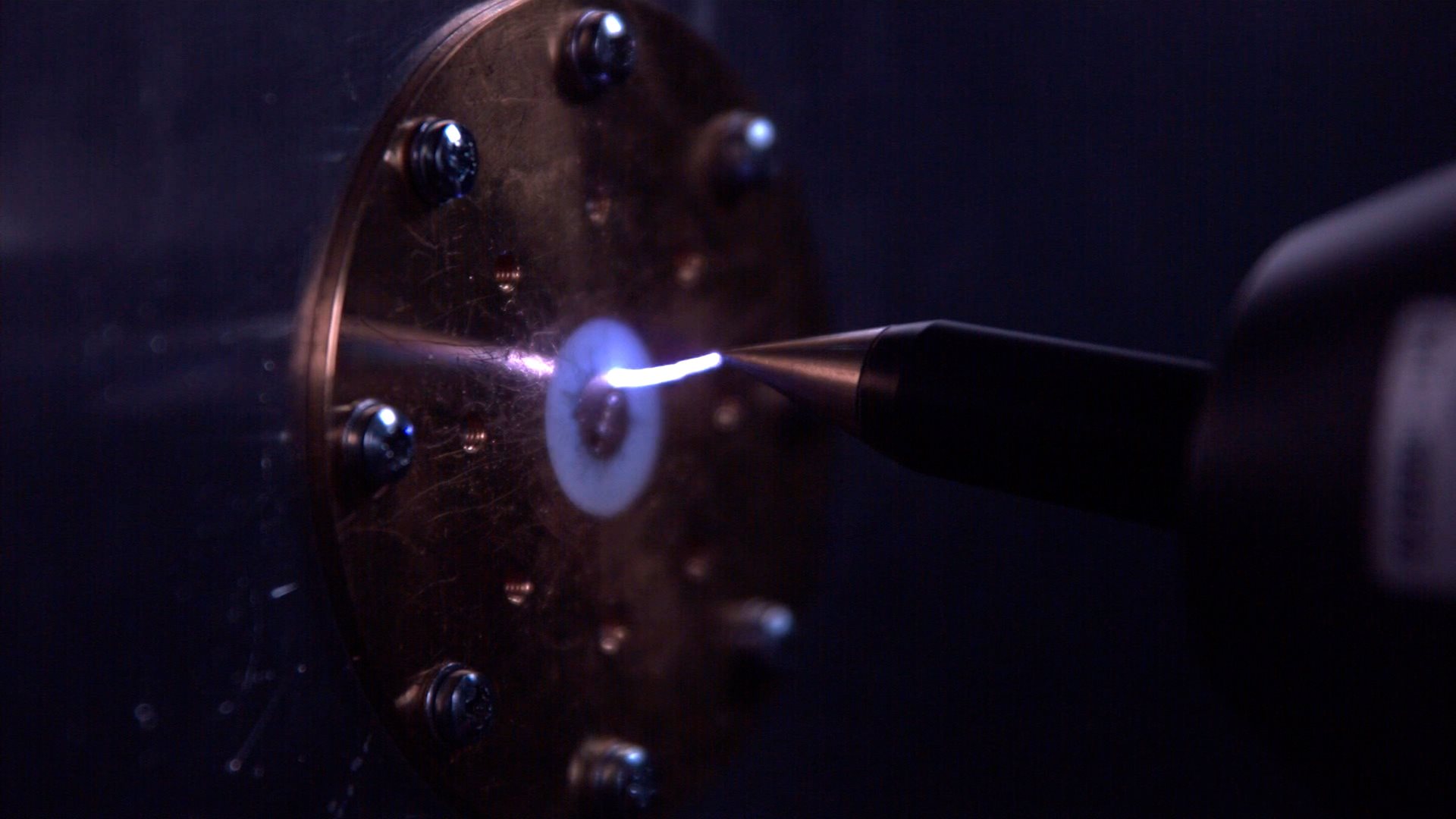

For Contact Discharge (CD) up to 30 kV and Air Discharge (AD) up to 32 kV

The EMC-Partner ESD3000 is a light weight, hand-held battery operated tester. The modular construction enables many different test standards to be performed by simply changing the module. A broad range of accessories enable testing to many applications for contact discharge, air discharge and indirect discharge.

The easily interchangeable discharge modules (DM) quickly adapt the ESD3000 to the specified circuits of a new application. Each new module fitted to the ESD3000 is automatically identified and the corresponding program displayed. Modules can be configured to meet requirements for special component values but also so that the waveshape is correct using the defined calibration method. The modules contain all the high voltage circuits making the ESD3000 the ONLY ESD system capable of fully conforming to different calibration requirements.


  • 32 kV contact discharge level
  • Single impulse mode
  • Simple operation
  • Parameter change during operation using + and - keys
  • Internal program memory
  • Backlit LCD display
  • Electronic polarity change
  • Light weight
  • Battery operation
  • Compact design
  • Fulfills ALL standard requirements
  • Wide range of Discharge Modules (DM)
  • Individually calibrated discharge modules (DM)
  • Standard (0.7 - 1 nS) or Fast ESD (ca. 300 pS) events
  • Remote control and software upgrade through standard interface



  • Discharge risetime: depending on module type
  • Air discharge: 0.2 up to 32 kV depending on module type
  • Contact discharge: 0.08 up to 30 kV depending on module type
  • Voltage increment resolution: 1 volt steps
  • Contact discharge repetition interval: 0.05 to 30 s
  • Discharge detection: every pulse or real discharges only
  • Discharge counter: 1 to 29999
  • Discharge polarity: positive, negative and alternating
  • Holding time: 5 s
  • Programmable parameter ramps: voltage, polarity
  • Discharge trigger: manual, automatic or remote
  • Test report data from TRA2000 or TEMAsoftware:sequence, number of discharges, voltage, polarity



CD up to max. 10 kV and up to level 4:
DM1: IEC/EN 61000-4-2 (10/16kV)
DM2: ISO 10605(E) (+/- 10/16kV)
DM3: ISO 10605(E) ( +/- 0/32 kV)
DM4: MIL-883E ( +/- 10/16 kV)
DM5: DO-160D (+/- 0/32 kV)
DM6: IEC 61340-3-1 (+/- 8/0 kV)
DM7: IEC 61340-3-2 (+/- 2.5/0 kV)
DM8: EN50155 (10 kV, 0.05/0.1 µs)

Customised DM16C : in general: Cap: 100 pF up to 1500 pF
  • Res: 0 up to 2 kOhm
  • manufactured:
  • DM16C-VW:
    Cap: 1500 pF
    Res: 2200 Ohm
  • DM16C-AUDI:
    Cap: 330 pF
    Res: 330 Ohm

DM = Discharge Module
(x/y kV) = Voltage range CD and AD

CD up to max. 30 kV, level x:

(requires one RM and one DN)
RM32: RM for rise time 0.7 - 1 nS
RM32F: RM for rise time < 400 pS
DN1: IEC 61000-4-2, ANSI C63.16, RTCA/DO-160 (30/32kV)
DN2: ISO TR10605E (30/32 kV)
DN3: ISO TR10605E (30/32kV)
DN4: MIL-STD-1512 (30/32kV)


Customized DN32:
  • in general:
  • Cap: 100 pF up to 1000 pF
  • Res: 0 up to 10 kOhm
  • manufactured:
    • DN32-RAIL:
      Cap: 330 pF
      Res: 100 Ohm
      Waveform: <0.05/0.1 µs (8.4 kV)

RM = Relay Module
DN = Discharge Network
(x/y kV) = Voltage range CD and AD
