Electro-Metrics EM-6992 Near Field Probe Set

Electro-Metrics EM-6992 Near Field Probe Set
Enlarge Image
Request Quote Print Page
Datasheet

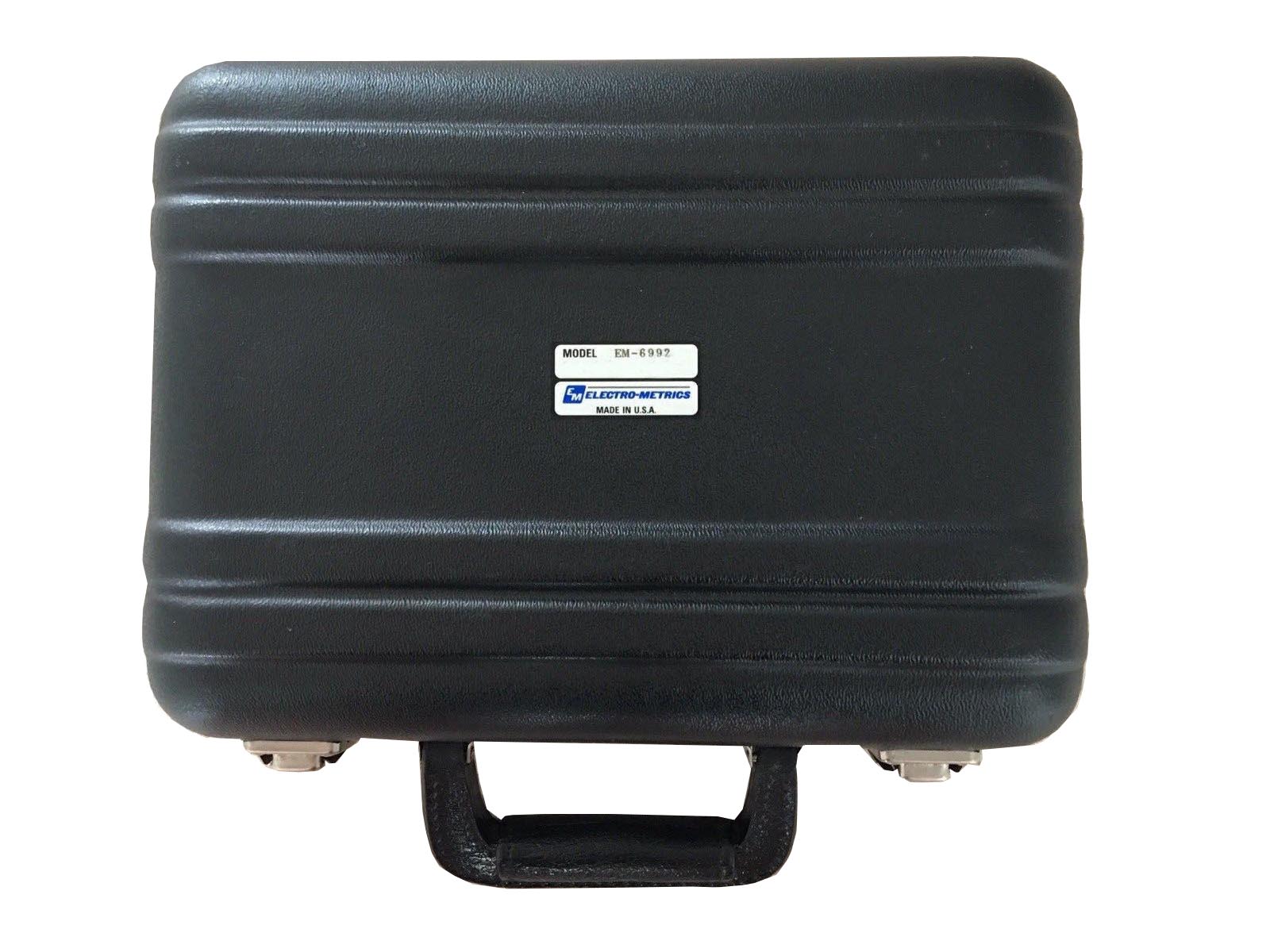

The EM-6992 Probe Set is intended to serve as a versatile aid for diagnostic testing of radiated emissions over a broad range of frequencies from below 100 kHz to above 1 GHz. The set consists of (3) magnetic field probes, (2) electric field probes, 20 cm extension handle, and a custom carrying case.


The probe set is designed for use with many different indicating instruments such as EMI receivers, spectrum analyzers, or oscilloscopes. The larger probes provide increased sensitivity while the smaller probes permit a more precise location of the emission source.


Specifications:

  • Gain: 25 dB, typical
  • Bandwidth (@ -3 dB): 1199.995 MHz
  • Frequency Range: 5 kHz-1200 MHz
  • Noise Figure: 6 dB
  • 1 dB Compression Point: -1 dBm
