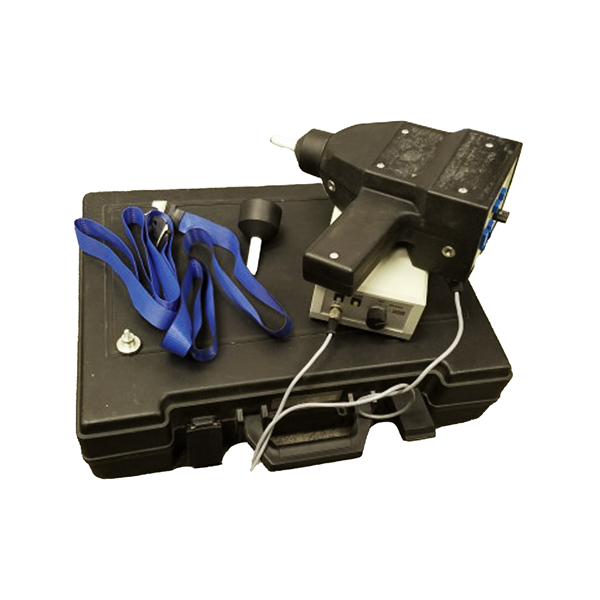

Image of Haefely PESD1600 ESD Simulator Gun

Haefely PESD1600 ESD Simulator Gun

Discontinued

Discontinued and Replaced by Haefely Onyx 16

The Haefely PESD 1600 ESD Simulator Gun has been replaced by the Haefely ONYX 16 kV ESD Test Generator. The Haefely PESD 1600 is still suitable for most ESD immunity test applications. The unit features a unique no contact detection circuit with a voltage range of 1 to 30 kV and pulse network of 150 pF/330 ohm.

Product Info Related Products

Voltage	1 - 30 kV
Voltage resolution	100 Volts
Discharge tips	Test tip air discharge
Pulse networks	150 pF / 330 ohm
Polarity	Positive & negative
Operating modes	Single & continuous
Display	Interface on pistol and base station
Discharge repetition	Single, 1, 2, 5, 10, & 20 Hz
Discharge counter	1 to 9,999
Standards met	IEC 61000-4-2 (Additional R/C networks for more standards)
Dimensions	10 x 21 x 20 cm (Gun) 11 x 7 x 20 cm (Charger)
Weight	1.2 kg (Gun); 0.6 kg (Charger)

Voltage: 1 - 30 kV
Pulse networks: 150 pF / 330 ohm
Air discharge tip
Contact discharge tip

SKU: HAEF-PESD1600
