Keysight 11692D

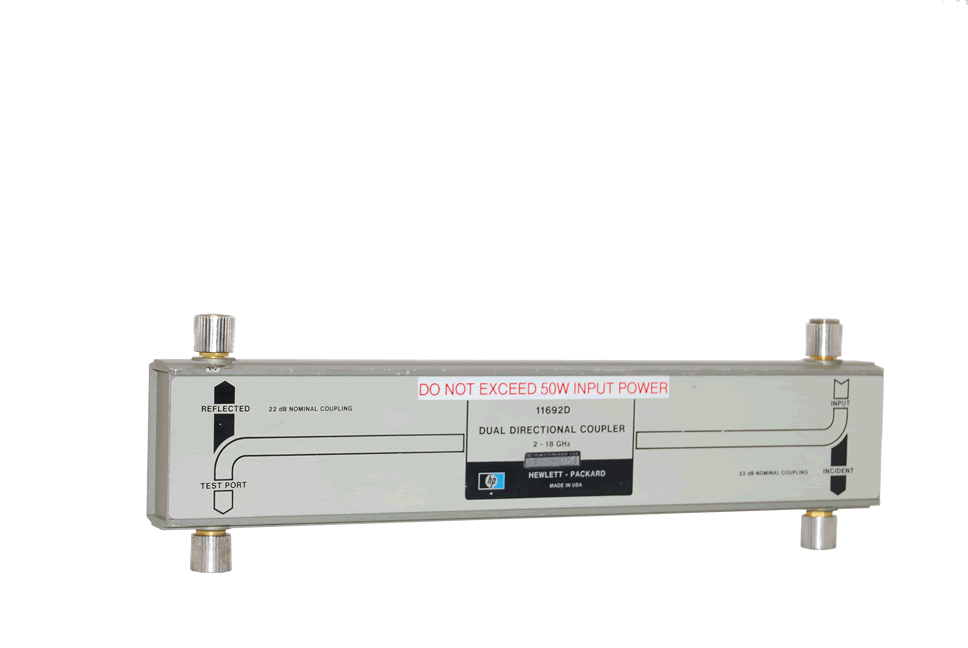

HP/Agilent 11692D Broadband 20 dB Directional Couplers
Enlarge Image
HP/Agilent 11692D Broadband 20 dB Directional Couplers HP/Agilent 11692D Broadband 20 dB Directional Couplers
Keysight 11692D
Request Quote Print Page
Manual
The 11692D high directivity coupler is a precision instrument designed for broadband swept reflectometer applications in the 2 to 18 GHz frequency range. With its wide frequency coverage, this coupler can replace several couplers without performance degradation, thus adding convenience and economy to swept reflection and transmission coaxial microwave measurements by reducing setup and calibration time.

Keysight 11692D Specs
Frequency range 2 to 18 GHz
Minimum directivity 2 to 18 GHz: 30 dB
8 to 18 GHz: 26 dB
Maximum primary line SWR 2 to 12.4 GHz: 1.3
12.4 to 18 GHz: 1.40
Maximum auxiliary port(s) SWR 1.3
Nominal coupling (dB) 20
Maximum coupling variation with frequency (dB) ±l dB
Tracking auxiliary arms ±0.7 dB 3
Maximum primary line residual loss < 1.5 dB
Primary line power 50 W average
Handling capability 250 W peak
