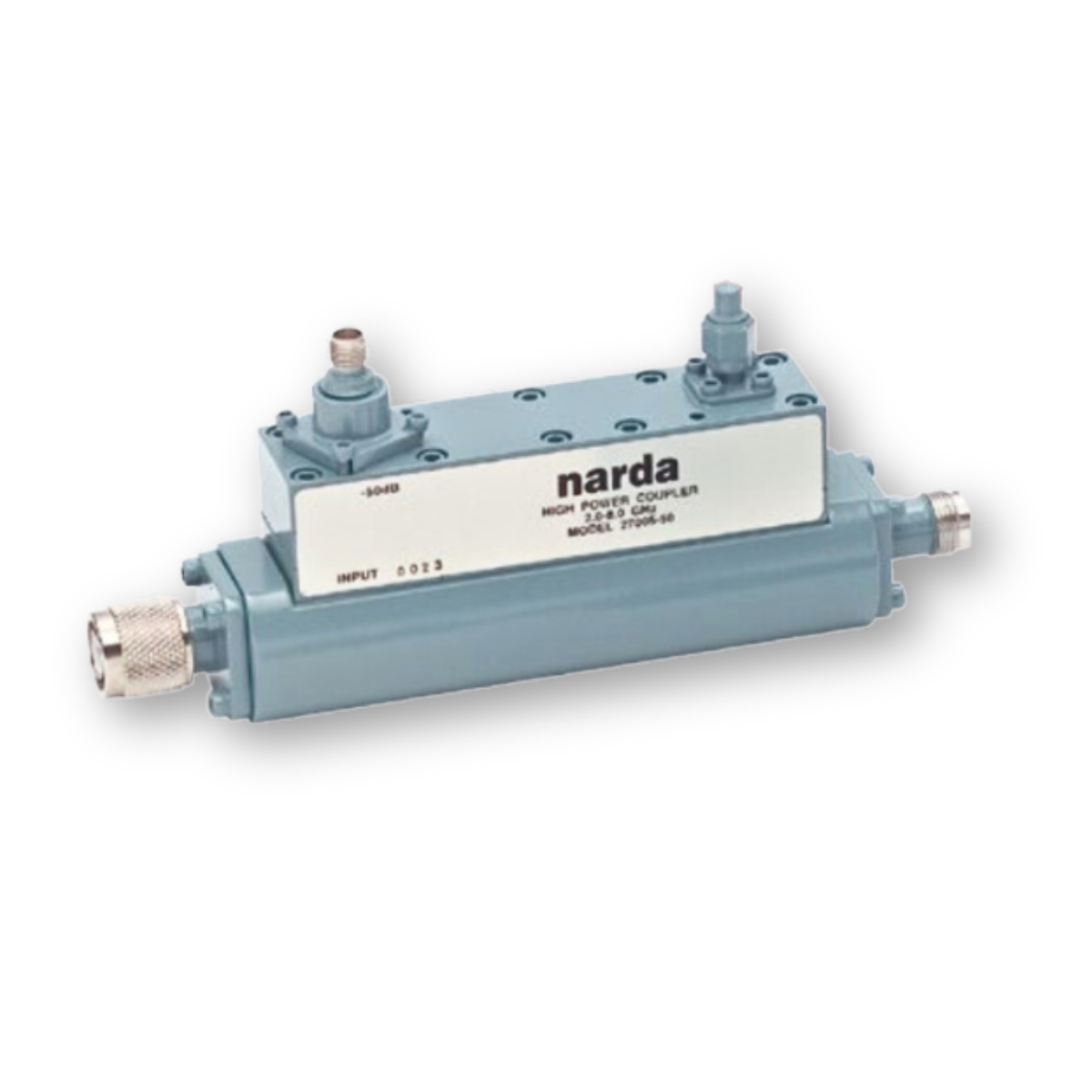

Narda 27000-40 High Power Directional Coupler
The Narda 27000-40 is a high-power directional coupler designed to operate across a frequency range of 2 GHz to 18 GHz. It boasts a coupling factor of 40 dB and supports a maximum power output of 400W, suitable for high-power applications. The coupler is equipped with Type-N female connectors, enhancing its compatibility with various RF systems. It is particularly useful for monitoring and testing in RF applications, including electronic warfare and amplifier systems.
| Frequency range | 2-18 GHz |
| Nominal Coupling | 40 dB |
| Maximum deviation from nominal | ±1.4 dB |
| Power | Average: 400 W Peak: 3 kW |
| Insertion loss | 0.5 dB max. |
- High Performance Design
- 400 Watt Average, 3 to 5 kW Peak Rating
- Low Loss, Air Dielectric
- Operation to 85°C without Degradation
- TNC or Type N Connectors
- Measurement of High Power RF Signals
- Reliable Monitoring of TWT High Power Amplifiers
- Testing of EW Systems with High RF Power Outputs
SKU: NARD-27000-40
