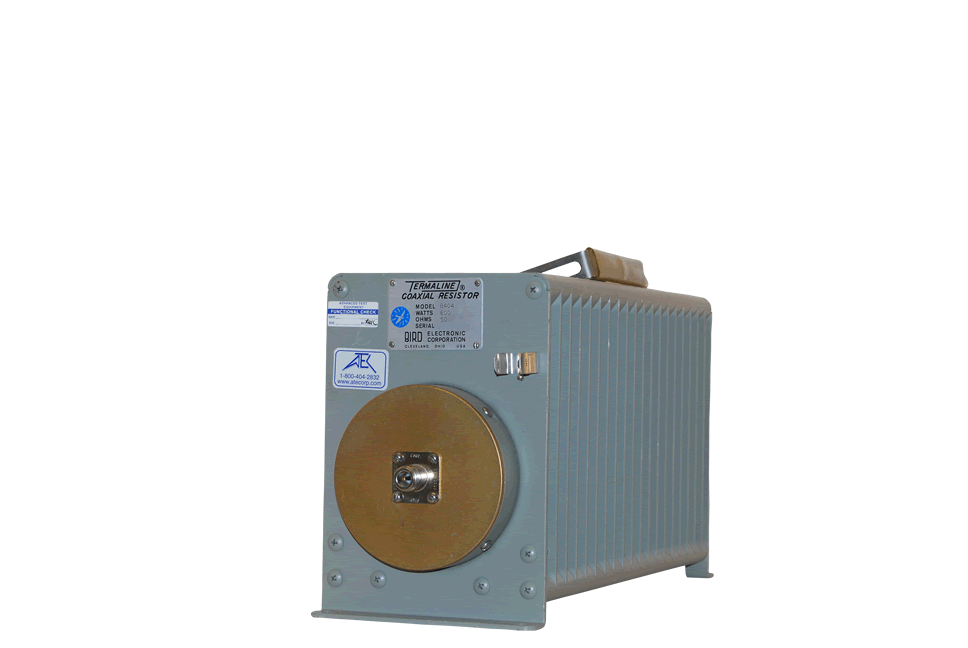

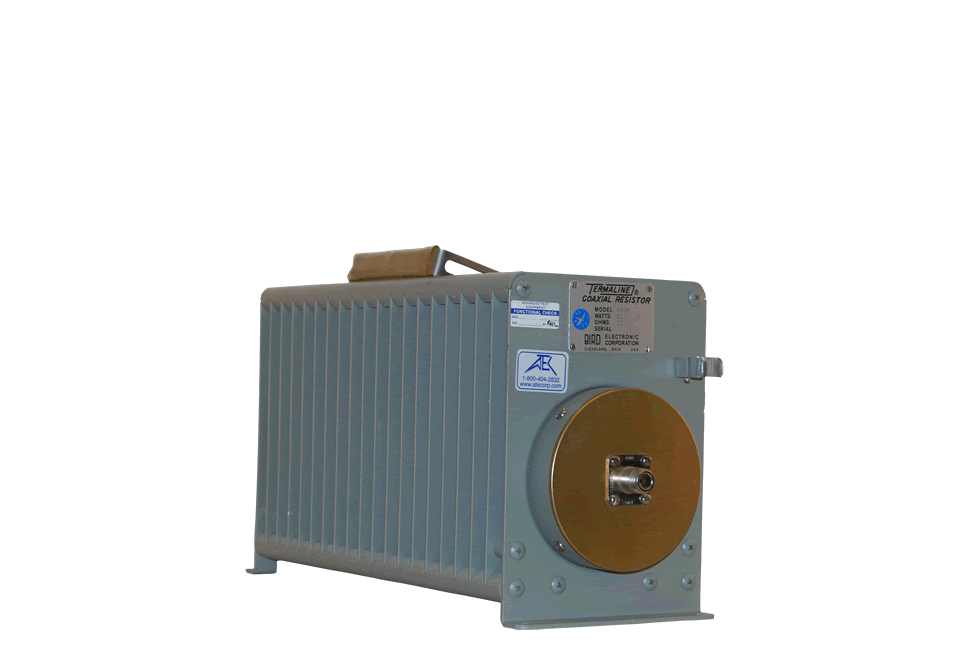

Bird 8404 Termaline Load Resistor

Bird 8404 Termaline Load Resistor
Enlarge Image
Bird 8404 Termaline Load Resistor Bird 8404 Termaline Load Resistor
Bird Technologies 8404
Request Quote Print Page
Manual
Termaline Load Resistor

Bird Technologies 8404 Specs
Power Rating 600 W continuous
Frequency Range DC - 3000 MHz
VSWR DC - 1000 MHz: 1.1:1.0 maximum
1000 MHz - 2800 MHz: 1.2:1.0 maximum
2800 MHz - 3000 MHz: 1.3:1.0 maximum
Ambient Temperature Range -40°C to +45°C
Connectors Female N "QC" type normally supplied
Cooling Method Oil dielectric and air convection currents
Approx. Weight 19.6 lb
Operating Position Horizontal only
