Keysight Infiniium V-Series Oscilloscopes

Larger

Categories

Documents

Datasheet

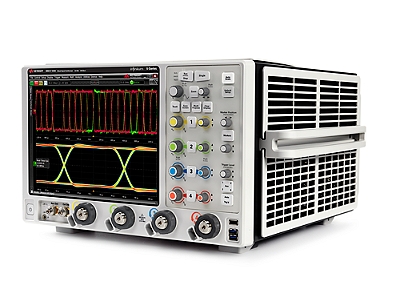

The Keysight Infiniium V-Series is a wide range of innovative oscilloscopes that collect precise measurements at high speeds. The Infiniium V-Series offers a variety of bandwidths in the oscilloscopes, ranging from 8 GHz to 33 GHz, with 4 analog channels and 16 digital channels available in every model. The mixed signal oscilloscopes also feature exceptional sample rates, peaking at 80 GSa/s on 2 channels and 40 GSa/s for measurements on 4 channels.

Users will find that the Keysight Infiniium V-Series oscilloscopes are perfectly built for the spectral analysis of wideband and transient RF applications. The devices excel in this area thanks to a low noise floor of 2.10 mV at 50 mV/div and an intrinsic jitter of 100 fs. Detailed measurements also become easier to analyze with the 12.1" XGA high-resolution touchscreen included on every oscilloscope. The Infiniium V-Series allows for multiple displays and 128 simultaneous viewing spaces with that advanced interface.

The Keysight Infiniium V-Series includes 6 different mixed signal oscilloscopes: the MSOV334A, MSOV254A, MSO204A, MSOV164A, MSOV134A, and MSOV084A.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Mixed Signal Specifications
	MSOV334A	MSOV234A	MSOV204A	MSOV164A	MSOV134A	MSOV084A
Analog Channels	4	4	4	4	4	4
Digital Channels	16	16	16	16	16	16
Analog Bandwidth (2 Ch)	33 GHz	25 GHz	20 GHz	16 GHz	13 GHz	8 GHz
Analog Bandwidth (4 Ch)	16 GHz	16 GHz	16 GHz	16 GHz	13 GHz	8 GHz
Sample Rate (2 Ch)	80 GSa/s	80 GSa/s	80 GSa/s	80 GSa/s	80 GSa/s	80 GSa/s
Sample Rate (4 Ch)	40 GSa/s	40 GSa/s	40 GSa/s	40 GSa/s	40 GSa/s	40 GSa/s
Max Memory	2 Gpoints	2 Gpoints	2 Gpoints	2 Gpoints	2 Gpoints	2 Gpoints
Standard Memory (2 Ch)	100 Mpoints	100 Mpoints	100 Mpoints	100 Mpoints	100 Mpoints	100 Mpoints
Standard Memory (4 Ch)	50 Mpoints	50 Mpoints	50 Mpoints	50 Mpoints	50 Mpoints	50 Mpoints
Rise Time (10 - 90%)	55.0 ps	33.8 ps	27.5 ps	22.0 ps	17.6 ps	13.3 ps
Rise Time (20 - 80%)	38.9 ps	23.9 ps	19.4 ps	15.6 ps	12.4 ps	9.4 ps
