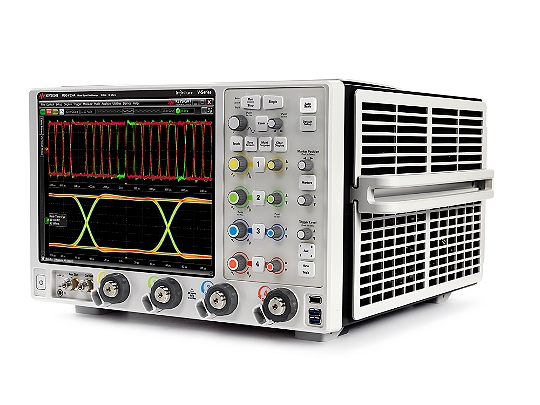

The Keysight MSOV334A Mixed Signal Oscilloscope is a cutting-edge device that's ideal for the analysis of both transient and wideband RF applications. The MSOV334A oscilloscope has an incredible analog bandwidth, reaching 33 GHz, to go along with a low noise floor of 2.10 mV at 50 mV/div. The oscilloscope uses both features to maintain impeccable signal integrity and a peak sample rate of 80 GSa/s at 2 channels.

Using a state-of-the-art user interface, the Keysight MSOV334A Mixed Signal Oscilloscope also makes it easy to analyze these measurements. The display is a high-resolution capacitive touchscreen that allows for 128 simultaneous viewing spaces. With a max memory of 2 Gpoints, the oscilloscope creates an incredible user experience for any analysis needs.

The Keysight MSOV334A Mixed Signal Oscilloscope is a part of the Infiniium V-Series Oscilloscopes.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

General Specifications
Analog Channels	4
Digital Channels	16
Analog Bandwidth	33 GHz
Sample Rate (2 Ch)	80 GSa/s
Sample Rate (4 Ch)	40 GSa/s
Rise Time (10 - 90%)	13.3 ps
Rise Time (20 - 80%)	9.4 ps
Max Memory	2 Gpoints
Standard Memory (2 Ch)	100 Mpoints
Standard Memory (4 Ch)	50 Mpoints
