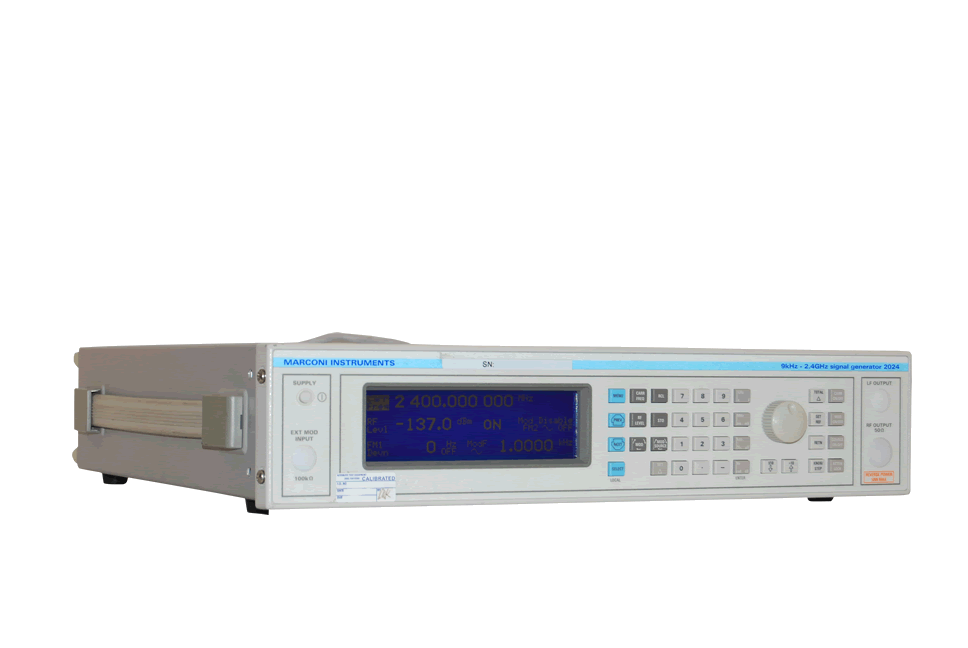

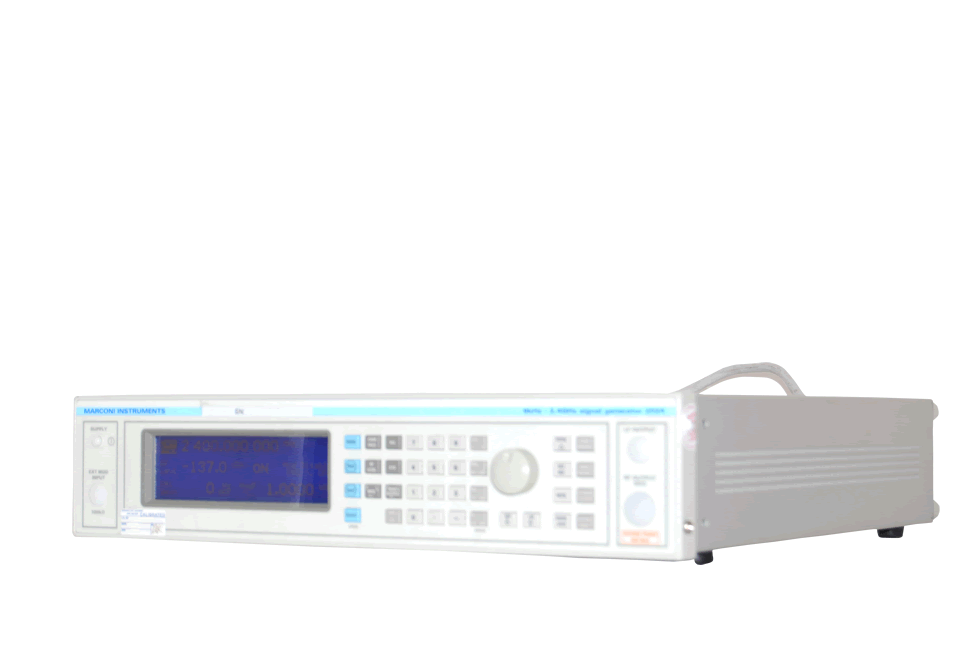

Marconi 2024 RF Signal Generator, 9 kHz - 2.4 GHz

Marconi 2024 9 kHz - 2.4 GHz RF Signal Generator
Enlarge Image
Marconi 2024 9 kHz - 2.4 GHz RF Signal Generator Marconi 2024 9 kHz - 2.4 GHz RF Signal Generator Marconi 2024 9 kHz - 2.4 GHz RF Signal Generator
Marconi 2024
Request Quote Print Page
Datasheet

The Marconi 2024 Signal generator covers the frequency range 9 kHz to 2.4 GHz. The RF output can be amplitude, frequency, phase or pulse modulated. An internal synthesized programmable AF source is capable of generating single or simultaneous two tone modulation. GPIB and RS232 are included as standard to enable remote control of all functions except the supply switch.


Specifications:

Carrier Frequency

Range 9 kHz to 2.4 GHz
Resolution 1 Hz
Accuracy As frequency standard
Phase incrementing The carrier phase can be advanced or retarded in steps as low as 0.09° using the rotary control
