Noiseken ESS-200AX Electrostatic Discharge Simulator
Enlarge Image

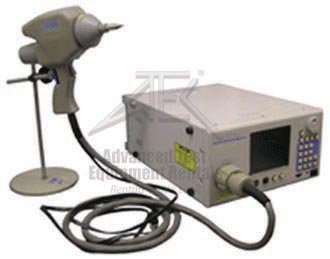

Noiseken ESS-200AX
ESS-200AX Datasheet
The Noiseken ESS-200AX has been replaced by the Noiseken ESS-S3011 30kV.

Click Here
Noiseken ESS-200AX Features
  • 5.7-inch color LCD
  • Communications with PC through the optic serial interface
  • A wide variety of the dedicated options
Noiseken ESS-200AX Specs
Output polarity Positive or negative
Output voltage 0.20kV~30.0kV ±5% (30.5kV max) 0.20kV~10.0kV: 0.01V step, 10.0kV~30.0kV:0.1V step
Discharge interval Normal mode: 0.05s~600.0s ±10%
Extra mode : 1.00s~600.0s ±10% 0.05s~9.99s: 0.01s step, 10s~600.0s: 0.1s step
No. of times of discharge 1~60,000 times preset on the counter or continuous
Discharge mode Air/contact discharge
Radiation level Normal/Extra mode
Trigger mode Gun trigger/main unit trigger/ external trigger
IEC standard Contact discharge: 2.0kV, 4.0kV, 6.0kV, 8.0kV (4 voltages preset)
Air discharge: 2.0kV, 4.0kV, 8.0kV, 15.0kV (4 voltages preset)
Manual Contact/Air discharge: 0.20kV~30.0kV Sweep (automatic voltage ramping) available Up to 99 units (test settings) storable
Sequence Seamless run of the selected test sequence (made of any combination of 99 units in Manual mode) No. of units per one test sequence: up to 30 units No. of test sequences: up to 20
Power supply 100~240V AC 50/60 Hz +/-10%
Power consumption 75VA
Operating temperature and humidity +15~+35oC, 25~75% (no condensation)
Dimensions and weight 260 (W) X 230 (H) X 285 (D) mm (projection excluded) Approx. 5.3 kg
