Tektronix TCPA300 AC/DC Current Probe Amplifier

Rent Tektronix TCPA300 AC/DC Current Probe Amplifier
Enlarge Image
Rent Tektronix TCPA300 AC/DC Current Probe Amplifier Rent Tektronix TCPA300 AC/DC Current Probe Amplifier Rent Tektronix TCPA300 AC/DC Current Probe Amplifier
Tektronix Test Equipment TCPA300
Request Quote Print Page
Datasheet

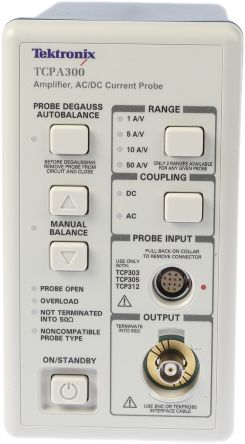

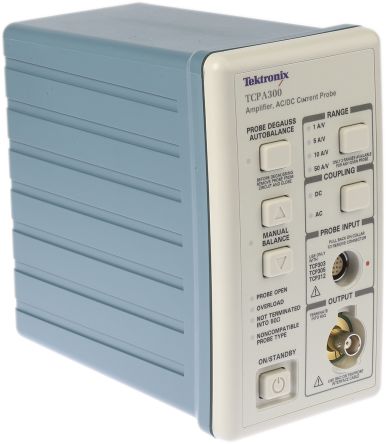

The Tektronix TCPA300 AC/DC Current Probe Amplifier is a highly advanced current measurement system for today's current measurement needs. The split-core probes incorporate both transformer and Hall effect technology to provide broad bandwidth measurement capabilities from DC up to 100 MHz at current levels as low as 1 milliamp to thousands of amps (when used with CT4 current transformer). When connected to Tektronix TDS Oscilloscopes with TEKPROBE Level II or TekConnect (w/TCA-BNC) interfaces, current measurements and calculations are simple and easy. The TCPA300, when used with TCP312, TCP305, or TCP303 probes, provide a wide range of current measurement capability and spans the gap between low level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30 A, 50 A, and 150 A DC continuous. For even higher current levels, the TCPA400 amplifier with the TCP404XL current probe measures 500 A DC continuous and 750 A DC continuous, derated with duty cycle.  Higher frequency performance is available with the TCP312 w/TCPA300 providing =100 MHz bandwidth and a maximum current of 30 A DC.

Features:


  • AC/DC Measurement Capabilities
  • DC-100 MHz, Current Probe Amplifier (TCPA 300) uses:
    • DC-100 MHz, 30 A DC (TCP312)
    • DC-50 MHz, 50 A DC (TCP305)
    • DC-15 MHz, 150 A DC (TCP303)
  • AC/DC Input Coupling
  • Low insertion impedance reduces device under test loading
  • Split-core construction allows easy circuit connection
  • Lower DC Drift and noise allows improved low-level current measurements
