Vision Research

Vision Research Phantom V-Series Ultrahigh Speed Camera

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

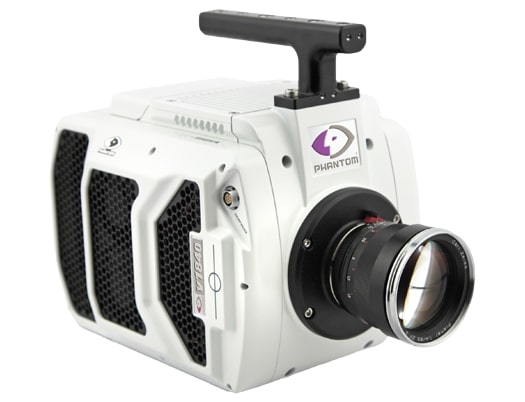

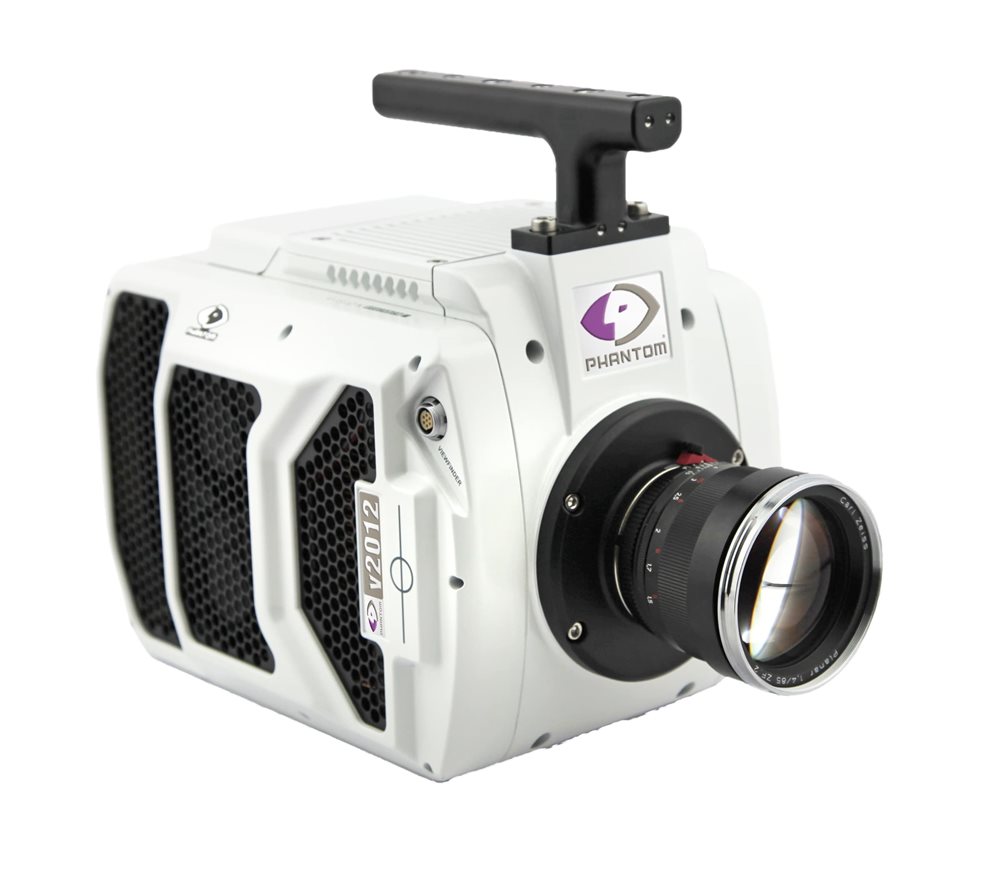

Vision Research Phantom V-Series Ultrahigh Speed Camera Larger
Vision Research Phantom V-Series Ultrahigh Speed Camera
Vision Research Phantom V-Series Ultrahigh Speed Camera
Vision Research Phantom V-Series Ultrahigh Speed Camera
Categories
  • High-Speed Cameras
    High-Speed Cameras
Documents
  • Datasheet v2512, 2012, 1612, 1212
  • Datasheet v1840, 2640
  • Print
  • Email
The Vision Research Phantom V-Series Ultrahigh Speed Camera includes a variety of the world's best imaging devices, offering 1 or 4 megapixels to record with incredible quality at the fastest speeds. Phantom V-Series cameras use a CMOS sensor to capture images at up to 1,000,000 frames per second. A rugged build-yet-lightweight build also makes the devices ideal for use in any environment. Professionals across defense and research fields use the V-Series cameras to fulfill their high-speed imaging needs, all without sacrificing detail and quality on the photos.

With the v2512 model, the Vision Research Phantom V-Series has the world's fastest ultrahigh-speed camera. The device can capture images at over 25,000 fps with a crisp 1280 x 800 resolution. Similar high-speed cameras in the series like the v2012, v1612, and v1212 also boast incredible shutter speeds to achieve nearly-unmatched frames per second. All 4 models of ultrahigh-speed cameras also offer light-sensitivity features to capture quality images in poorly-lit environments.

The Vision Research Phantom V-Series also features two cameras that utilize 4 megapixels: the v2640 and v1820. The Phantom v2640 remains the fastest camera with 4 megapixels, capturing images at 6,600 frames per second with a clear 2048 x 1944 resolution. Both high-speed cameras also offer a low noise rating of 7.2e- to guarantee a crystal clear image without any distortion.

The Vision Research Phantom V-Series Ultrahigh Speed Camera includes 6 models: v2640, v1840, v2512, v2012, v1612, and v1212.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Phantom Camera Control (PCC) software for complete setup, control and image processing
  • Image-base auto-trigger to capture images with just motion detection
  • Internal mechanical shutter
  • Multi-Cine to partition internal memory into segments and make shorter recordings back-to-back
  • Continuous recording to automatically save a recording
  • Burst mode for a rush of images at precise time delays
  • Quiet fans to eliminate vibration
  • 10Gb Ethernet and up to 8TB CineMag
Specifications
Model v2512 v2012 v1612 v1212
Frames per Second
(1280 x 800)
25,700 22,600 16,600 12,600
Memory 72, 144, or 288 GB
Sensor Resolution 1 Megapixel: 1280 x 800
Pixel Size 28 Micron
Minimum Exposure 1 µs

Resolution (Max FPS)
Pixels v2512 v2012 v1612 v1212
1280 x 800 25,700 22,600 16,600 12,600
1024 x 800 30,500 26,900 19,700 15,000
1024 x 512 47,400 41,800 30,700 23,400
640 x 480 70,100 62,500 45,500 34,700
512 x 512 75,600 67,800 49,100 37,500
384 x 256 171,650 155,100 112,300 85,700
256 x 128 380,100 347,800 253,000 193,900
256 x 32 1,000,000 949,400 724,100
128 x 16 1,000,000 1,000,000 1,000,000 820,500

Model v1840 v2640
Frames per Second
(2048 x 1944)
6,600 4,510
Memory 72, 144, or 288 GB
Sensor Resolution 4 Megapixel: 2048 x 1952
Pixel Size 13.5 Micron
Minimum Exposure 1 µs

Resolution (Max FPS)
Pixels v1840 v2640
2048 x 1952 3,320 4,855
2048 x 1440 4,460 6,510
1792 x 976 6,470 9,440
1280 x 720 8,610 12,540
640 x 480 12,480 18,120
256 x 64 56,330 79,200
1792 x 8 106,850 144,970
