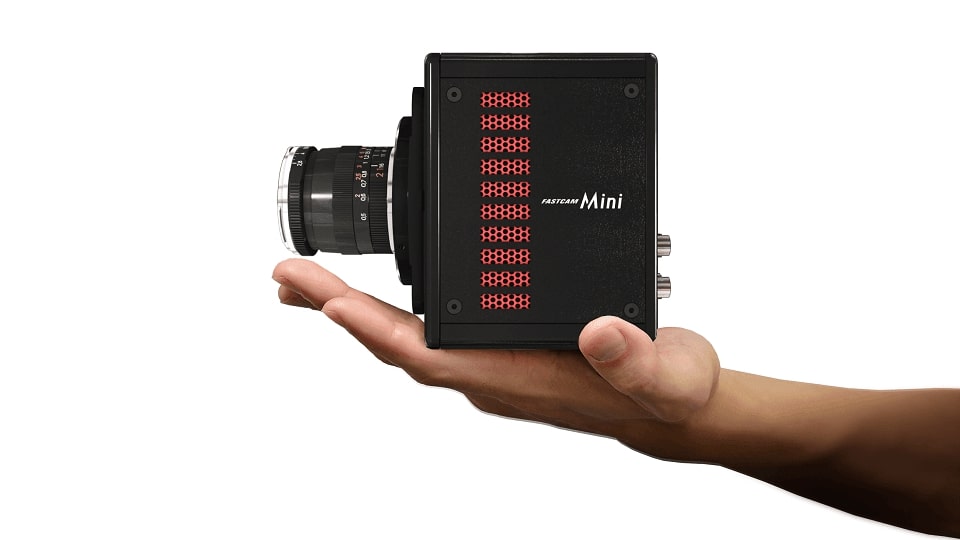

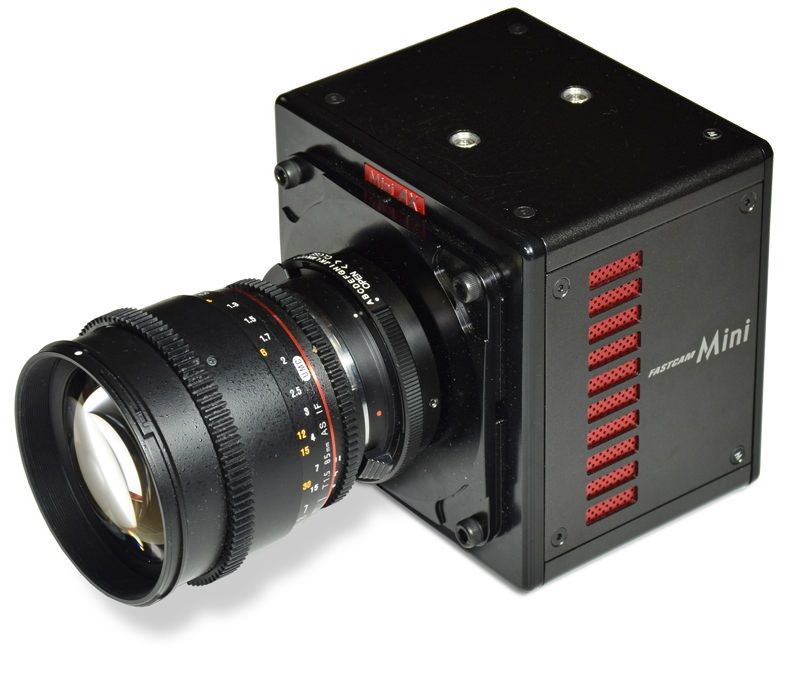

Photron FASTCAM Mini AX200 High-Speed Camera

Larger

SKU: PHTR-MINI-AX200-900-M

Categories

High-Speed Cameras

Documents

Datasheet

The Photron FASTCAM Mini AX200 High-Speed Camera is an ideal camera to balance an incredible frame rate and image quality with a lightweight and portable design. The FASTCAM Mini AX200 camera maintains an excellent image resolution of 1024 x 1024 pixels at a 6,400 fps. The high-speed camera has an impeccable maximum frame rate of 900,000 fps and a minimum exposure of 260 ns, the best in the FASTCAM Mini series.

Similar to the AX50 and AX100, the Photron FASTCAM Mini AX200 High-Speed Camera requires very little effort to capture crisp images at any speed. The device is easy to move with a weight of 3.3 lb (1.5 kg) and a height and width that are both under 5 inches. An advanced CMOS image sensor also simplifies usage as it optimizes the camera for the best image quality and light sensitivity.

The Photron FASTCAM Mini AX200 High-Speed Camera is a part of the FASTCAM Mini AX Series.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

General Specifications
Maximum Frame Rate	Type 200K: 216,000 fps Type 540K: 540,000 fps Type 900K: 900,000 fps
Full Frame Performance	6,400 fps (1024 x 1024 pixels)
Maximum Resolution	1 MP
Minimum Exposure Time	1.05 µs
Inter Frame Rate	1.71 µs
Dynamic Range (ADC)	12-bit monochrome 36-bit color
Memory Capacity	8GB: 5,457 frames at full resolution 16GB: 10,918 frames at full resolution 32GB: 21,841 frames at full resolution
Memory Partitions	Up to 64 memory segments
