Dynatel 573DL Cable Fault Locator

Tech Support
(800) 404-2832

With Every
Rental

Worldwide
Delivery

Larger

SKU: DYNA-573DL

Categories

Cable Fault Locators
Underground Cable Locators

Documents

Datasheet

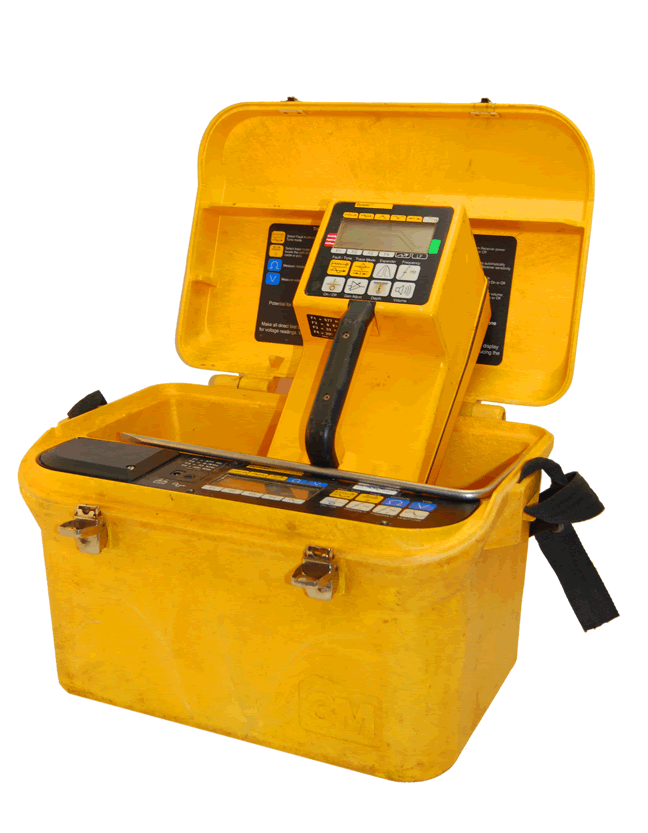

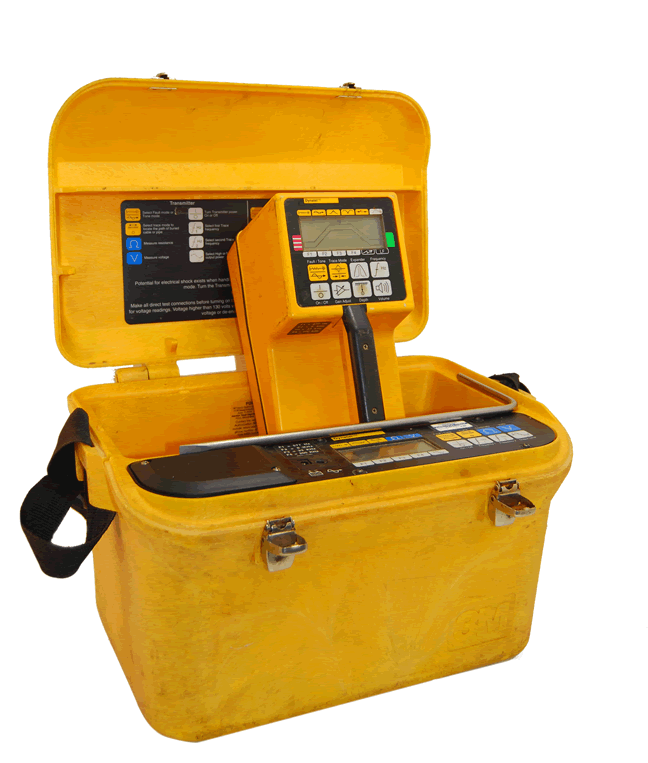

The Dynatel 573DL cable fault locator is a portable instrument that measures and pinpoints sheath and conductor faults in buried or aerial cables and can also locate the path of buried cables. Four frequencies are available to accommodate varying factors such as distance, cable type, or soil conditions. A separate Tone function provides a powerful 577.5 Hz signal for identification. The instrument is also able to detect 6() Hz AC power signals. In depth measurement mode, the 573DL provides a direct digital readout of the estimated depth of buried cables, and a bar graph indication of the relative current in the cable.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Operation Modes
	Single:	Trace, fault, or tone
	Multiple:	Two trace frequencies or one trace frequency with fault locate signal
Signal Application Method
	External:	Direct connect cable, or Dyna-Coupler
	Internal:	Internal induction coil
Signal Level Control	Automatic, selectable between normal or high
Trace Frequency	One of four preprogrammed user-selectable frequencies
Tone Frequency	Preprogrammed to 577.5 Hz
Fault Locate Frequency	Preprogrammed to 15.625/31.25 Hz dual frequency
Volts Function	0 to 250 V average AC & DC
ohms Function	0 to 10 MΩ
Frequency (Active)
	F1 - 577.5 Hz
	F2 - 8 kHz
	F3 - 33 kHz
	F4 - 200 kHz
Coupler/Probe Sensitivity	6 - 25 kHz - 0.3 µV, 25 - 200 kHz - 0.5 µV
Depth Range	0 to 100 inches (254 cm)
