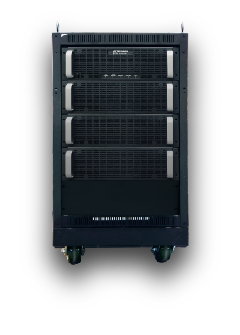

AE Techron 8516 Amplifier

The AE Techron 8516 Amplifier is a wide-bandwidth, high-power digital amplifier that provides 16kW output power and 240A RMS output current. AE Techron 8516 Amplifiers possess a collection of advantages: wide bandwidth, very low noise, high efficiency and the ability to safely drive a wide variety of load types and impedances.

This combination of abilities, flexibility, and ease-of-use makes the AE Techron 8516 Amplifier a singular solution for many common and some previously unsolvable amplifier applications. 8516 amplifiers can be used for EMC conducted immunity testing, MIL-PRF capacitor tests, DC automotive dropout testing and as a variable AC source for ISO 61000, Aviation and Power Quality Measurements.

The AE Techron 8516 Amplifier is the fourth model in the AE Techron 8500 Series of amplifiers.

AE Techron 7224 Linear Power Amplifier

Frequency Range: DC – 300 kHz
Gain: Voltage Mode: 20 V
Max Output Power: 1,100 W RMS

AE-Techron 7796HC DC Power Amplifier

Frequency Range: DC – 150 kHz
Gain: 20 V
Max Power Output: 2,499 W RMS continuous

BOLAB 100-TS Series | DC up to 1 MHz, 400 W – 18000 W

Bandwith: DC up to 1 MHz
Output: 400 W – 18000 W
For LV124 / VW80000, LV148, ISO 16750, ISO 7637, DIN 40839, and GS 95024

AE Techron 8704 Linear Power Amplifier

Frequency Range: DC – 250 kHz
Gain: 20V
Max Power Output: Up to 4 kW continuous

Front image of the BOLAB Systems BLS-130-70N-TS

BOLAB Systems BLS-130-70N-TS 4-Quadrant Voltage Amplifier

DC up to 1 MHz (small signal -3 dB)
Ouput: 3,000 W
For LV124 / VW80000, LV148, ISO 16750, ISO 7637, DIN 40839, GS 95024

AE Techron 7228 Linear Power Amplifier

DC – 1 MHz
Gain: 20V
AC Power: 1000W RMS

AE Techron 7782 RMS Power Amplifier

Frequency Range: DC – 50 kHz at full power
Gain: 20V
Max Power Output: 3305 W RMS (2 Ω)

AE Techron 7136 AC/DC Amplifier with Precision DC Power Supply

Frequency Range: DC – 150 kHz
Gain: 40 V
Max Power Output: 900 W RMS (AC)

AE Techron 9110 Amplifier

Frequency Range: DC – 250kHz (–3 dB)
Gain: 20V
Max Power Output: 5kW

AE Techron 7796 DC Power Amplifier

Frequency Range: DC – 50kHz (rated) | DC – 100kHz (reduced)
Gain: 20V
Max Power Output: 22,000 W peak (40 mSec, 0.5 Ω load)

AE Techron 7794 4-Quadrant Power Amplifier

Frequency Range: DC – 150 kHz
Gain: 20 V
Max Power Output: 5,000 W RMS (continuous)

AE Techron 8500 Series Amplifiers | DC to 50 kHz, 60 to 300 ARMS

Bandwidth: DC to 50 kHz
Current: 60 to 300 ARMS
For Mil-PRF capacitor tests, DC automotive dropout testing, and as a variable AC source for ISO 61000, Aviation and Power Quality Measurements.

Maximum Continuous Output Current	240A RMS
Surge Rating	2X power at up to 400 VP or 600A
Apparent Power Rating	Up to 5X continuous power rating at up to 600 VP or 300A
Supply Voltage	Three-phase, 208V ±10%, 60A, 50/60 Hz; 400V ±10%, 15A version available
Dimensions (HxWxD)	36.5 x 21.0 x 30.75 inches (92.7 x 53.3 x 78.1 cm)
