AE Techron 7226 Linear Power Amplifier

40 - 600 kHz, 900 W

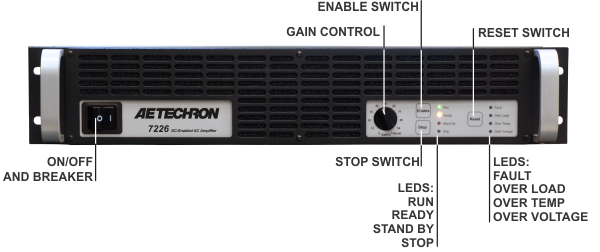

The AE Techron 7226 Linear Power Amplifier generates 900W RMS of model AC power to 20 kHz, and up to 100kHz for high-power applications. This model provides a 20Vp-p to 300 kHz small signal bandwidth and 16A of DC power at 13.5 VDC. In continuous operation, a 7226 can provide up to two times the output power of the base model at frequencies above 40 kHz. If more current or power is needed, up to four amplifiers can be combined in series or parallel and operate as a single system. The AE Techron 7226 Linear Power Amplifier can be configured by the user for high-voltage/low-current, medium voltage and current, or low-voltage/high-current applications. It provides very low noise and very fast slew rates, and can safely drive a wide range of resistive, inductive loads. The 7226 is typically used to simulate ripple, noise, drop-outs, surges and ground as required by a variety of EMC standards for DC powered electronics like DO-160, and MIL STD 461. It can also be used as a gradient amplifier for very small bore, high-gain MRI and NMR systems.

The AE Techron 7226 Linear Power Amplifier is the second model in the AE Techron 7220 DC-enabled Linear Power Amplifier Series.

Product Info Available Add-Ons Related Products

Frequency range:	40 - 600 kHz
AC power (up to 20kHz):	900 W RMS
Small signal (8V p-p):	600 kHz
For high-power applications to:	150 kHz
DC power:	16 A at 13.5 VDC
40mS pulse (0.5Ω):	50 Ap
Slew rate:	90 V/μs
Output voltage:	±150 Vp
Output impedance:	5.3 mΩ in series with 0.95μH

Up to 2X the long-term power of the 7224 atfrequencies above 40 kHz
Stable when driving highly capacitive loads
Four-quadrant operation
User-selectable controlled-voltage or controlled-current modes of operation
System output of over 3,600 watts or over 200 amperes maximum is possible with multiple, interconnected amplifiers
Occupies only 2U height and weighs only 41 lbs
Protection circuitry protects the amplifier from input overloads, improper output connection (including shorted and improper loads), overtemperature, over-current, and supply voltages that are too high or low
Shipped ready to operate from 120-volt (±10%) single-phase AC mains; 220/240-volt model available on request

SKU: AETE-7226
