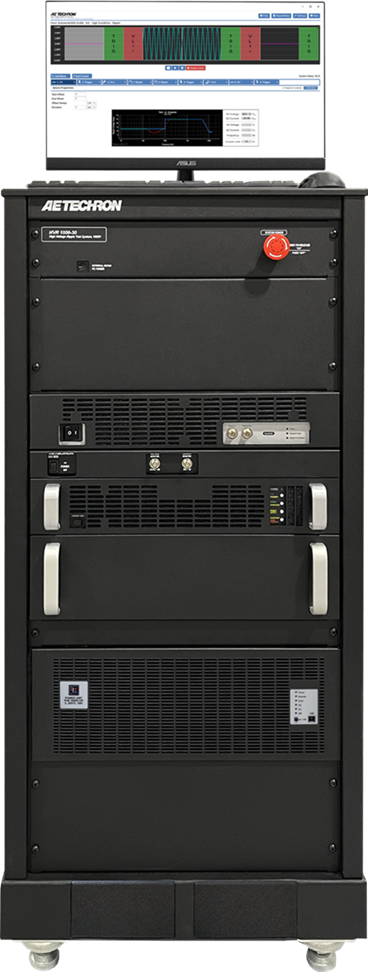

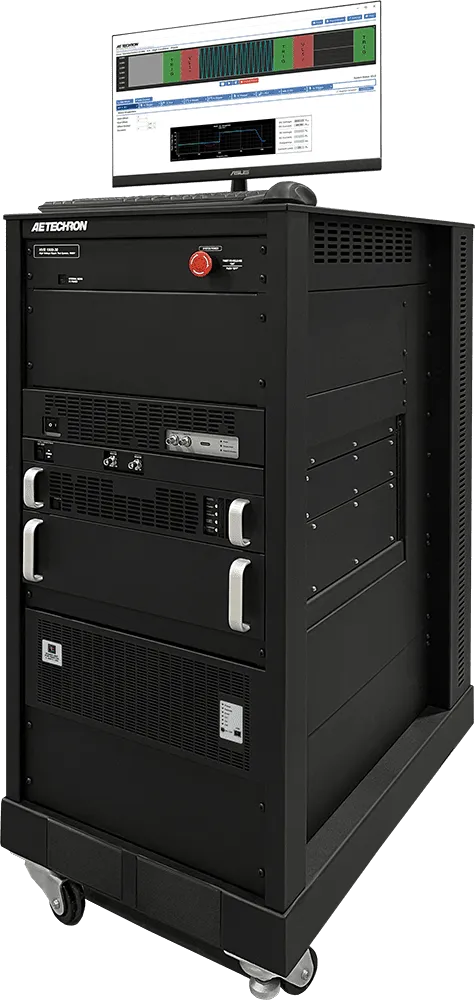

AE Techron HVR 1000 EV High-Voltage Ripple Test System

DC – 200 kHz, 60 kW

The AE Techron HVR 1000 is a high-voltage ripple test system made for electric vehicle DC power testing. It delivers up to 1000V DC, 60kW output, and supports ripple signals from 10Hz to 200 kHz with up to 50 Vp and 200 Ap. The system supports 2-quadrant DC and 4-quadrant AC operation with adjustable current, voltage, and power limits. It is compatible with standards including MBN LV123, ISO 21498-2, VW 80300, VW 80303, and MAN CVS 43:2021-01.

Product Info Available Add-Ons Related Compliance Standards Related Products

Voltage Output Range		DC: 0 – 1000V AC: 0 – 50Vp
DC Output Power		Up to 60 kW
Output Current Range:		DC: 0 – 80A AC: 0 – 50Ap, 200Ap
Ripple Bandwidth		10 Hz – 200 kHz
DC Source Impedance		0.4 – 650 Ω (variable)
Operation		DC: 2-quadrant, bi-directional
Operation		AC: 4-quadrant, bi-polar
DC Rise Time		10 ms (10% to 90%)
Supported Standards		MBN LV123, ISO 21498-2, VW 80300, VW 80303, MAN CVS 43:2021-01
Power Input		3-phase 400–480 V AC ±10%, 30 A, 50/60 Hz

High-voltage capability: Generates ripple voltages up to 1000V peak-to-peak
Precise waveform generation: Produces accurate sine, triangle, and custom waveforms from DC to 200 kHz
Integrated safety features: incorporating multiple layers of protection
User-friendly interface: intuitive controls and data logging
Expanded testing capabilities: Standards library and AC supply can be used for hundreds of automotive and aviation standards tests
