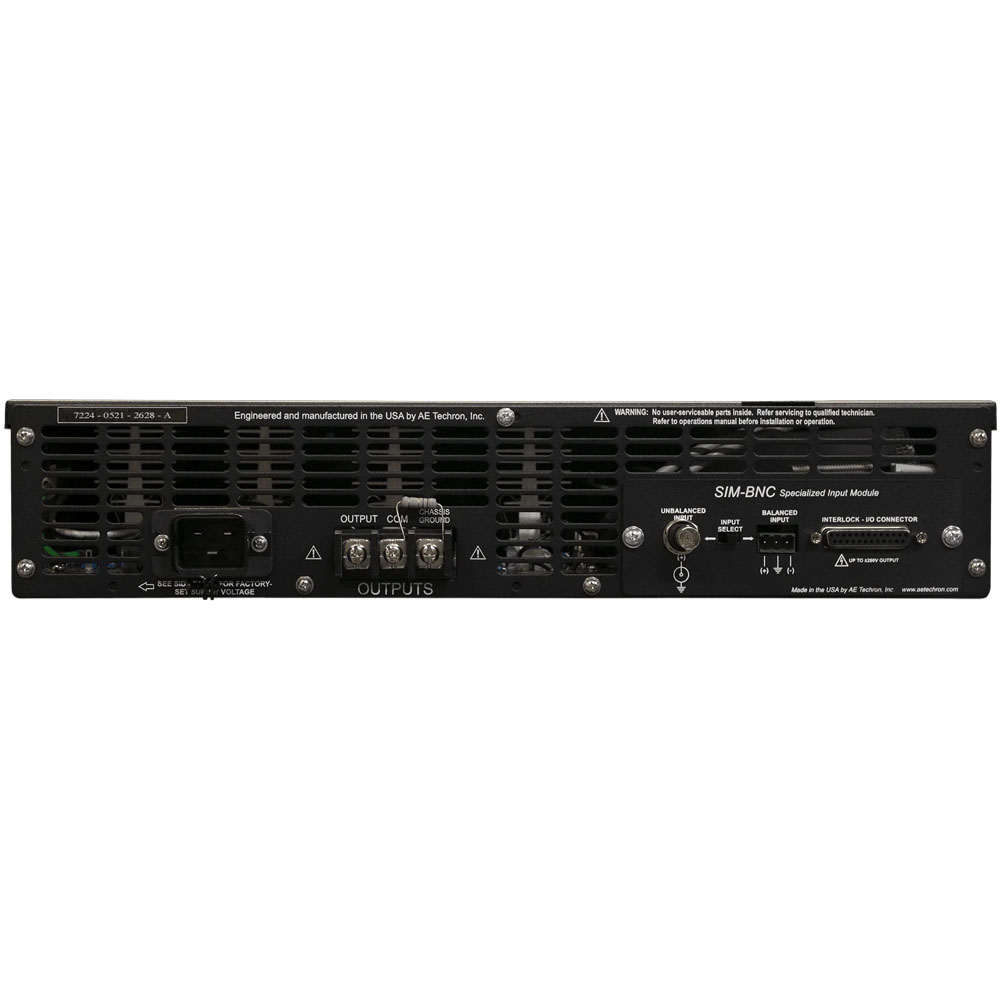

AE Techron 7224 Linear Power Amplifier

Name: AE Techron 7224 Linear Power Amplifier Rental
Brand: AE Techron
SKU: AETE-7224-rent
Price: 639.00 USD
Availability: InStock

DC - 300 kHz, 1100 W

The AE Techron 7224 Linear Power Amplifier has a frequency range of DC – 300 kHz, a gain of 20 V/V, and a max output power of 1,100 W RMS. It is a single-channel linear amplifier designed for use in demanding applications requiring low noise, low distortion, and accurate power amplification.

This unit is typically used to create waveforms found in EMC requirements like the DO-160 (Section 18 & 19), MIL-STD-461, and IEC 61000-4-16 standards.

Customers also rent:

Product Info Product Options Available Add-Ons Related Compliance Standards Related Solutions Related Products

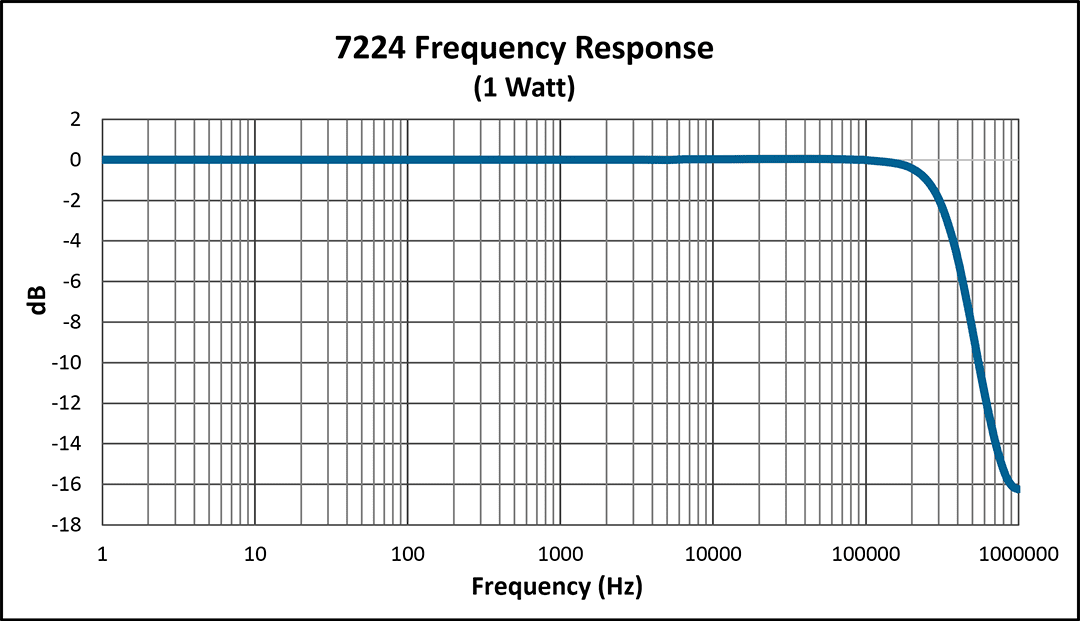

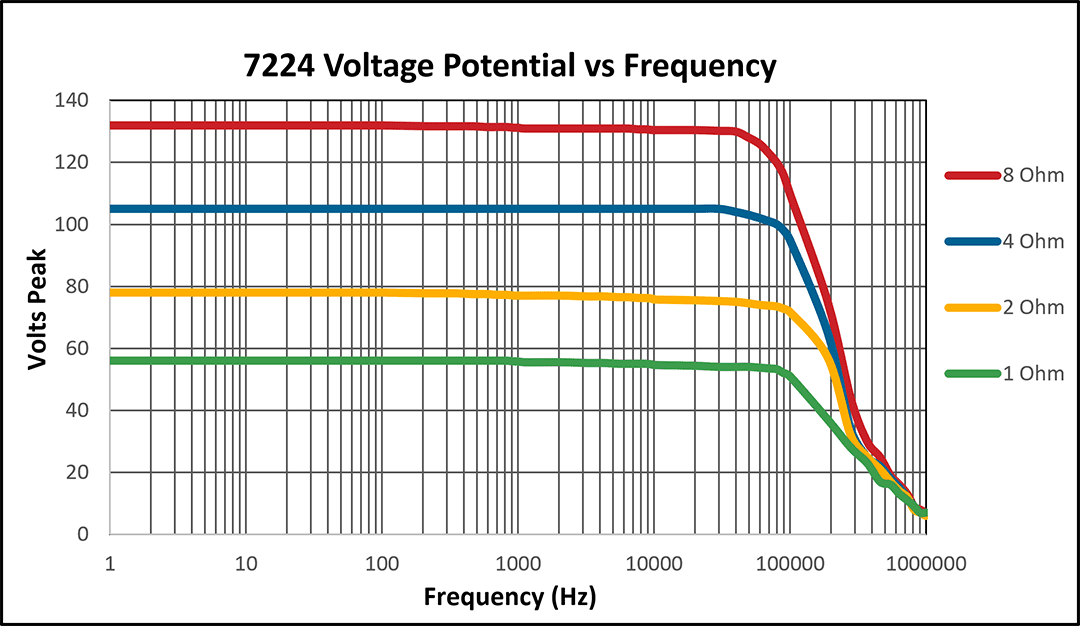

Frequency Range	DC – 300 kHz (+0.0 to –1.0 dB)
Gain	Voltage Mode: 20 V/V Current Mode: 5 A/V
Max Output Power	1,100 W RMS (continuous at 4 Ω)
Pulse Output	Up to 52 A peak (40 mSec @ 0.5 Ω)
DC Output (Low Voltage/High Current)	24 V @ 26 A (5 min) 13.5 V @ 20 A (5 min)
Output Slew Rate	75 V/µs
Input Voltage	±10 V max (balanced or unbalanced)
Signal-to-Noise Ratio	–113 dB (10 Hz – 30 kHz)
THD	< 0.1% (DC – 30 kHz)
Cooling	Forced air (180 CFM front-to-back)
Power Requirements	120 VAC, 60 Hz, 20 A (standard) 220–240 VAC, 50–60 Hz, 10 A (optional)
Dimensions	19" × 22.75" × 3.5" (2U rackmount)
Weight	41 lbs (18.6 kg)
Compliance Use Cases	CS2009, DO-160, MIL-STD-461, MRI/NMR gradient amplifier

40 mSec pulses of up to 52 amperes peak into a 0.5 ohm load.
System output of over 4,000 watts or over 200 amperes maximum is possible with multiple, interconnected amplifiers.
Efficient design and light weight chassis materials allow amplifier to occupy only 2U height and weight only 41 lbs.
Protection circuitry protects the AE Techron 7224 from input overloads, improper output connection (including shorted and improper loads), over-temperature, over-current, and supply voltages that are too high or low.
7224 with “P” option offers precision control of output offset, DC drift and gain linearity.
Shipped ready to operate from 120-volt (±10%) single-phase AC mains; 220/240-volt model available on request.

How to Video: AE Techron 7224 Industrial Amplifier

CS2009, DO-160 Section 18, MIL STD 461, IEC 61000-4-16

Ford EMC CS-2009.1 (2-11-2010)
- Pulse f1 (13.5V)
- Pulse f2 (13.5V)
- Pulse g1 (13.5V loaded condition)
- Pulse g1 (13.5V open circuit condition) NEW Pulse g2-a (13.5) (unsuppressed) Pulse g2-b (13.5V) (suppressed)

Ford FMC1278 (2-11-2010)
- CI 220:
- Pulse 2b (24V)
- Pulse 5a (12V)
- Pulse 5a (24V)
- Pulse 5b (12V)
- Pulse A1 (12V)

ISO 7637-2 (2011) (E)
- 5.6.5 Transient Immunity, Test Pulse 5A, 12V
- 5.6.5 Transient Immunity, Test Pulse 5B, 24V

ISO 16750-2 (2012-11) ( E )
- A.3.1 Load Dump Pulse Verification 12V 2ohm Load
- A.3.1 Load Dump Pulse Verification 12V No Load
- A.3.1 Load Dump Pulse Verification 24V 2ohm Load
- A.3.1 Load Dump Pulse Verification 24V No Load
- 4.6.4.2.2 Load Dump Test A (without suppression) 12V
- 4.6.4.2.2 Load Dump Test A (without suppression) 24V
- 4.6.4.2.3 Load Dump Test B (with suppression) 12
- 4.6.4.2.3 Load Dump Test B (with suppression) 24

Volkswagen VW TL 820 66 (2006-11)
- 5.2.5 Pulse 5B 42V

Avionics Tests:
- MIL-HDBK-704-8 (9-APRIL-2004)
- LDC104 28VDC, Total Ripple Condition A, 704A
- LDC104 28VDC, Total Ripple Condition A, 704B, C, D, E & F
- LDC104 28VDC, Total Ripple Condition B, 704A
- LDC104 28VDC, Total Ripple Condition B, 704B, C, D, E & F
