Amplifier Research 1000T2G8B CW TWT Amplifier


Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Amplifier Research 1000T2G8B CW TWT Amplifier

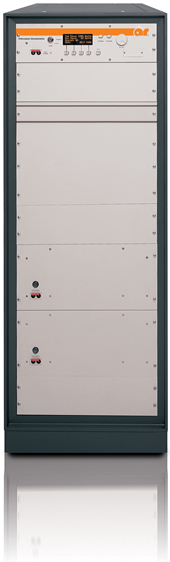

Enlarge Image
Amplifier Research 1000T2G8B
Request Quote Print Page
1000T2G8B Datasheet
The Amplifier Research 1000T2G8B is a traveling wave tube (TWT) microwave broadband amplifier with an output power of 1000 W and a frequency range of 2.5 GHz - 7.5 GHz. AR 1000T2G8B amplifiers are air-cooled, self-contained continuous wave amplification devices designed for high gain, high output power applications that call for an instantaneous bandwidth. The digital front panel of the Amplifier Research 1000T2G8B unit displays both reflected and forward output as well as system status indicators. An IEEE-488 (GPIB) interface, gain control, VSWR protection and TWT helix current monitoring are built in to the device. AR 1000T2G8B models conduct EMC radiated susceptibility testing for fields like industrial manufacturing and defense.

Amplifier Research 1000T2G8B Features
  • 1000 W CW
  • 2.5 GHz - 7.5 GHz
  • TWT amplifier, broadband, instantaneous bandwidth
  • IEEE-488 (GPIB) interface
  • VSWR protection, gain control, monitoring of TWT helix current
Amplifier Research 1000T2G8B Specs
POWER Nominal: 1100 W
Minimum: 900 W, 2.5–2.7GHz / 1000 W - 2.7–7.5 GHz
FLATNESS ±8 dB maximum, equalized for ±3 dB maximum at rated power
FREQUENCY RESPONSE 2.5–7.5 GHz instantaneously
INPUT FOR RATED OUTPUT 1.0 mW maximum
GAIN (at maximum setting) 60 dB minimum
GAIN ADJUSTMENT (continuous range) 35 dB minimum
INPUT IMPEDANCE 50 ohms, VSWR 2.0:1 maximum
OUTPUT IMPEDANCE 50 ohms, VSWR 2.5:1 typical
