Advanced Amplifiers AA-2640G-40 Solid State Amplifier | 26 - 40 GHz, 40 W

Categories

Documents

Datasheet

The Advanced Amplifiers AA-2640G-40 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 26 - 40 GHz and generates 40 W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-2640G-40 has a power gain of 46 dB minimum and operates with an input of 100 - 240 VAC single-phase (800 W).

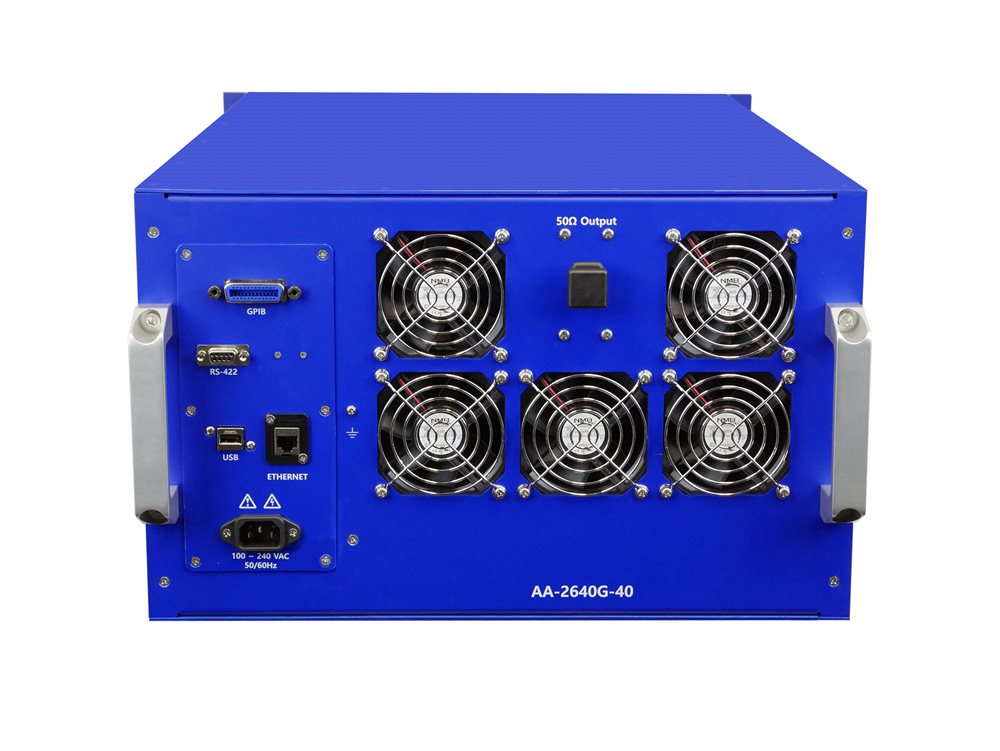

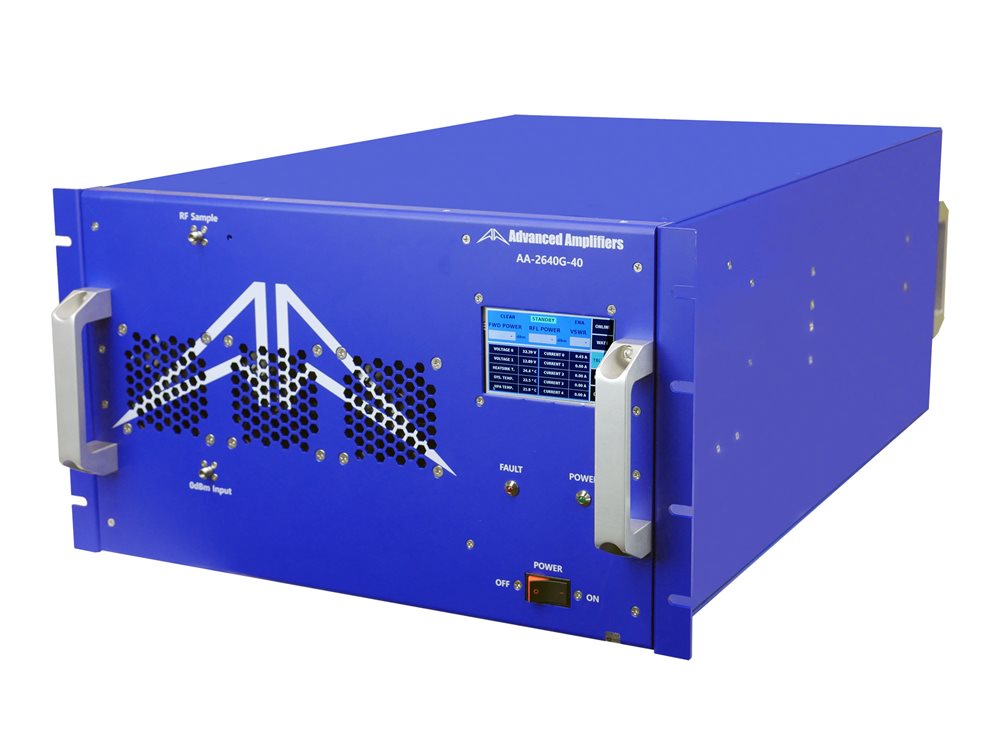

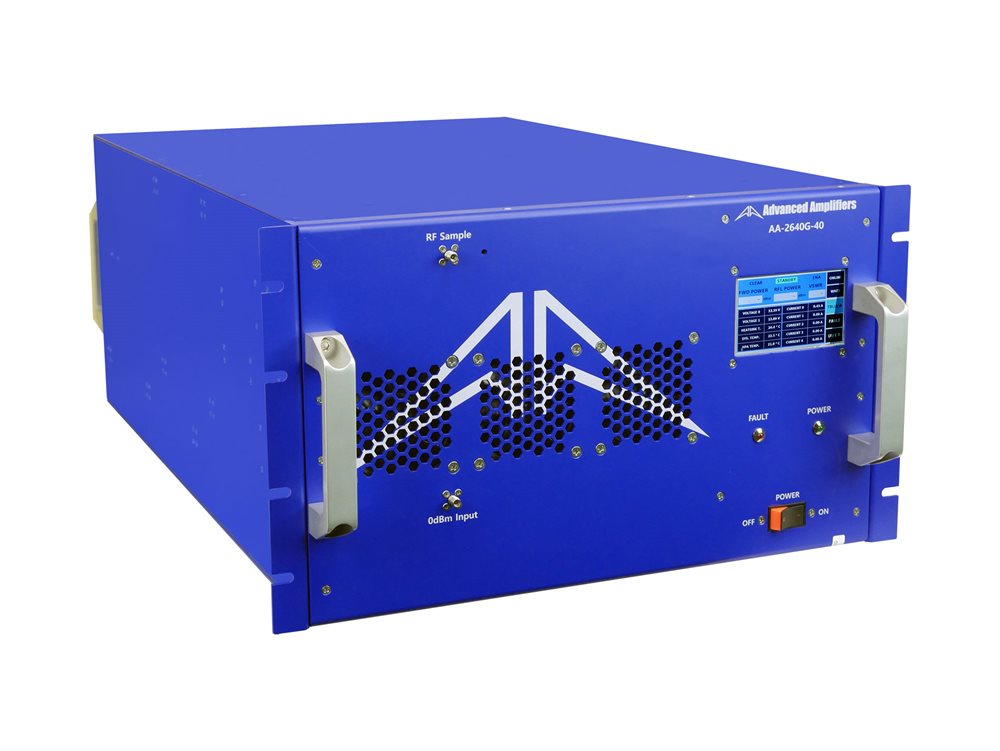

The AA-2640G-40 is lightweight and has a low-profile (6U) build compared to standard amplifiers with the same specifications, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifiers AA-2640G-40 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Rack mounted system
Class AB linear GaAsFET design
Instantaneous wide bandwidth
Suitable for all single channel modulation standards
Local LCD & remote flexible interfaces
Designed for EMI/RFI, lab, and general communication applications
High reliability and ruggedness

Specifications

Parameter	Specification	Notes
Operating Frequency Range	26.5 - 40.0 GHz
Power Output CW	40 Watt Min
Power Gain	46 dB Min
Power Gain Flatness	4.0 dB p-p Max	Constant input power
Input Return Loss	10 dB Min	Relative to 50 Ohm
2-Tone Intermodulation (IMD)	-30 dBc Typ	34dBm/Tone, Δ = 1MHz
Harmonics	-20 dBc Min	At rated Pout
Spurious	60 dBc Min	Non-harmonics
Operating Voltage	100 - 240 VAC
Power Consumption	800 Watt Max
Input Power Protection	+3 dBm Max	<10 Sec without damage
Load VSWR Protection	5:1	<1 minute at rated Pout
Operating Ambient Temperature	0 to +50 °C
Storage Temperature	-40 to +85 °C
Relative Humidity	5 to 95 %	Non-condensation
Dimensions W x H x D	6U Rack Mounted Chassis	6U
Weight	35 kg.
RF Connectors In/Out	2.9 mm (K / air type) Female
AC Power / Interface Connector	IEC 60320-C14 / 9-Pin D-Sub	Or equivalent
Cooling	Built in Fan Cooling	Variable speed
EMI SERIES: Digital Monitor & Control FWD, REV, VSWR, GAIN, ALC, V & I, TEMP	Ethernet RJ-45 TCP/IP, RS422/485 Optional GPIB Interface	Remote Bluetooth application
