Fluke Networks

Fluke CFP-100-Q CertiFiber Pro Optical Loss Test Set

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery
Fluke CertiFiber Pro Larger

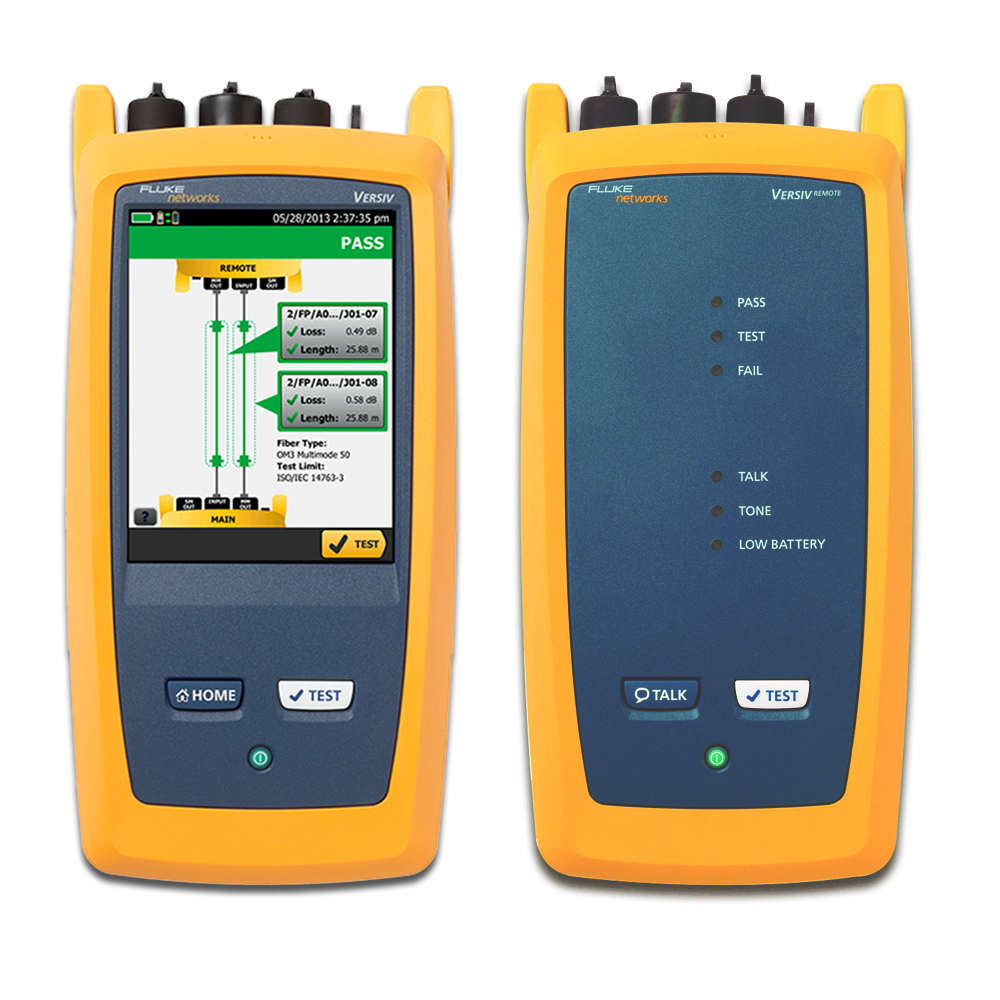

Fluke CFP-100-Q CertiFiber Pro Optical Loss Test Set
Fluke CFP-100-Q CertiFiber Pro Optical Loss Test Set
Categories
  • Fiber Certifiers
    Fiber Certifiers
  • Fiber Testers
    Fiber Testers
  • LAN Cable Testers
    LAN Cable Testers
Documents
  • Accessory Kit
  • Datasheet
  • Print
  • Email
The Fluke CFP-100-Q CertiFiber Pro Optical Loss Test Set performs fiber certification at the industry-leading speed of two fibers at two wavelengths in less than three seconds. The Fluke CFP-100-Q has an operating temperature of 0°F to 113°F (-18°C to 45°C) and an operating relative humidity of 0% to 90% at 32°F to 95°F (0°C to 35°C) and 0% to 70% at 95°F to 113°F (35°C to 45°C). This user-friendly Fluke fiber certifier uses the ProjX management system and the LinkWare management software.

The Fluke CFP-100-Q solves fiber certification challenges, generating easy-to-understand test reports and meeting test standards IEC 14763-3, ANSI/TIA, ISO/IEC, and IEC 61300-3-35. Fluke CertiFiber Pro OLTS instruments are the Tier 1 fiber certification testing solution in Fluke’s Versiv cable certification family. The CertiFiber Pro can also pair with the OptiFiber Pro OTDR to perform Tier 2 fiber tests.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Optical loss test set with fastest time to certify – two fibers at two wavelengths in under three seconds.
  • Encircled Flux compliant as required by ANSI/TIA and ISO/IEC.
  • Merged Tier 1 (Basic) / Tier 2 (Extended) testing and reporting when paired with OptiFiber Pro OTDR.
  • ProjX management system ensures all jobs are completed correctly and efficiently.
  • Optical loss test set provides automatic Pass/Fail analysis to industry standards or custom test limits.
  • Double ended Pass/Fail certification of fiber optic connector endfaces.
  • Graphical indication of problem areas on fiber endfaces due to contamination, pits, chips and scratches.
  • Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection.
  • Taptive user interface provides simple, animated guidance to eliminate incorrect reference setup and “negative loss” errors.
  • Convenient quad module supports both multimode and singlemode loss testing.
  • Extended singlemode distance range to 130km.
  • Optical loss test set with built in Visual Fault Locator.
  • Analyze test results and create professional test reports using LinkWare Management Software.
  • Compatible with LinkWare Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC Cable Test Management Software.
Specifications
Input Connector Interchangeable connector adapter (LC standard, SC, ST and FC optional)
Detector Type InGaAs
Wavelengths 850 nm, 1300 nm, 1310 nm, 1550 nm
Power Measurement Range 0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)
Power Measurement Uncertainty < +/- 5% +/- 32 pW
Measurement Linearity < ± 0.1 dB
Re-calibration Period 1 year
Integrated Wi-Fi Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
See datasheet for more specifications
Applications
Learn More About Fiber Optic Cable Testing
Options
Accessories

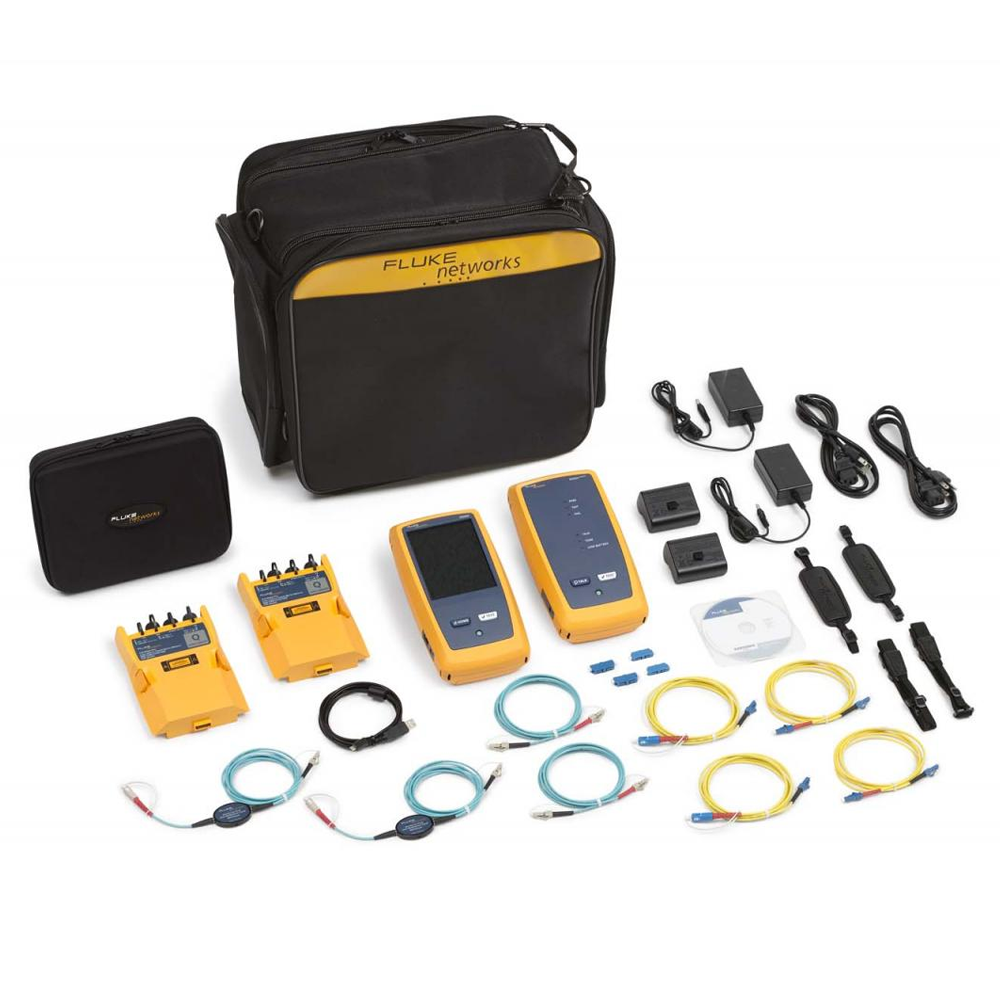

Standard Kit Includes:
  • 1 Each | FLUK-4328634 | Main Assy, Versiv
  • 1 Each | FLUK-3963349 | Remote Assy, Versiv
  • 2 Each | FLUK-4178119 | OLTS LL Module Quad
  • 2 Each | FLUK-3931705 | Battery Pack (In Mainframe)
  • 1 Each | FLUK-4201642 | Carry Case, Double Ended Testing
  • 1 Each | FLUK-2114485 | LinkWare Software CD ver. 9.0
  • 1 Each | GENE-USB-3 | USB Cable type A to Micro B
  • 2 Each | FLUK-946769 | Quick Release Instrument Strap
  • 2 Each | FLUK-3460284 | Hand Strap
  • 1 Each | FLUK-4329393 | Versiv Product Manuals CD
  • 1 Each | FLUK-4343722 | Getting Started Guide
  • 2 Each | FLUK-3401220 | LC-LC Simplex Adapter
  • 1 Each | FLUK-4320262 | MRC-50EFC-SCLCkit, LC TRC LVM kit w/ 2 MC-50-LV
  • 1 Each | FLUK-4335564 | SRC-9-SCLC-Kit, Single Mode TRC Kit
  • 1 Each | FLUK-4324880 | Carry Case for test reference cord
  • 2 Each | GENE-15V-2.0A | AC Power Supply Adapter
  • 2 Each | GENE-PC-5-15A | Power Cord 120V 15A
  • 5 Each | CLEA-CT811 | Optical Cleaning Pad
  • 1 Each | FLUK-MRC-625EFC-SCLCKIT | Multimode Encircled Flux Compliant Test Reference Cord Kit for Testing 62.5um LC Terminated Fibers
Optional kits for SC, ST, and FC connectors available.
Standards
Media

CertiFiber Pro Overview




Setup - Part 1




Setup - Part 2

Customize Quote
Instant Quote

RELATED PRODUCTS

Fluke CertiFiber Pro 2 Optical Loss Test Set
Fluke CertiFiber Pro 2 Optical Loss Test Set
Fluke DSX 5000 CableAnalyzer
Fluke DSX-5000 CableAnalyzer
Fluke OFP-100-QI
Fluke OptiFiber Pro OFP-100-QI OTDR
Anritsu Network Master Pro MT1000A
Anritsu MT1000A Network Master Pro | Ethernet / CPRI / OTDR
Fluke Versiv Cable Certification Family
Fluke Versiv Cable Certification Family
NetScout OptiView XG Network Analysis Tablet
NetScout OptiView XG Network Analysis Tablet
ODM TTK 500 Test, Inspection & Cleaning Kit
ODM TTK 500 SM/MM Test, Inspection & Cleaning Kit
Fluke MultiFiber Pro Optical Power Meter and Fiber Test Kits
Fluke MultiFiber Pro Optical Power Meter and Fiber Test Kits
ODM TTK 650 Test, Inspection and Cleaning Kit
ODM TTK 650 SM Test, Inspection and Cleaning Kit
Fluke DSX-8000 Cable Analyzer
Fluke DSX-8000 Cable Analyzer
IDEAL LanTEK III 500MHz Data Cable Certifier
IDEAL LanTEK III 500MHz Data Cable Certifier
NetScout OneTouch AT G2 Network Assistant
NetScout OneTouch AT G2 Network Assistant
Fluke FTK1450 Complete Verification Kit
Fluke FTK1450 Complete Verification Kit
Fuke Versiv OneTouch AT 10G Network Assistant
Fluke Versiv OneTouch AT 10G Network Assistant
NetScout 1T-3000 OneTouch AT Network Assistant
NetScout 1T-3000 OneTouch AT Network Assistant
Exfo FOT-932X-4-VFT-A-EI Multifunction Loss Tester
Exfo FOT-932X-4-VFT-A-EI Multifunction Loss Tester
Viavi FIT-S105-PRO Optical Power Meter
Viavi FIT-S105-PRO Optical Power Meter
Viavi P5000 Digital Probe Microscope and FiberChekPro
Viavi P5000 Digital Probe Microscope and FiberChekPro
Fluke CableIQ Qualification Tester
Fluke CableIQ Qualification Tester
Viavi SmartPocket OLP-35 Optical Power Meter
Viavi SmartPocket OLP-35 Optical Power Meter
AEM TestPro CV100-K61 Copper and Fiber Certification Kit
AEM TestPro CV100-K61 Copper and Fiber Certification Kit
AFL / Fujikura FSM-60R12 Ribbon Fusion Splicer
AFL / Fujikura FSM-60R12 Ribbon Fusion Splicer
Amphenol FSI 525N-30 Multimode Optical Line Tester
Amphenol FSI 525N-30 Multimode Optical Line Tester
Anritsu MT9083A2-VZW Quad OTDR kit for Verizon Tower Testing
Anritsu MT9083A2-VZW Quad OTDR kit for Verizon Tower Testing
Anritsu MT9085A Series ACCESS Master OTDR
Anritsu MT9085A Series ACCESS Master OTDR
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
