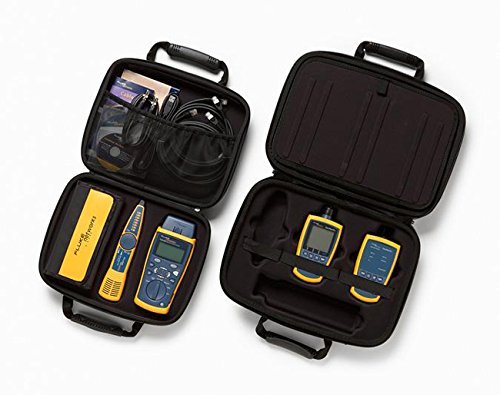

| General Specifications |
| Cable types supported |
UTP, STP, FTP, SSTP, RG6, RG59, audio, security |
| Qualification autotests |
1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax |
| Supported tests |
Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection |
| Find fault |
Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application |
| Results storage |
Up to 250 qualification test results |
| Power |
Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries |
| Battery life |
20 hours of typical use, without backlight |
| Other battery types supported |
4AA photo lithium, NIMH, NICAD |
| Dimensions and weight |
7 in x 3.5 in x 1.75 in (17.8 cm x 8.9 cm x 4.5 cm) 1.2 lb (0.55 kg) |
| M12/ RJ45 Cable Specifications |
| Cable type |
Ethernet cable, Cat5e, shielded, 2 Pair AWG 26 stranded (7 wire), RAL 5021 (water blue), M12 4 pos. D- coded on RJ45 connector |
| Number of positions |
4 |
| Fixed cable length |
2 m |
| Volume resistance |
≤ 5 m Ω |
| Insulation resistance |
≥ 100 M Ω |
| Ambient temperature |
-20°C to 50°C |
| Inflammability class acc to UL 94 |
V0 |
| Surge voltage category |
II |
| Pollution degree |
3 |
| Degree of protection |
IP20/IP67 |
| External cable diameter |
6.7 mm |
| Transmission characteristics |
Cat 5 (IEC 11801:2002), Cat 5e (TIA 568B:2001) |
