Associated Research 5321A Portable 100 kVDC Hipot Tester
Enlarge Image
Associated Research 5321A
Request Quote Print Page
For Non-Destructive Field Testing of Cable & Equipment

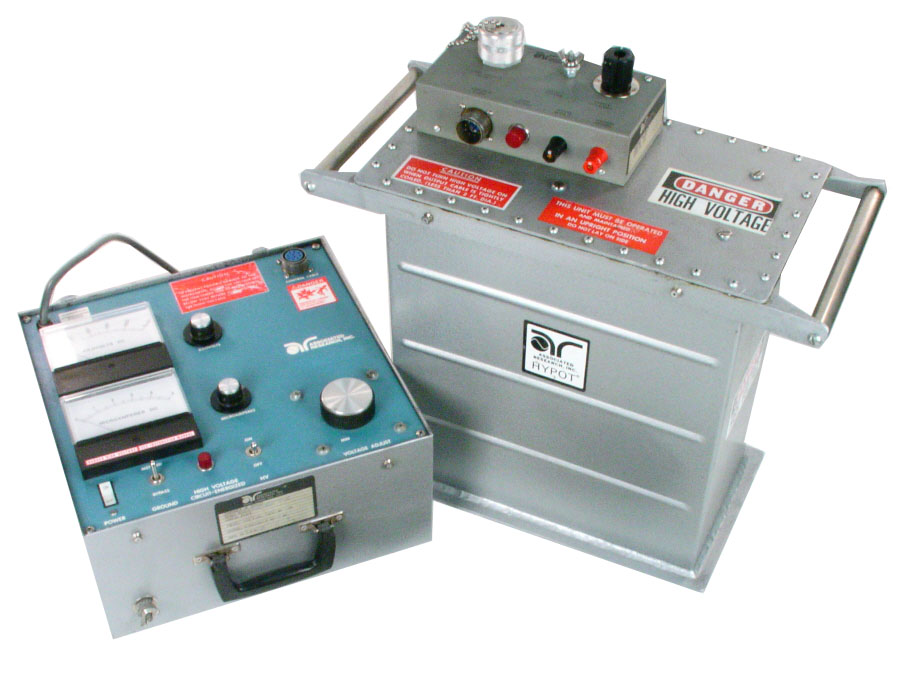

The Associated Research 5321A is a two piece 100KVDC Portable DC Hypot system. The operator controls the test set through a separate control section containing no circuits at more than 115 volts. The high voltage section consists of a sealed oil filled reinforced aluminum tank containing all the high voltage components. This type of packaging offers maximum safety for the operator by keeping the high voltage away from the controls.

Associated Research 5321A Specs
  • Input: 115V 50/60 Hz
  • Output: 0 -0100 KVDC at 5 MA
  • Duty Cycle: Continuous
  • Metering (KV Meter): Scaled 0-25/50/100 KV
         500/1000/2000 volt reading resolution
  • Current: 0-5/50/500/5000 microamps
         0.1/1/10/100 microamp reading resolution
  • Failure Detector: Current sensitive overload system monitoring current in return side of output. Fixed sensitivity of 5 MA
