V60 Series Programmable AC-DC Hipot / Electrical Safety Testers

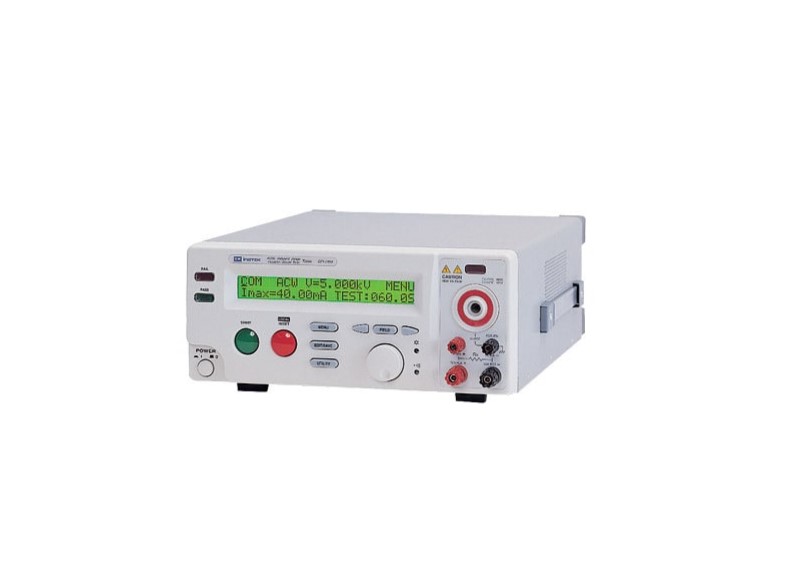

Enlarge Image

Vitrek V60

Request Quote Print Page Email Page

V60 Datasheet

AC Safety Analyzer, 5kV AC Hipot

Models:

V60 AC Hipot Electrical Tester
V61 AC/DC Hipot Electrical Tester
V63 AC/DC/IR Hipot Electrical Tester

Features
Specifications

Vitrek V60 Features

Fully automated testing at the touch of a button or via RS232 & PLC control (GPIB optional)
Three models to choose from - select the functions you need to get the job done
Available Quicktest™ test automation software for your PC
AC Hipot to 5kV with 40mA
DC Hipot to 6kV with 10mA
Insulation Resistance to 2GW with selectable 50, 100, 500, & 1000VDC outputs
Ground Continuity to 0.001W
Two 16 Channel Scanners Optionally Available
Built-in 160 Step Test Memory
Programmable Ramp & Dwell Times, Output Voltages and Limits
Selectable Arc Detection
Data Lockout Feature
CE Mark Certified to EN61010

Vitrek V60 Specs

AC Hipot (V60-V61-V63) (V60 is AC Hipot Only)
Voltage Range	0.100KV to 5.000KV
Voltage Setting	5 Volt Increments
Voltage Regulation (Line & Load)	1% + 5V
Voltage Accuracy	1% of reading + 10V
Current Sourcing	30 to 40mA (above 500V, 180sec. max.)
	0 to 29.99mA (above 500V, continuous)
	0 to 10mA (below 500V, continuous)
Current Limit Range	0 to 10mA (below 500V, continuous)
Current Accuracy	1.5% of reading + 50µA
DC Hipot (V61, V63 only) (V61 is AC-DC Hipot only)
Voltage Range	0.100KV to 6.000KV
Voltage Setting	5Volt Increments
Voltage Regulation (Line & Load)	1% + 5V
Voltage Accuracy	1% of reading + 10V
Current Sourcing	0 to 10mA (above 500V, continuous)
Current Sourcing	0 to 2mA (below 500V, continuous)
Current Limit Range	0.10 to 10mA, 0.01mA/step
Current Accuracy	1.5% of reading + 50µA
Insulation Resistance (V63 only)
DC Output Voltage	50V / 100V 500V / 1000V
Resistance Accuracy 50V/100V	1 to 50MW: 5% of reading
	51 to 200MW: 10% of reading
	201 to 2000MW: 20% of reading
Resistance Accuracy 500V/1000V	1 to 500MW: 5% of reading
	501 to 2000MW: 10% of reading
	2001 to9900MW: 20% of reading
Continuity Measurement (V60, V61, V63)
Test Current	100mA
Resistance Range	0.001 to 1.500Ω
Resistance Accuracy	±0.075Ω
General
Test Current	10 test sequences with up to 16 steps per test sequence
Data Lockout	Prevents database edit while in lockout mode
Arc Detect	40 level (1 to 40mA)

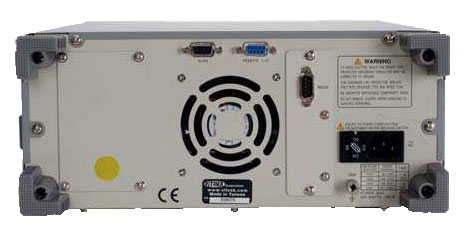

Serial Port	9600 Baud, fully bi-directional RS232 interface with PC cable included
GPIB	Option GP-60, IEEE-488 interface
PLC Interface	9-pin D-sub connector with outputs of Testing, Pass, Fail and inputs of Start, Reset. Output isolation is 400V with 130mA continuous load current
Scanner Interface	Control port for V16 and V17 HV Scanners
Timer Accuracy	0.25% ± 50mS
Power Source	AC 100V, 120V, 220V, 230V at ± 10% 50/60Hz
Operating Environment	Indoor use, altitude up to 6500ft (2000m). Installation Category II. Pollution Degree 2
Operating Temperature	0°C to 40°C, 80% RH max
Storage Temperature	-10°C to 70°C, 70% RH max
Dimensions	17.6"L x 13"W x 5.9"H
Dimensions	446L x 330W x 149H mm
Weight	30 lbs (14kg) Net, 34 lbs (16 kg) Ship
Accessories	NIST certification, TL-20-60 Alligator Test Leads, serial interface cable, instruction manual and power cord
Accuracy	Stated specifications apply for one year at 23°C ± 5°C
Calibration	ANSI/NCSL Z540 Certificate of calibration, with data, traceable to NIST provided
Compliance	CE Mark Certified to EN61010 and EMC directive EN50081-1 & EN50082-2
Warranty	1 year parts and labor standard.
