HV Diagnostics HVA60 VLF & DC Hipot Tester
- 62 kV peak, 44 kV RMS @ 40 mA
- For testing cables rated to 35 kV
- Input voltage: 110 - 240 VAC ±10% (50/60Hz)
OMICRON CP TD1 Capacitance & Tan Delta Test Unit
- Compact and rugged all-in-one test set
- Wider frequency range for more sensitivity (15 Hz – 400 Hz)
- Testing at variable frequencies for better condition diagnosis
High Voltage PTS-200 Portable DC Test Set
- 0 – 200kV DC @ 5mA
- Negative Polarity
- Positive Ground
Hipotronics 840PL | 40kV
- DC hipot test up to 40kV, 10mA
- Lightweight, rugged design for field use (57 lbs / 25.8kg)
- Measures output voltage, leakage current, insulation resistance (IR), and polarization index (PI)
Phenix Technologies PAD-10-25 AC/DC Hipot Megohmmeter
- 0 - 10kV AC @ 10mA / 0 - 25kV DC @ 5mA
- Negative Output
- Positive Ground
Doble M4100 Power Factor Insulation Analyzer
- 47 - 63 Hz
- 25 V - 12 kV Source Output
- Typical Accuracy: ± 0.005%
Doble M4000 Power Factor/Tan-Delta Instrument
- Totally eliminates substation signal interference with Doble's patented Line Frequency Modulation technology
- Generates its own clean test signal for the most reliable and repeatable results
- The highest power to better replicate in service condition
Megger IDAX300 Insulation Diagnostic Analyzer
- Fast and accurate moisture assessment in power transformers
- Well proven technology; IDAX300 units have been in field use for more than 10 years
- Reliable results at any temperature
HV Diagnostics HVA45TD LF/DC Hipot Tester
- High test load capacity of 10 µf
- USB and Bluetooth connectivity
- Automatic, easily programmable test sequences
HV Diagnostics HVA28TD VLF/DC Hipot Tester
- 5-in-1 universal high voltage and diagnostic testing system
- Integrated Tan Delta measurement system
- Output current of 0 to 20 mA
HV Diagnostics HVA 30 4 in 1 Universal High Voltage VLF and DC Hipot Tester
- Smallest, lightest, most advanced universal high voltage test instrument available.
- VLF (0.1Hz), DC, Cable Fault Conditioning (Burning), and Sheath/Jacket Testing modes all included.
- Fully Automatic or manual cable test sequences
Hipotronics HHDA13-280 Grounding Stick
- External safety grounding device
- Grounding Stick with a 25 ft braided lead, rated to 120 kV
- Used with 100HVT-DI and 120HVT-DI Hipots
Hipotronics HD140 AC/DC Benchtop Hipot Tester
- Continuously adjustable test voltage
- Shielded output cable
- Adjustable overload from 10 to 110% of rated current output
Hipotronics HD125
- 0 - 12.5kV AC @ 5mA
- Negative Polarity
- Positive Ground
Hipotronics HD115 Hipot Insulation Tester
- Two Tests in One Unit - Eliminates need for purchasing separate AC and DC Hipot
- Meets Industry Specifications - Tests to most UL, CSA, VDE, IEC, MIL, BSI, BABT and other industry standards for Dielectric Withstand Testing
- Rack Mountable - Easy installation into a 19" rack
Hipotronics HD103 Hipot Insulation Tester
Hipotronics H306B Hipot Insulation Tester / Megohmmeter
Hipotronics H301B AC/DC Hipot and Megohmmeter
Hipotronics H103 AC / DC Hipot Tester

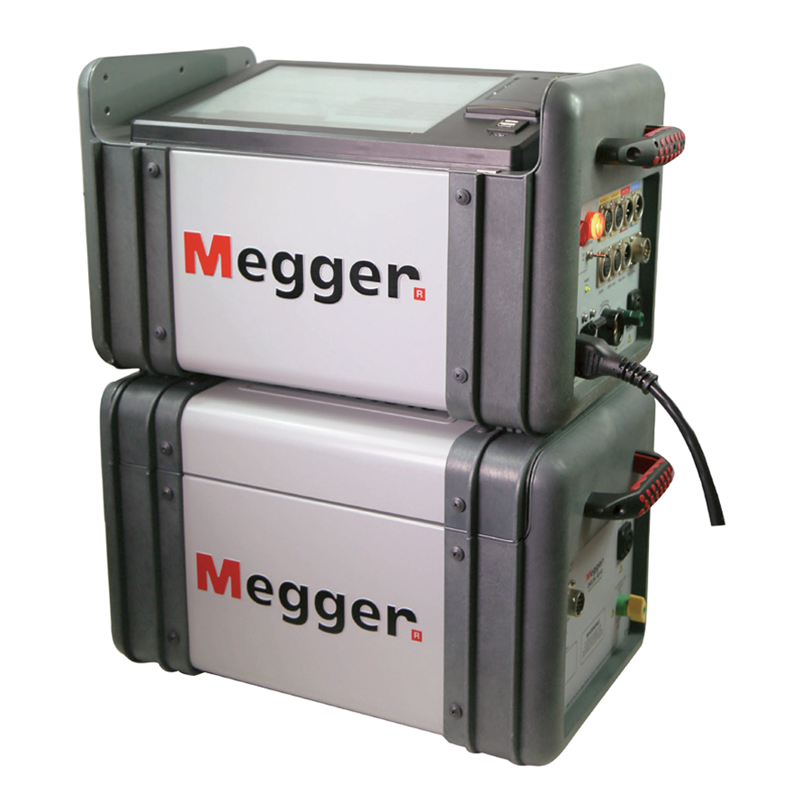

Megger DELTA-4310 Power Factor (Tan Delta) Test Set
- Easy to use with automatic and manual operation
- Accurate and repeatable measurement results with high noise suppression for the most extreme conditions
- Lightweight, rugged two-piece design, with unit weights of 14 kg and 22 kg
Megger DELTA 4110 Power Factor Test Set
- Easy to use with automatic and manual operation
- Accurate and repeatable measurement results with high noise suppression for the most extreme conditions
- Lightweight, rugged two-piece design, with unit weights of 14 kg and 22 kg
Megger DELTA 4000 Series 12 kV Insulation Diagnostic System
- Easy to use with automatic and manual operation
- Accurate and repeatable measurement results with high noise suppression for the most extreme conditions
- Lightweight, rugged two-piece design, with unit weights of 14 kg and 22 kg
OMICRON CPC 100 Multi-functional Primary Test System
- Max Output Current (AC): 800A
- Max Output Current (DC): 400A
- Input Voltage: 300V
Hipotronics 880PL-DC | 80kV
- 100V - 80kV DC @ 10mA
- Negative Polarity
- Positive Ground
Hipotronics 840PL-HD Digital DC Hipot Tester
- 0.4 - 40kV DC @ 10mA
- Negative Polarity
- Positive Ground
