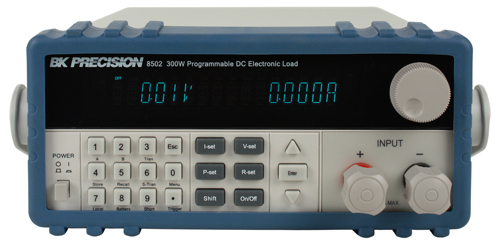

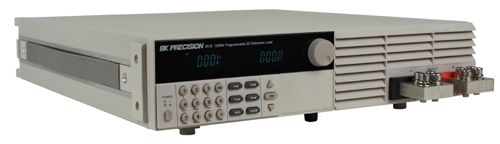

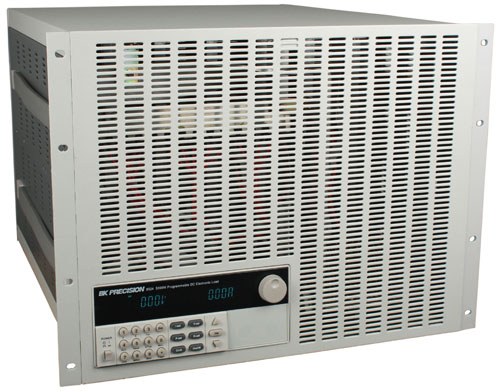

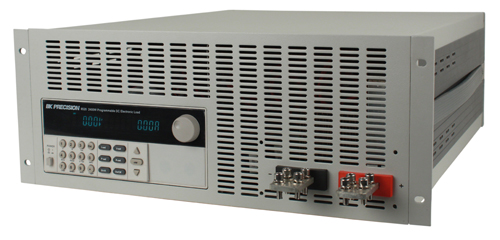

The B&K Precision 8500 Series consists of 10 Programmable DC Electronic Load instruments that are used for testing and evaluating a variety of DC power sources. B&K Precision 8500 Series units offer operating ranges of up to 500V and 240A. Flexible operating modes and excellent measurement accuracy make the 8500 series well suited for characterizing DC Power supplies, DC-DC Converters, batteries, fuel cells and solar cells. B&K 8500 series loads can operate in Constant current (CC), Resistance (CR), Voltage (CV) and Power (CP) mode while voltage/current or resistance/power values are measured and displayed simultaneously. The B&K 8500 series provides a built-in transient generator which can be used in all operating modes.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Constant current (CC), resistance (CR), voltage (CV) and power (CP) operation.
8500 Series contains models with wide voltage and current range, 0 to 500 V, 0 to 240 A (5000 W max).
Built-in transient generator.
Short circuit test.
Built-in high resolution (0.1 mA/1 mV) voltage and current measurement (models 8500 & 8502).
Over-Current/Over-Voltage/Over-Power/Over-Temperature Protection.
USB to TTL serial converter cables and application software included.
List mode operation for increased throughput.
Battery testing mode to provide A*hr rating of battery (ending voltage level is adjustable).
Flexible triggering: Create trigger events by front panel keystroke, back panel TTL signal, or software.
Remote voltage sensing to compensate for the effect of voltage drop in wires.

Specifications

Model	Power	Voltage	Current
8500	300W	0.1 - 120V	30A
8502	300W	0.1 - 500V	15A
8510	600W	0.1 - 120V	120A
8512	600W	0.1 - 500V	30A
8514	1200W	0.1 - 120V	240A
8518	1200W	0.1 - 60V	240A
8520	2400W	0.1 - 120V	240A
8522	2400W	0.1 - 500V	120A

Applications

DC power supply testing.
Characterization of rechargeable batteries. A battery test mode is provided that will measure the ampere*hour (A*hr.) characteristic of a battery.
Fuel and solar cell test.
High voltage applications.
