Megger Torkel 950 Battery Load Unit
Enlarge Image
Megger Torkel 950
Request Quote Print Page
Torkel 950 Datasheet
The Megger Torkel 950 Battery Load Unit is a discharge test system which discharges energy at up to 220A and 500V, providing technicians with a comprehensive insight into battery capacity. Multiple Megger Torkel 950 Battery Load Units can be linked together in situations requiring higher current. Constant current, constant power and constant resistance testing can be conducted with Megger Torkel 950 devices, or testing in accordance with a pre-selected load profile. In conjunction with a cell voltage logger connected directly to the Torkel 900 called the BVM, the Megger Torkel 950 Battery Load Unit is a complete stand-alone discharge test system. After starting the discharge, the Megger Torkel 950 keeps the current constant at the preset level. When the voltage drops to a level slightly above the final voltage, Torkel issues an alarm. If the voltage drops so low that there is risk of utterly discharging the battery, the device shuts down the test. All values are stored and easily be transferrable via an USB-stick to a PC for evaluation. Testing can be carried out without disconnecting the battery from the equipment it serves; via a DC clamp-on ammeter, the Megger Torkel 950 measures total battery current while regulating it at a constant level. Furthermore, the high discharge capacity of the device is an opportunity to shorten test times.

Megger Torkel 950 Features
  • Display range: 0.0 to 2999.0 A
  • Basic inaccuracy: ±(0.5% of reading +0.1 A)
  • Resolution: 0.1 A
  • Internal current measurement range: 0 to 220 A
  • Voltage measurement: 0 to 500 V DC
  • Inaccuracy: ±(0.5% of reading +0.1 V DC)
  • Mains voltage: 100 – 240 V AC, 50/60 Hz
  • Power interruption: 40 ms (max)
  • Protection: Thermal cut-outs, Automatic overload protection, Emergency stop button
  • Display: 7" LCD, Capacitive touch screen
  • Available languages: English, French, German, Spanish, Swedish
  • Dimensions: 519 x 315 x 375 mm, (20.5” x 12.4” x 14.7”)
  • Weight (unit only): 19.5 kg (43.0 lbs)
  • Megger Torkel 950 warranty: One year
  • Transport case Large - For Torkel and standard cables
  • TXL830 Extra load - Incl. Cable set GA-09550, Transport case
  • TXL850 Extra load - Incl. Cable set GA-09550, Transport case
  • TXL870 Extra load - Incl. Cable set GA-09550, Transport case
  • TXL890 Extra load - Incl. Cable set GA-09550, Transport case
  • Cable set for TXL830 and TXL850 - 2 x 3 m, 70 mm2, with cable lug. Max 100 V, 270 A. Weight: 5.0 kg (11 lbs)
  • Cable set for TXL870 and TXL890 - 2 x 3 m, 25 mm2, with cable clamp. Max 480 V, 110 A. Weight: 3.0 kg (6.6 lbs)
  • Sensing lead set - Cable set for measuring voltage at battery terminals. 2 x 5 m (16.4 ft)
  • DC clamp-on probe, 200 A - To measure current in external circuit.
  • DC clamp-on probe, 1000 A - To measure current in external circuit.

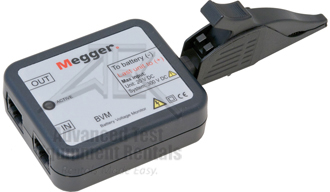

  • BVM, Single unit - Incl. Control cable black RJ45 0.5m (1.6 ft).
  • BVM150 - System of 16 BVM units.
  • BVM300 - System of 31 BVM units.
  • BVM special 600 V - System of 46 BVM units. Including: Dolphin clips, Power & signal connectors, Opto couplers, Power supplies, Connection cables and Carrying case.
