B&K Precision 8524 Programmable DC Electronic Load 60V, 240A, 5000W

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent B&K Precision 8524 Programmable DC Electronic Load 60 V, 240 A, 5000 W
Enlarge Image

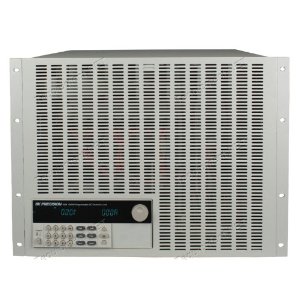

B&K Precision 8524
Request Quote Print Page
8524 Datasheet
The B&K Precision 8526 Programmable DC Electronic Load 500 V, 120 A, 5000 W can be used for testing and evaluating a variety of DC power sources. The wide operating ranges of up to 60 V and 120 A, flexible operating modes and excellent measurement accuracy makes the 8524 well suited for characterizing DC Power supplies, DC-DC Converters, batteries, fuel cells and solar cells. The load can operate in CC, CV, CR or CP mode while voltage/current or resistance/power values are measured and displayed in real time. Load terminals are isolated and floating. Extensive protection, including over temperature, over power, over voltage, over current and reverse polarity will help protect your valuable prototype.
B&K Precision 8524 Specs
CV Mode: 0.1 - 18 V
Regulation: 0.1 V to Vmax
CC Mode:: 0 - 24 A
Regulation: 0 - max Current
Current Measurement: 0 - 24 A
0 - max Current
Voltage Measurement: 0 - 18 V
0 - Vmax
B&K Precision 8524 Applications
  • DC power supply testing
  • Characterization of rechargeable batteries. A battery test mode is provided that will measure the ampere*hour (A*hr) characteristic of a battery
  • Fuel and solar cell test
  • High voltage applications
