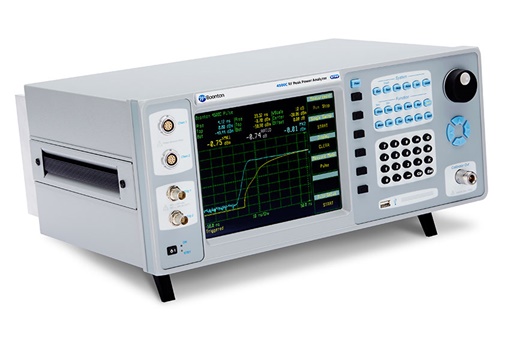

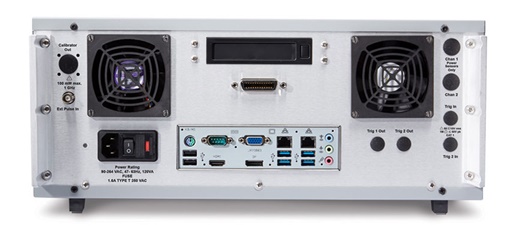

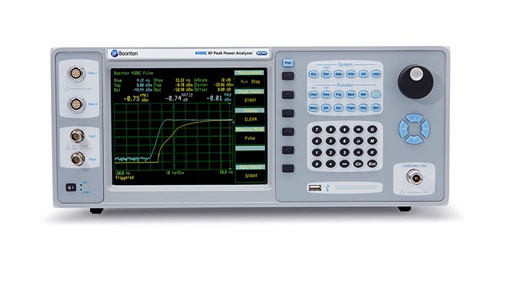

Boonton 4500C Peak Power Analyzer

• Real-Time Power Processing™.
• Ultrafast trace acquisition and refresh rate.
• One button push for 15 automated power and time measurements.
• Automatic peak-to-peak, delay-by-time and delay-by-events triggering.
• Multi-level, multi-function calibrator.
• Displays up to 4 measurement, 2 memory, and 1 math channel simultaneously.
• Continuous statistical analysis (optional).

Frequency Range	30 MHz to 40 GHz
Measurement Range	-60 dBm to +20 dBm
RF Channel Video Bandwidth	125 MHz
RF Channel Rise-Time	< 5 ns
Overall Accuracy	0.2 dB
Time Resolution	100 ps
Min Pulse Width / Max PRF	6 ns / 50 MHz
Channels	2 RF and 2 trigger

The Boonton 4500C RF Peak Power Analyzer is ideal for verification, designing, and troubleshooting of pulsed and noise-like signals used in commercial and military radar, electronic warfare (EW), wireless communications (e.g., LTE, LTE-A, and 5G), and consumer electronics (WLAN), as well as education and research applications.
