Keysight 8481B RF Power Sensor

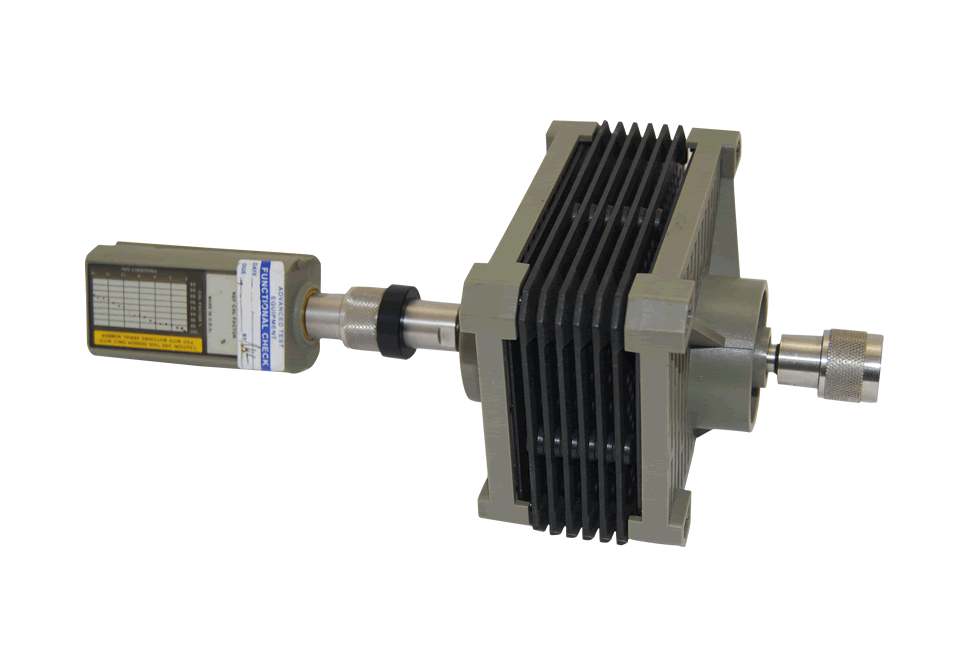

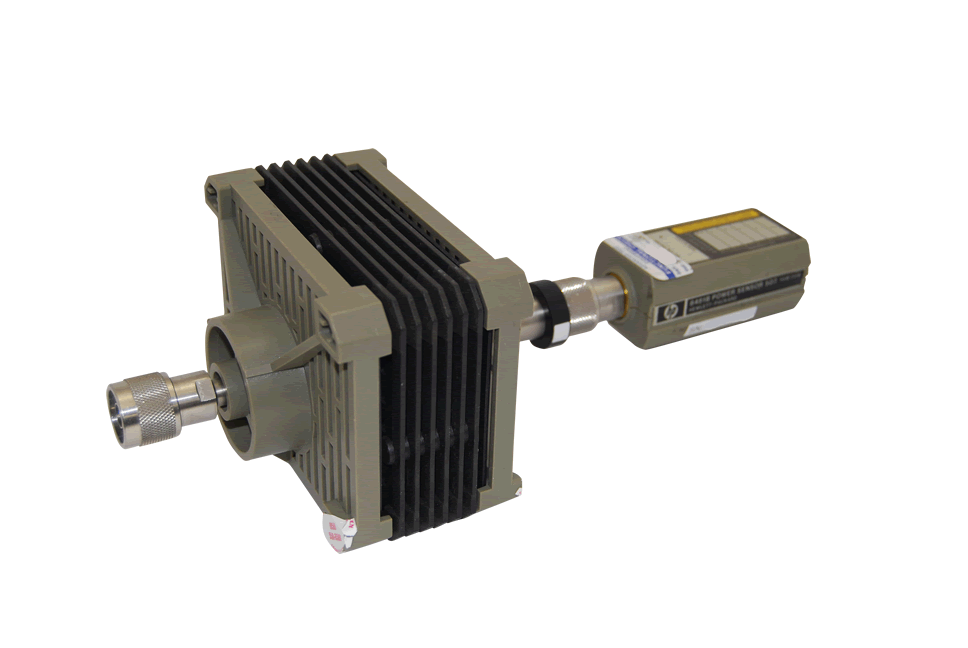

HP/Agilent 8481B High Power Sensor, 10 MHz - 18 GHz
Enlarge Image
HP/Agilent 8481B High Power Sensor, 10 MHz - 18 GHz HP/Agilent 8481B High Power Sensor, 10 MHz - 18 GHz HP/Agilent 8481B High Power Sensor, 10 MHz - 18 GHz
Keysight 8481B
Request Quote Print Page
Manual Specifications

The Keysight 8481B 10 MHz - 18 GHz RF Power Sensor is designed for use with the EPM and EPM-P series power meters, 70100A, E1416A and the 43X family power meters. These thermocouple and diode power sensors provide extraordinary accuracy, stability, and SWR over a wide range of frequencies (100 kHz to 110 GHz) and power levels (70 to +44 dBm).



Specifications:

100 mW Sensor 1 µW to 100 mW (30 to +20 dBm)
Frequency Range 10 MHz to 18 GHz
Maximum SWR

10 to 30 MHz: 1.40 Type-N (m)
30 to 50 MHz: 1.18
50 MHz to 2 GHz: 1.10
2 to 12.4 GHz: 1.18
12.4 to 18 GHz: 1.28

Connector Type Type-N (m)
