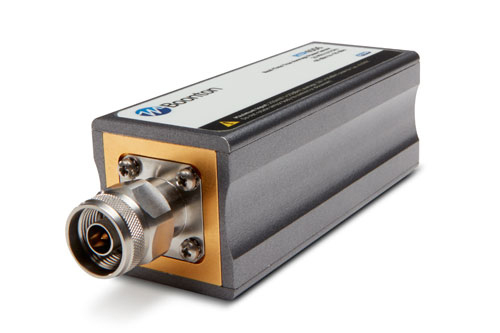

Boonton RTP4006 Real-Time True Average Power Sensor

The Boonton RTP4006 is a real-time true average power sensor that provides a dynamic range of 80 db and a frequency range of 6 GHz. Boonton power sensors are built with Real-Time Power Processing™ allowing RTP4006 units to deliver 100,000 measurements per second, leave no gaps in signal acquisition and zero measurement latency. In addition to Real-Time Power Processing™, RTP4006 instruments offer many features including pulse profiling, capture and measure of pulsed, CW and modulated signals, multi-channel capabilities and documentation tools. RTP4006 average power sensors units are ideal for precise, fast and reliable RF power measurements.

Product Info Related Products

RF Frequency Range	10 MHz to 6 GHz
Average Dynamic Range	-60 dBm to +20 dBm
Pulse Dynamic Range	-45 dBm to +20 dBm
Internal Trigger Range	-40 dBm to +20 dBm
Rise Time (fast/standard)	2 μs / 1 ms
Video Bandwidth	175 kHz / 350 Hz
RF Input	Type N, 50 Ω
VSWR	1.15 (0.01 GHz to 2 GHz) 1.20 (2.0 GHz to 6 GHz)

4 kHz to 6 GHz and 10 MHz to 6 GHz sensors.
-60 dBm to +20 dBm dynamic range.
175 kHz video bandwidth for pulse profiling.
Real-Time Power Processing™ technology for no gaps in signal acquisition and zero measurement latency.
100,000 measurements per second.
True average measurements with no modulation bandwidth limitations.
Pulse, Average, CW and Modulation modes.
Power Analyzer Suite advanced measurement and analysis software.
1 GSPS effective, 25 MSPS continuous sample rate.
Synchronized multi-channel measurements.

• EMI/EMC – Return loss measurements, conducted and radiated immunity, antenna efficiency.
• Automotive & Transportation – Collision avoidance, WiFi/LTE communications, telemetry.
• Scalar measurements, such as gain and return loss, on modulated and CW signals.
• Gated average power measurements for modulated signals.
• Communications – Amplifier efficiency, base station monitoring, compression point testing.

SKU: Boon-RTP4006
