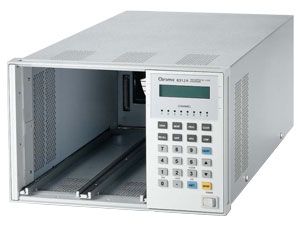

Chroma 6314A DC Electronic Load Mainframe 4 Slots
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Categories
DC Loads
Documents
Datasheet
Print
Email
The Chroma 6314A 1200W and 6312A 600W DC electronic load mainframes accept the user-installable 6310A series load modules for easy system configuration, and will mount in a 19" instrument rack. The 6314A holds up to four 63102A load modules, which will result in an 8-channel 100W/channel load with standard front-panel inputs. This makes it ideal for testing multiple output switching power supplies and multiple DC-DC converters. There are also higher wattage modules that may be mixed and matched for an even more versatile system. Additionally, the GO/NG output port is useful for UUT's pass/fail testing on an automated production line. All modules on the 6314A/6312A mainframe share a common GPIB address to synchronize and speed up the control of the load modules and the readback of data.
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Max Power: 200W, 100W×2(Dual), 30W & 250W, 300W, 600W, 1200W
Wide range 0~500V operating voltage
Compatibility between 6310 and 6310A
Up to eight channels in one mainframe, for testing multiple output SMPS
Parallel load modules up to 1200W for high current and power applications
Synchronization with multiple loads
Flexible CC, CR, CP and CV operation modes
Dynamic loading with speeds up to 20kHz
Fast response of 0.32mA/μs ~ 10A/μs slew rate
Minimum input resistance allows the load to sink high current at low voltages
Real time power supply load transient response simulation and output measurements
User programmable 100 sequences. Front panel input status for user-friendly operation
High/Low limits of testing parameters to test GO/NG
Digital I/O control
Over current protection (OCP) testing function
16-bit precision voltage and current measurement with dual-range
Remote sensing capability
Short circuit test
Self-test at power-on
Full Protection: OV, OC, OP, OT and reverse protection
USB, GPIB & RS-232 interfaces
Specifications
Module
Power
Operation Voltage
Current
63101A
200W
0~80V
40A
63103A
300W
0~80V
60A
63106A
600W
0~80V
120A
63112A
1200W
0~80V
240A
63102A
100W x 2
0~80V
20A(Dual Channels)
63107A
250W & 30W
0~80V
40A & 5A(Dual Channels)
63105A
300W
0~500V
10A
63108A
600W
0~500V
20A
Applications
Options
Accessories
Standards
Media
RELATED PRODUCTS

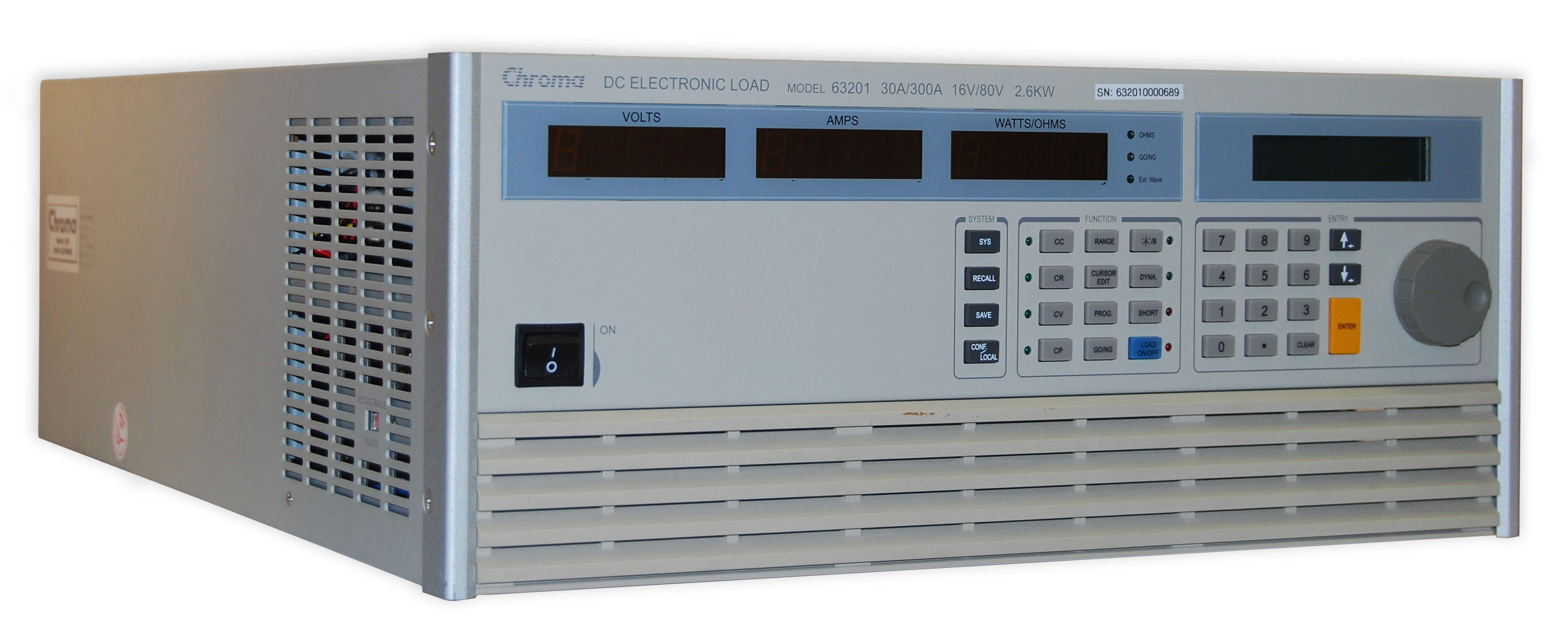

Chroma 63200A High Power DC Electronic Loads
NH Research 9300 High-Voltage Battery Test System | 1200 V, 100 kW – 2.4 MW
NH Research 4760 High Voltage Electronic DC Load
NH Research 4700 Series DC Loads
Megger Torkel 950 Battery Load Unit
Eagle Eye SLB-24/48-300/600 DC Load Bank

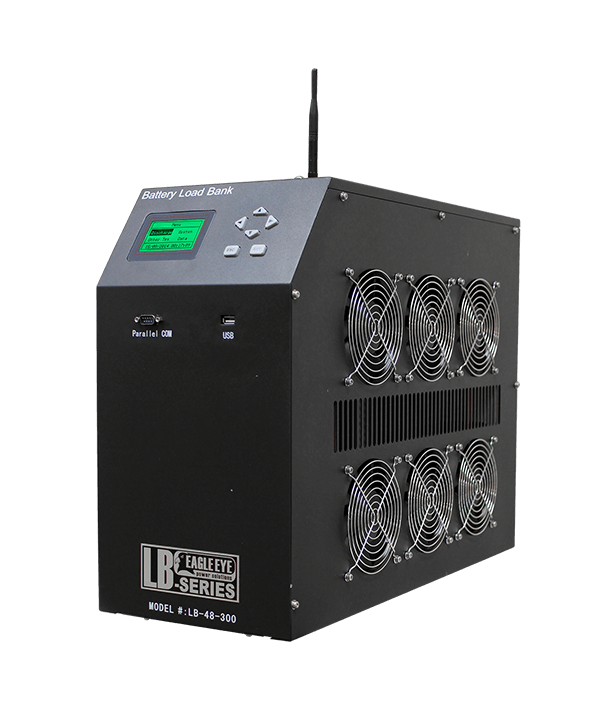

Eagle Eye LB-Series SMART DC Load Banks
NH Research 4760-36 High Voltage Electronic DC Load 1800 A, 36 kW
Chroma 63206 DC Electronic Load 80 V, 600 A, 10.4 kW
Chroma 63207 DC Electronic Load 80 V, 30 A, 1040 W
Chroma 63208 DC Electrical Load 80 V, 60 A, 1560 Watts
Chroma 63209 DC Electronic Load
Chroma 63212 Programmable DC Electronic Load

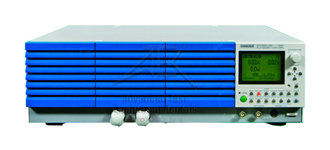

Kikusui PLZ1004W Multifunction DC Load
Intepro Systems ELR 91000-30 Electronic DC Load with Energy Recovery 1000V, 30A
NH Research 9210 Single Channel DC Test System
Adaptive Power Systems 4 Series Programmable Modular DC Electronic Loads

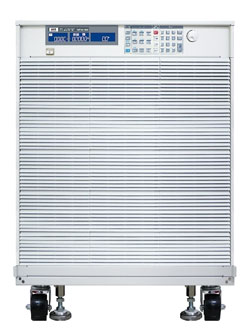

Adaptive Power Systems 5VP Series High Power Programmable DC Loads
Amrel LPL Series Low-Profile Programmable Electronic Loads
Aviation DCLB-28 28.5 VDC Load Bank, 300-1500 Amps
B&K Precision 8500 Series Programmable DC Electronic Loads
B&K Precision 8524 Programmable DC Electronic Load 60V, 240A, 5000W
B&K Precision 8622 Programmable DC Electronic Load 110/220V, 50/60Hz
Cannon Load Banks L-48-500 Load Bank 48 VDC, 500 A
Chroma 17011 Programmable Charge/Discharge ATS
