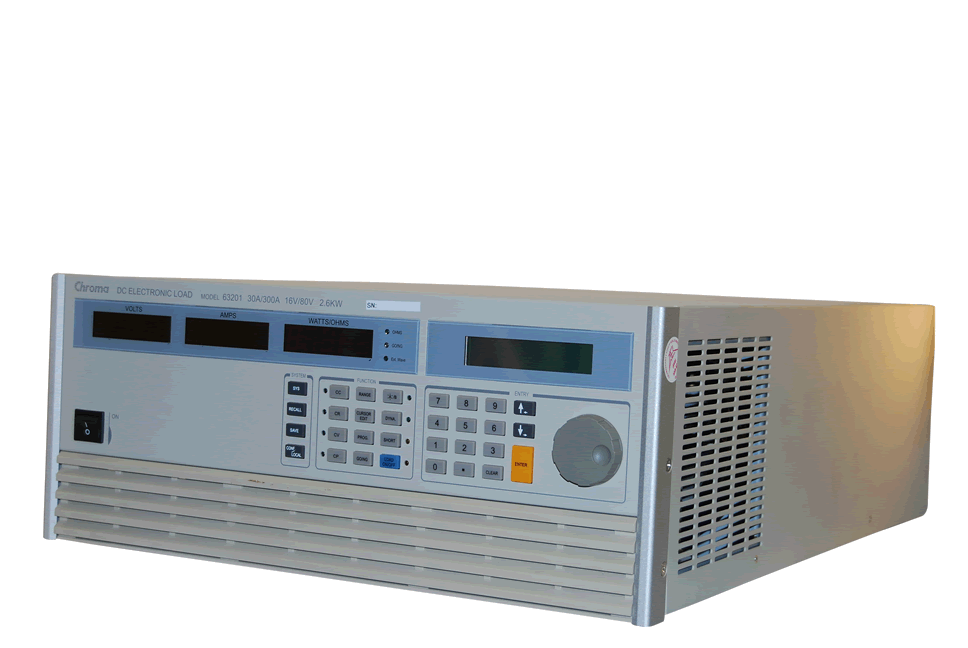

Chroma 63201 DC Electronic Load

The Chroma 63201 DC Electronic Load is designed for a wide variety of dc power conversion products including; DC power sources, battery chargers, server power supplies, dc-dc converters, batteries and many others. The high power rating, parallel and synchronization capabilities, and the ability to provide up to 2.7 times of rated power for short duty cycle loading make Chroma 63201 DC loads especially well-suited for high power applications such as switch-mode rectifiers and for discharging batteries packs and fuel cells.

Product Info Related Products

Power 260W 2600W
Current 0-30A 0-300A
Voltage 1-80V
Min. Operating voltage 1V@30A 1V@300A

Constant Current Mode

Range 0-30A 0-300A
Resolution 7.5mA 75mA
Accuracy 0.1%+0.1%F.S. 0.2%+0.1%F.S.

Constant Resistance Mode

Range 0.005-20 ohms 0.25-1000 ohms
Resolution 12bits 12bits
Accuracy*2 0.6mho+0.35% 9mho+0.1%
Accuracy*3(Vin>7V) 0.6mho+0.35% 0.012mho+0.35%

Constant Voltage Mode

Range 1-16V 1-80V
Resolution 4mV 20mV
Accuracy 0.05%+0.1%F.S. 0.05%+0.1%F.S.

Constant Power Mode

Range 0.6-260W 6-2600W
Resolution 7.5mW 75mW
Accuracy 0.5%+0.5%F.S. 0.5%+0.5%F.S.

Timing

T1&T2 0.025-10mS 1mS-30S
Resolution 1μS 1mS
Accuracy 1μS+100ppm 1mS+100ppm
Slew arte 5mA-1.25A/μS 50mA-12.5A/μS
Resolution 5mA/μS 50mA/μS

Current

Range 0-30A 0-300A
Resolution 7.5mA 75mA
Accuracy 0.4%FS

Voltage Read Back

Range 0-16V 0-80V
Resolution 15bits 15bits
Accuracy 0.05%+0.05%F.S.

Current Read Back

Range 0-30A 0-300A
Resolution 15bits 15bits
Accuracy 0.1%+0.1%F.S.

Power Read Back

Range 0-260W 0-2600W
Resolution 15bits 15bits
Accuracy 0.3%+0.3%F.S.

Short Circuit

Current 30A 300A
Size (mm) 440(W)x 177(H)x 644(D) (Cabinet)
Weight 35kg
Safety & EMC CE

SKU: CHRO-63201
