Chroma 63803 AC/DC Electronic Load
Enlarge Image
Chroma 63803
Request Quote Print Page
63803 Datasheet
Chroma's 63800 Series AC&DC Electronic Loads are designed for testing Uninterruptible Power Supplies(UPS), Off-Grid Inverters, AC sources and other power devices such as switches, circuit breakers, fuses and connectors.
Chroma 63803 Features
  • Parallel / 3-Phase Function with Multiple Units
  • CC, CR, CV, CP for DC Loading
  • Constant & Rectified Load Modes for AC Loading
  • Analog Voltage & Current Monitor
  • Timing Measurement for Battery, UPS, Fuse and Breaker tests
  • Short circuit simulation
Chroma 63803 Specs
Power Rating 1800W/3600W/4500W
Current Range Up to 45Arms
Voltage Range 50V to 350Vrms
Peak Current Up to 135A
Frequency Range 45 Hz to 440Hz, DC

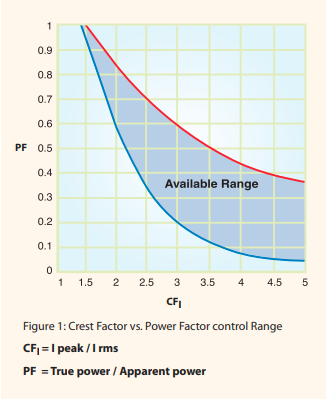

Crest Factor Range 1.414 to 5.0
